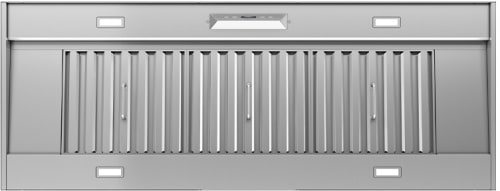

Zephyr Pro Monsoon II AK9358CS - 60 Inch Built-In Range Hood Insert

Image Disclaimer

Authorized

Dealer

Zephyr Pro Monsoon II

AK9358CS

60 Inch Built-In Range Hood Insert with 650 Max CFM, 5-Speeds, Electronic LCD Controls, LumiLight LED Lighting, TruHue™, Airflow Control Technology™, Pro Baffle Filters and ADA Compliant with Remote Control (Sold Separately)

Name: Zephyr Pro Monsoon II AK9358CS
Brand: Zephyr
SKU: AK9358CS
Price: 2099 USD

Be the first to write a review

Top Quality Store on Google

quick specs

Style: Standard Hood

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Width: 58 3/8 Inch

Depth: 22 3/4 Inch

Height: 13 Inch

WiFi: No

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Number of Fan Speeds: 5

Lights: LED

Delay Shut-Off: Yes

^$2,099^.00

MSRP: ~~$2,299.00~~

You save $200.00

Available

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Zephyr

Series: Pro Monsoon II

Model: AK9358CS

Appearance

Style: Standard Hood

Type: Cabinet Insert

Color: Stainless Steel

Glass Canopy: No

Mounting Type: Under Cabinet

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 58 3/8 Inch

Depth: 22 3/4 Inch

Height: 13 Inch

Smart

WiFi: No

Capacity

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Features

Number of Fan Speeds: 5

Filter Type: Baffle

Lighting Levels: 2

Lights: LED

Delay Shut-Off: Yes

Tunable Lighting: Yes

Technical Details

ADA Compliant: No

Amps: 5

Voltage: 120 Volts

Approved for Outdoor Use: No

GTIN

UPC: 646328013614

EAN: 0646328013614

Description
Specifications
Features
Reviews

Description

60 Inch Built-In Range Hood Insert with 650 Max CFM & 5-Speed Electronic LCD Controls
Zephyr's Pro Monsoon II Insert delivers professional-grade ventilation with a clean, built-in appearance that integrates seamlessly into custom cabinetry. Equipped with a powerful 650 CFM blower, customizable TruHue™ LED lighting, and advanced Airflow Control Technology™ (ACT™), this insert provides exceptional cooking performance, flexible installation, and intelligent safety features to complement today's luxury kitchens.

Specifications

General Specifications

Product Type:

Range Hood Insert

Series:

Pro Monsoon II

Color:

Stainless Steel

Dimensions

Nominal Width:

60"

Actual Width:

58.375"

Ventilation

Maximum Airflow:

650 CFM

Minimum Airflow:

200 CFM

Fan Speeds:

Maximum Noise Level:

7 Sones

Minimum Noise Level:

1 Sone

Blower Type:

Internal

Optional Dual Blower:

Yes

Maximum Airflow with Dual Blower:

1,200 CFM

Controls

Control Type:

Electronic LCD

Wireless Remote Control:

Included

Auto Delay-Off:

Yes

CleanAir Function:

Yes

TempGuard™:

Yes

Airflow Control Technology (ACT™):

Yes

Lighting

Lighting Type:

LumiLight LED

Number of Lights:

Light Wattage:

6 Watts Each

Dual-Level Lighting:

Yes

TruHue™ Adjustable Lighting:

Yes

Color Temperature:

2700K, 3000K, 3500K, 4000K, 5000K

Filters

Filter Type:

Professional Baffle Filters

Number of Filters:

Grease Collection Tray:

Yes

Dishwasher Safe Filters:

Yes

Ducting

Vertical Duct Size (Single Blower):

8" Round

Horizontal Duct Size (Single Blower):

8" Round

Vertical Duct Size (Dual Blower):

10" Round

Recirculating Capable:

Electrical Requirements

Volts:

120 V

Frequency:

60 Hz

Amperage (Single Blower):

5 Amps

Amperage (Dual Blower):

9 Amps

Installation

Installation Type:

Built-In Insert

Mounting Height:

24" - 36"

Trim Kit Included:

Yes

Certifications

ADA Compliant:

Yes (with optional remote accessory)

Warranty

Parts Warranty:

3 Years

Labor Warranty:

1 Year

Features

650 CFM Internal Blower

A powerful internal blower delivers up to 650 CFM of ventilation to effectively remove smoke, steam, grease, and cooking odors from your kitchen.

Airflow Control Technology™ (ACT™)

Exclusive ACT™ allows the maximum blower CFM to be reduced to meet local ventilation code requirements while maintaining reliable performance.

TruHue™ Adjustable LED Lighting

Customize your kitchen lighting with TruHue™ technology, allowing you to select color temperatures ranging from 2700K to 5000K for the perfect ambiance.

LumiLight LED Lighting

Energy-efficient LumiLight LED illumination provides bright, long-lasting lighting over the cooking surface while enhancing visibility during meal preparation.

Electronic LCD Controls

An intuitive LCD control panel offers convenient access to five fan speeds, lighting controls, timers, and additional ventilation functions.

TempGuard™ Protection

Built-in TempGuard™ technology automatically increases blower speed when excessive heat is detected, helping protect cabinetry and ventilation components.

CleanAir Function

The CleanAir function periodically refreshes the kitchen by automatically cycling the blower to improve air quality after cooking.

Auto Delay-Off

Automatically continues ventilation after cooking before shutting off, helping remove lingering smoke, steam, and odors.

Professional Baffle Filters

Commercial-style stainless steel baffle filters efficiently capture grease while remaining durable and dishwasher safe for easy maintenance.

Grease Collection Tray

A removable grease collection tray captures excess grease for simplified cleaning and improved hood performance.

Wireless Remote Control Included

Operate the hood from anywhere in the kitchen using the included wireless remote control for added convenience.

Optional Trim Kit Included

A trim kit is included to conceal uneven cabinet cutouts, creating a clean, professional built-in installation.

Key Features

Airflow Control Technology™ (ACT™)

Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.

LumiLight LED Lighting with TruHue™

A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.
