Description

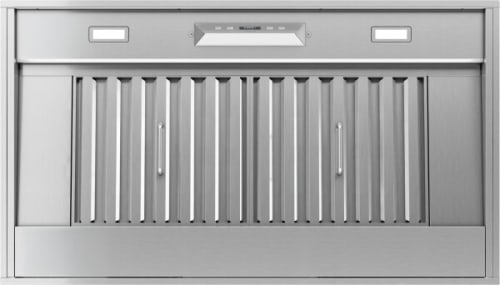

Zephyr Monsoon II Insert Range Hood
The Zephyr Monsoon II brings professional-grade ventilation and refined functionality to custom cabinetry and enclosure installations. Its included 650 CFM internal blower offers five speeds, while an optional dual internal blower kit increases performance up to 1,200 CFM. LumiLight LED lighting with TruHue™ lets you customize the color temperature from warm 2700K to crisp 5000K, while electronic LCD controls put ventilation and lighting settings within easy reach. Professional baffle filters with a grease collection tray simplify maintenance, and ACT™, TempGuard™, Auto Delay-Off and CleanAir Function add intelligent performance and convenience.
Specifications
Product Information
Collection:
Pro Collection
Installation Type:
Insert
Country of Origin:
Taiwan
Blower Performance
Internal Blower CFM:
200–650 CFM
ACT™ 390 CFM Setting:
200–390 CFM
ACT™ 290 CFM Setting:
200–290 CFM
Optional Dual Internal Blower CFM:
400–1,200 CFM
Optional Dual Blower Sones:
3–10
Optional Dual Internal Blower Kit:
PBD-1200B
Controls
Controls Type:
Electronic LCD
Lighting
Lighting Type:
LumiLight LED
Color Temperature:
2700K–5000K
Filters
Grease Filter Type:
Professional Baffle
Grease Collection Tray:
Yes
Compatible Baffle Filter Part Number:
50210055
Duct Specifications
Duct Discharge:
Vertical or Horizontal
Single Blower Vertical Duct Size:
8" Round
Single Blower Horizontal Duct Size:
8" Round
Dual Blower Vertical Duct Size:
10" Round
Electrical Specifications
Maximum Amperage with Single Blower:
5A
Maximum Amperage with Dual Blower:
9A
Installation
Mounting Height Above Cooktop:
24"–36"
Cutout Width without Trim:
46.625"
Cutout Depth without Trim:
22.75"
Cutout Width with Trim:
47"
Cutout Depth with Trim:
23.125"
Product Dimensions
Shipping Dimensions
Shipping Weight:
70.5 lbs
Optional Accessories
Wireless Remote Control Kit:
RC-0002
Dual Internal Blower Kit:
PBD-1200B
Make-Up Air Kit - Single Blower:
MUA008A
Make-Up Air Kit - Dual Blower:
MUA010A
Compliance
CEC Title 20 Compliant:
Yes
CEC Title 24 Compliant:
Yes
ADA-Compliant Operation:
Yes, with optional remote accessory
ENERGY STAR Certified:
No
Warranty
Features
650 CFM Internal Blower
- The included single internal blower delivers 200 to 650 CFM of ventilation performance with five speed levels.
Optional 1,200 CFM Dual Blower
- For higher-powered ventilation, the optional PBD-1200B dual internal blower kit increases airflow up to 1,200 CFM.
Airflow Control Technology™ (ACT™)
- Exclusive ACT™ technology allows installers to limit maximum blower output to 390 or 290 CFM to help meet local code requirements.
LumiLight LED Lighting with TruHue™
- Customize the hood lighting to complement your kitchen with selectable color temperatures from warm 2700K to crisp 5000K.
Electronic LCD Controls
- Convenient electronic LCD controls provide intuitive operation of the blower speeds, lighting and additional hood functions.
Professional Baffle Filters
- High-airflow professional baffle filters are dishwasher safe for convenient cleaning and long-lasting performance.
Grease Collection Tray
- A removable grease collection tray helps capture grease and makes routine hood maintenance easier.
TempGuard™
- TempGuard™ senses excessive heat and automatically adjusts the fan to high when the internal temperature exceeds 130°F.
Auto Delay-Off
- The Auto Delay-Off function keeps the hood running after cooking to help clear lingering smoke, steam and odors before automatically shutting off.
CleanAir Function
- CleanAir Function periodically operates the blower to help keep air circulating and maintain a fresher kitchen environment.
Optional Wireless Remote Control
- Compatible with the optional RC-0002 ADA-compliant wireless remote control for convenient operation from up to 15 feet away.
