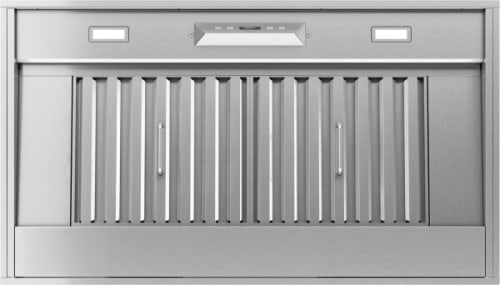

Zephyr Monsoon II Pro Collection AK9340CS - 42 Inch Built-In Insert Range Hood

Image Disclaimer

Zephyr Monsoon II Pro Collection AK9340CS

Authorized

Dealer

Zephyr Monsoon II Pro Collection

AK9340CS

Built-In Insert Range Hood with 650 CFM, 5 Speeds, ACT™, LumiLight LED Lighting with TruHue™, TempGuard™, Electronic Touch Controls, Professional Baffle Filters, Auto Delay Shut-Off and ADA Compliant Only with Purchase of Remote Control (Sold Separately): 42 Inch Width

Be the first to write a review

Top Quality Store on Google

quick specs

Style: Standard Hood

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Width: 40 3/8 Inch

Depth: 22 1/2 Inch

Height: 12 Inch

WiFi: No

Remote Control: Yes

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Number of Fan Speeds: 5

Lights: LED

Delay Shut-Off: Yes

Width: 42 Inch Width

36 Inch Width

AK9334CS

$1,499.00

42 Inch Width

AK9340CS

$1,599.00

^$1,599^.00

MSRP: ~~$1,799.00~~

You save $200.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Zephyr

Series: Monsoon II Pro Collection

Model: AK9340CS

Appearance

Style: Standard Hood

Type: Insert Liner

Color: Stainless Steel

Mounting Type: Wall Mount

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 40 3/8 Inch

Depth: 22 1/2 Inch

Height: 12 Inch

Smart

WiFi: No

Remote Control: Yes

Capacity

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Features

Number of Fan Speeds: 5

Filter Type: Baffle

Lighting Levels: 2

Lights: LED

Delay Shut-Off: Yes

Tunable Lighting: Yes

Technical Details

ADA Compliant: No

Energy Star Rated: No

Amps: 5

Voltage: 120 Volts

Approved for Outdoor Use: No

GTIN

UPC: 646328013584

EAN: 0646328013584

Description
Specifications
Features
Reviews

Description

Zephyr Monsoon II Insert Range Hood
The Zephyr Monsoon II brings professional-grade ventilation and refined functionality to custom cabinetry and enclosure installations. Its included 650 CFM internal blower offers five speeds, while an optional dual internal blower kit increases performance up to 1,200 CFM. LumiLight LED lighting with TruHue™ lets you customize the color temperature from warm 2700K to crisp 5000K, while electronic LCD controls put ventilation and lighting settings within easy reach. Professional baffle filters with a grease collection tray simplify maintenance, and ACT™, TempGuard™, Auto Delay-Off and CleanAir Function add intelligent performance and convenience.

Specifications

Product Information

Brand:

Zephyr

Model:

AK9340CS

Collection:

Pro Collection

Product Type:

Range Hood

Installation Type:

Insert

Color:

Stainless Steel

Nominal Width:

42"

UPC:

646328013584

For Outdoor Use:

Wi-Fi Connected:

Country of Origin:

Taiwan

Blower Performance

Blower Included:

Yes

Internal Blower CFM:

200–650 CFM

Blower Speeds:

Sones:

1–7

ACT™ 390 CFM Setting:

200–390 CFM

ACT™ 290 CFM Setting:

200–290 CFM

Optional Dual Internal Blower CFM:

400–1,200 CFM

Optional Dual Blower Sones:

3–10

Optional Dual Internal Blower Kit:

PBD-1200B

Controls

Controls Type:

Electronic LCD

Auto Delay-Off:

Yes

CleanAir Function:

Yes

TempGuard™:

Yes

Lighting

Lighting Type:

LumiLight LED

Lights Quantity:

Watts Per Bulb:

Lighting Levels:

TruHue™:

Yes

Color Temperature:

2700K–5000K

Filters

Grease Filter Type:

Professional Baffle

Baffle Filters:

Grease Collection Tray:

Yes

Compatible Baffle Filter Part Number:

50210055

Duct Specifications

Duct Discharge:

Vertical or Horizontal

Single Blower Vertical Duct Size:

8" Round

Single Blower Horizontal Duct Size:

8" Round

Dual Blower Vertical Duct Size:

10" Round

Electrical Specifications

Voltage:

120V

Frequency:

60Hz

Maximum Amperage with Single Blower:

Maximum Amperage with Dual Blower:

Installation

Mounting Height Above Cooktop:

24"–36"

Cutout Width without Trim:

40.625"

Cutout Depth without Trim:

22.75"

Cutout Width with Trim:

41"

Cutout Depth with Trim:

23.125"

Product Dimensions

Net Height:

12"

Net Width:

40.375"

Net Depth:

22.5"

Net Weight:

47.8 lbs

Shipping Dimensions

Shipping Height:

27.8"

Shipping Length:

43.5"

Shipping Width:

16.5"

Shipping Weight:

65.3 lbs

Optional Accessories

Wireless Remote Control Kit:

RC-0002

Dual Internal Blower Kit:

PBD-1200B

Make-Up Air Kit - Single Blower:

MUA008A

Make-Up Air Kit - Dual Blower:

MUA010A

Compliance

CEC Title 20 Compliant:

Yes

CEC Title 24 Compliant:

Yes

ADA Compliant:

ADA-Compliant Operation:

Yes, with optional remote accessory

ENERGY STAR Certified:

Warranty

Parts Warranty:

3 Years

Labor Warranty:

1 Year

Features

650 CFM Internal Blower

The included single internal blower delivers 200 to 650 CFM of ventilation performance with five speed levels.

Optional 1,200 CFM Dual Blower

For higher-powered ventilation, the optional PBD-1200B dual internal blower kit increases airflow up to 1,200 CFM.

Airflow Control Technology™ (ACT™)

Exclusive ACT™ technology allows installers to limit maximum blower output to 390 or 290 CFM to help meet local code requirements.

LumiLight LED Lighting with TruHue™

Customize the hood lighting to complement your kitchen with selectable color temperatures from warm 2700K to crisp 5000K.

Electronic LCD Controls

Convenient electronic LCD controls provide intuitive operation of the blower speeds, lighting and additional hood functions.

Professional Baffle Filters

High-airflow professional baffle filters are dishwasher safe for convenient cleaning and long-lasting performance.

Grease Collection Tray

A removable grease collection tray helps capture grease and makes routine hood maintenance easier.

TempGuard™

TempGuard™ senses excessive heat and automatically adjusts the fan to high when the internal temperature exceeds 130°F.

Auto Delay-Off

The Auto Delay-Off function keeps the hood running after cooking to help clear lingering smoke, steam and odors before automatically shutting off.

CleanAir Function

CleanAir Function periodically operates the blower to help keep air circulating and maintain a fresher kitchen environment.

Optional Wireless Remote Control

Compatible with the optional RC-0002 ADA-compliant wireless remote control for convenient operation from up to 15 feet away.
