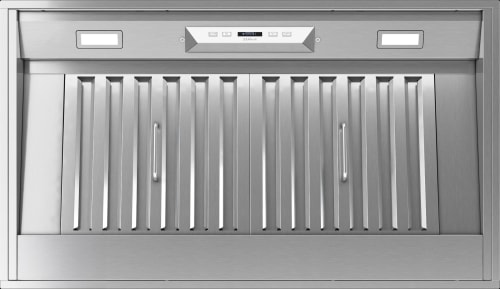

Zephyr Monsoon I AK9234CS - 36 Inch Cabinet Insert Liner

Image Disclaimer

Authorized

Dealer

Zephyr Monsoon I

AK9234CS

Cabinet Insert Liner with 650 CFM Internal Blower, 5 Fan Speeds, ACT™, TruHue™ LED Lighting, TempGuard™ and Pro Baffle Filters: 36 Inch Width

Be the first to write a review

Top Quality Store on Google

quick specs

Style: Standard Hood

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Width: 34 5/16 Inch

Depth: 19 5/16 Inch

Height: 12 Inch

WiFi: No

Remote Control: Yes

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Number of Fan Speeds: 5

Width: 36 Inch Width

30 Inch Width

AK9228CS

$1,299.00

36 Inch Width

AK9234CS

$1,399.00

^$1,399^.00

MSRP: ~~$1,499.00~~

You save $100.00

Available

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Zephyr

Series: Monsoon I

Model: AK9234CS

Appearance

Style: Standard Hood

Type: Cabinet Insert

Color: Stainless Steel

Mounting Type: Under Cabinet

Venting Type: Ducted

Blower Included: Yes

Blower Type: Internal

Dimensions

Width: 34 5/16 Inch

Depth: 19 5/16 Inch

Height: 12 Inch

Smart

WiFi: No

Remote Control: Yes

Capacity

CFM: 650 CFM

Permanent Air Flow Reduction: Yes

Noise Level: 7 Sones

Duct Size: 8 Inch

Features

Number of Fan Speeds: 5

Filter Type: Baffle

Tunable Lighting: Yes

Technical Details

ADA Compliant: Yes

Amps: 5

Voltage: 120 Volts

GTIN

UPC: 646328013546

Description
Specifications
Features
Reviews

Description

Cabinet Insert Liner with 5-Speed 650 CFM Internal Blower
Complete your custom kitchen design with the powerful ventilation and thoughtful details of the Zephyr Monsoon I Insert. Its included 650 CFM blower and five-speed electronic LCD controls help you handle everyday cooking, while dual-level LumiLight LEDs with TruHue™ let you coordinate the lighting with your kitchen. Airflow Control Technology™ allows installers to limit single-blower airflow, TempGuard™ responds automatically to excessive heat, and Auto Delay-Off and the CleanAir Function help keep the cooking area fresh. Dishwasher-safe pro baffle filters and an included removable trim kit simplify maintenance and finishing, while an optional wireless remote enables ADA-compliant operation. For greater ventilation power, the 36-, 42- and 48-inch models accommodate an optional 1,200 CFM dual-blower kit.

Specifications

Product Details

Product Status:

Active

Brand:

Zephyr

Model Number:

AK9234CS

Series:

Monsoon I

Collection:

Core Collection

UPC:

646328013546

Category:

Range Hood

Installation Type:

Insert

Outdoor Use:

Color:

Stainless Steel

Controls:

Electronic LCD

Blower Speeds:

Trim Kit:

Included, Removable

Wi-Fi Connected:

Country of Origin:

Taiwan

CEC Title 20 Compliant:

Yes

CEC Title 24 Compliant:

Yes

ADA Compliant:

Yes, with Optional Remote Control

Energy Star Certified:

Blower Performance

Blower Included:

Yes

Included Blower Type:

Single Internal Blower

Included Blower Airflow:

200–650 CFM

Included Blower Sound Level:

1–7 Sones

ACT™ Maximum Airflow Settings:

390 or 290 CFM

ACT™ Compatibility:

Single Blower Only

Optional Dual-Blower Airflow:

400–1,200 CFM

Optional Dual-Blower Sound Level:

3–10 Sones

TempGuard™:

Yes

Auto Delay-Off:

Yes

CleanAir Function:

Yes

Recirculating Option:

Lighting

Lighting Type:

LumiLight LED with TruHue™

Number of Lights:

Wattage per Light:

6 Watts

Lighting Levels:

Color Temperature Options:

2700K, 3000K, 3500K, 4000K, 5000K

Filtration

Grease Filter Type:

Pro Baffle

Number of Filters:

Dishwasher-Safe Filters:

Yes

Grease Collection Tray:

Yes

Replacement Filter Part Number:

50210039

Duct Specifications

Duct Discharge:

Vertical or Horizontal with Single Blower

Vertical Single-Blower Duct Size:

8" Round

Horizontal Single-Blower Duct Size:

8" Round

Vertical Dual-Blower Duct Size:

10" Round

Horizontal Dual-Blower Ducting:

Not Available

Mounting Height Above Cooktop:

24–36"

Electrical Specifications

Voltage:

120 Volts

Frequency:

60 Hz

Maximum Amperage with Single Blower:

5 Amps

Maximum Amperage with Dual Blower:

9 Amps

Product Dimensions

Height:

12"

Width without Trim Kit:

34-5/16"

Width with Trim Kit:

35-1/2"

Nominal Width:

36"

Depth without Trim Kit:

19-5/16"

Depth with Trim Kit:

20-1/2"

Net Weight:

41 lbs.

Cutout Dimensions

Cutout Width without Trim Kit:

34-5/8"

Cutout Depth without Trim Kit:

19-1/2"

Cutout Width with Trim Kit:

35"

Cutout Depth with Trim Kit:

19-7/8"

Optional Accessories

Wireless Remote Control Kit:

RC-0002

Dual Internal Blower Kit:

PBD-1200B

Make-Up Air Kit for Single Blower:

MUA008A

Make-Up Air Kit for Dual Blower:

MUA010A

Warranty

Parts Warranty:

3 Years

Labor Warranty:

1 Year

Shipping Dimensions

Shipping Height:

36.4"

Shipping Length:

37.5"

Shipping Width:

16.5"

Shipping Weight:

56.4 lbs.

Features

Powerful 650 CFM Blower

The included internal blower delivers airflow from 200 to 650 CFM, with five speed levels to suit your cooking needs.

Optional 1,200 CFM Blower Upgrade

The 36-, 42- and 48-inch models accommodate the optional PBD-1200B dual-blower kit for airflow up to 1,200 CFM. This upgrade is not available for the 30-inch model.

Airflow Control Technology™

ACT™ allows the installer to limit maximum single-blower airflow to 390 or 290 CFM to help meet local code requirements. ACT™ is available only with the single-blower configuration.

Electronic LCD Controls

Intuitive electronic LCD controls provide convenient access to blower speeds, lighting, Auto Delay-Off and the CleanAir Function.

LumiLight LED Lighting with TruHue™

Dual-level LumiLight LEDs illuminate the cooking surface, while TruHue™ lets you select a color temperature from a warm 2700K to a cool 5000K to coordinate with your kitchen lighting.

TempGuard™

TempGuard™ senses excessive heat and automatically adjusts the blower to high when the internal temperature exceeds 130°F.

Professional Baffle Filters

High-airflow pro baffle filters capture airborne grease while supporting powerful ventilation performance. The durable filters are dishwasher safe for convenient cleaning.

Auto Delay-Off

Auto Delay-Off keeps the hood operating briefly before automatically shutting it off to help clear lingering smoke and odors.

CleanAir Function

The CleanAir Function periodically activates the blower to help refresh the cooking area between meals.

Included Removable Trim Kit

The included removable trim kit installs around the perimeter of the insert to help conceal uneven gaps in the cabinet cutout and provide a finished appearance.

Flexible Ducting Options

Vertical or horizontal ducting provides installation flexibility with the included single blower. Models equipped with the optional dual-blower kit require vertical ducting.

Optional Wireless Remote Control

The optional RC-0002 wireless RF remote provides convenient control from up to 15 feet away and enables ADA-compliant operation. A magnetic back allows easy storage on a compatible metal surface.

Key Features

Airflow Control Technology™ (ACT™)

Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.

LumiLight LED Lighting with TruHue™

A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.

TempGuard™
