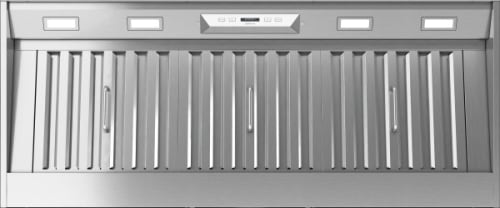

Zephyr Monsoon I AK9246CS - 48 Inch Cabinet Insert Liner
Zephyr Monsoon I AK9246CS - 48 Inch Cabinet Insert Liner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Monsoon I AK9246CS
Authorized
Dealer

Zephyr Monsoon I
AK9246CS
Cabinet Insert Liner with 650 CFM Internal Blower, 5 Fan Speeds, ACT™, TruHue™ LED Lighting, TempGuard™ and Pro Baffle Filters: 48 Inch Width

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 46 5/16 Inch
Depth: 19 5/16 Inch
Height: 12 Inch
WiFi: No
Remote Control: Yes
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 5
View more
Width: 48 Inch Width
30 Inch Width
30 Inch Width
AK9228CS
$1,299.00
36 Inch Width
36 Inch Width
AK9234CS
$1,399.00
42 Inch Width
42 Inch Width
AK9240CS
$1,499.00
48 Inch Width
48 Inch Width
AK9246CS
$1,699.00
In stock
$1,699.00
MSRP: $1,799.00
You save $100.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Zephyr
Series: Monsoon I
Model: AK9246CS
Appearance
Style: Standard Hood
Type: Cabinet Insert
Color: Stainless Steel
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 46 5/16 Inch
Depth: 19 5/16 Inch
Height: 12 Inch
Smart
WiFi: No
Remote Control: Yes
Capacity
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 646328013560
Are you a Trade Pro? Join Now

Description

Cabinet Insert Liner with 5-Speed 650 CFM Internal Blower
Complete your custom kitchen design with the powerful ventilation and thoughtful details of the Zephyr Monsoon I Insert. Its included 650 CFM blower and five-speed electronic LCD controls help you handle everyday cooking, while dual-level LumiLight LEDs with TruHue™ let you coordinate the lighting with your kitchen. Airflow Control Technology™ allows installers to limit single-blower airflow, TempGuard™ responds automatically to excessive heat, and Auto Delay-Off and the CleanAir Function help keep the cooking area fresh. Dishwasher-safe pro baffle filters and an included removable trim kit simplify maintenance and finishing, while an optional wireless remote enables ADA-compliant operation. For greater ventilation power, the 36-, 42- and 48-inch models accommodate an optional 1,200 CFM dual-blower kit.

Specifications

Product Details
Product Status:
Active
Brand:
Zephyr
Model Number:
AK9246CS
Series:
Monsoon I
Collection:
Core Collection
UPC:
646328013560
Category:
Range Hood
Installation Type:
Insert
Outdoor Use:
No
Color:
Stainless Steel
Controls:
Electronic LCD
Blower Speeds:
5
Trim Kit:
Included, Removable
Wi-Fi Connected:
No
Country of Origin:
Taiwan
CEC Title 20 Compliant:
Yes
CEC Title 24 Compliant:
Yes
ADA Compliant:
Yes, with Optional Remote Control
Blower Performance
Blower Included:
Yes
Included Blower Type:
Single Internal Blower
Included Blower Airflow:
200–650 CFM
Included Blower Sound Level:
1–7 Sones
ACT™ Maximum Airflow Settings:
390 or 290 CFM
ACT™ Compatibility:
Single Blower Only
Optional Dual-Blower Airflow:
400–1,200 CFM
Optional Dual-Blower Sound Level:
3–10 Sones
TempGuard™:
Yes
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Recirculating Option:
No
Lighting
Lighting Type:
LumiLight LED with TruHue™
Number of Lights:
4
Wattage per Light:
6 Watts
Lighting Levels:
2
Color Temperature Options:
2700K, 3000K, 3500K, 4000K, 5000K
Filtration
Grease Filter Type:
Pro Baffle
Number of Filters:
3
Dishwasher-Safe Filters:
Yes
Grease Collection Tray:
Yes
Replacement Filter Part Number:
50210039
Duct Specifications
Duct Discharge:
Vertical or Horizontal with Single Blower
Vertical Single-Blower Duct Size:
8" Round
Horizontal Single-Blower Duct Size:
8" Round
Vertical Dual-Blower Duct Size:
10" Round
Horizontal Dual-Blower Ducting:
Not Available
Mounting Height Above Cooktop:
24–36"
Electrical Specifications
Voltage:
120 Volts
Frequency:
60 Hz
Maximum Amperage with Single Blower:
5 Amps
Maximum Amperage with Dual Blower:
9 Amps
Product Dimensions
Height:
12"
Width without Trim Kit:
46-5/16"
Width with Trim Kit:
47-1/2"
Nominal Width:
48"
Depth without Trim Kit:
19-5/16"
Depth with Trim Kit:
20-1/2"
Net Weight:
46.5 lbs.
Cutout Dimensions
Cutout Width without Trim Kit:
46-5/8"
Cutout Depth without Trim Kit:
19-1/2"
Cutout Width with Trim Kit:
47"
Cutout Depth with Trim Kit:
19-7/8"
Optional Accessories
Wireless Remote Control Kit:
RC-0002
Dual Internal Blower Kit:
PBD-1200B
Make-Up Air Kit for Single Blower:
MUA008A
Make-Up Air Kit for Dual Blower:
MUA010A
Warranty
Parts Warranty:
3 Years
Labor Warranty:
1 Year
Shipping Dimensions
Shipping Height:
24.6"
Shipping Length:
49.5"
Shipping Width:
16.5"
Shipping Weight:
63.5 lbs.

Features

Powerful 650 CFM Blower
  • The included internal blower delivers airflow from 200 to 650 CFM, with five speed levels to suit your cooking needs.
Optional 1,200 CFM Blower Upgrade
  • The 36-, 42- and 48-inch models accommodate the optional PBD-1200B dual-blower kit for airflow up to 1,200 CFM. This upgrade is not available for the 30-inch model.
Airflow Control Technology™
  • ACT™ allows the installer to limit maximum single-blower airflow to 390 or 290 CFM to help meet local code requirements. ACT™ is available only with the single-blower configuration.
Electronic LCD Controls
  • Intuitive electronic LCD controls provide convenient access to blower speeds, lighting, Auto Delay-Off and the CleanAir Function.
LumiLight LED Lighting with TruHue™
  • Dual-level LumiLight LEDs illuminate the cooking surface, while TruHue™ lets you select a color temperature from a warm 2700K to a cool 5000K to coordinate with your kitchen lighting.
TempGuard™
  • TempGuard™ senses excessive heat and automatically adjusts the blower to high when the internal temperature exceeds 130°F.
Professional Baffle Filters
  • High-airflow pro baffle filters capture airborne grease while supporting powerful ventilation performance. The durable filters are dishwasher safe for convenient cleaning.
Auto Delay-Off
  • Auto Delay-Off keeps the hood operating briefly before automatically shutting it off to help clear lingering smoke and odors.
CleanAir Function
  • The CleanAir Function periodically activates the blower to help refresh the cooking area between meals.
Included Removable Trim Kit
  • The included removable trim kit installs around the perimeter of the insert to help conceal uneven gaps in the cabinet cutout and provide a finished appearance.
Flexible Ducting Options
  • Vertical or horizontal ducting provides installation flexibility with the included single blower. Models equipped with the optional dual-blower kit require vertical ducting.
Optional Wireless Remote Control
  • The optional RC-0002 wireless RF remote provides convenient control from up to 15 feet away and enables ADA-compliant operation. A magnetic back allows easy storage on a compatible metal surface.
Key Features
Airflow Control Technology™ (ACT™)
Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting with TruHue™
A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.






TempGuard™
TempGuard™ senses excessive heat and automatically adjusts the blower to high when the internal temperature exceeds 130°F.
