Description

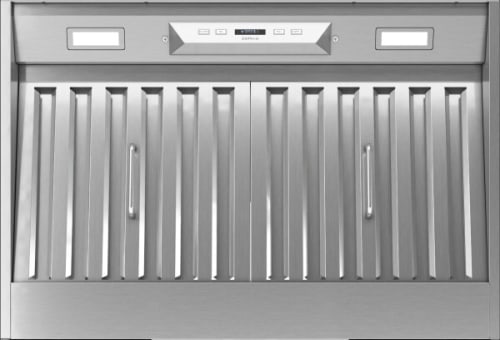

Cabinet Insert Liner with 5-Speed 650 CFM Internal Blower

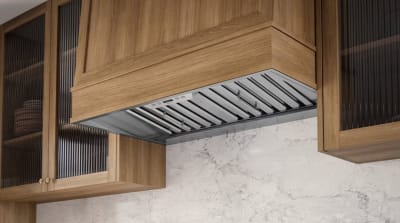

Complete your custom kitchen design with the powerful ventilation and thoughtful details of the Zephyr Monsoon I Insert. Its included 650 CFM blower and five-speed electronic LCD controls help you handle everyday cooking, while dual-level LumiLight LEDs with TruHue™ let you coordinate the lighting with your kitchen. Airflow Control Technology™ allows installers to limit single-blower airflow, TempGuard™ responds automatically to excessive heat, and Auto Delay-Off and the CleanAir Function help keep the cooking area fresh. Dishwasher-safe pro baffle filters and an included removable trim kit simplify maintenance and finishing, while an optional wireless remote enables ADA-compliant operation. For greater ventilation power, the 36-, 42- and 48-inch models accommodate an optional 1,200 CFM dual-blower kit.
Specifications
Product Details
Collection:
Core Collection
Installation Type:
Insert
Trim Kit:
Included, Removable
Country of Origin:
Taiwan
CEC Title 20 Compliant:
Yes
CEC Title 24 Compliant:
Yes
ADA Compliant:
Yes, with Optional Remote Control
Blower Performance
Included Blower Type:
Single Internal Blower
Included Blower Airflow:
200–650 CFM
Included Blower Sound Level:
1–7 Sones
ACT™ Maximum Airflow Settings:
390 or 290 CFM
Dual-Blower Upgrade:
Not Available
Lighting
Lighting Type:
LumiLight LED with TruHue™
Wattage per Light:
6 Watts
Color Temperature Options:
2700K, 3000K, 3500K, 4000K, 5000K
Filtration
Grease Filter Type:
Pro Baffle
Dishwasher-Safe Filters:
Yes
Grease Collection Tray:
Yes
Replacement Filter Part Number:
50210039
Duct Specifications
Duct Discharge:
Vertical or Horizontal
Vertical Duct Size:
8" Round
Horizontal Duct Size:
8" Round
Mounting Height Above Cooktop:
24–36"
Electrical Specifications
Product Dimensions
Width without Trim Kit:
28-3/8"
Width with Trim Kit:
29-1/2"
Depth without Trim Kit:
19-5/16"
Depth with Trim Kit:
20-1/2"
Cutout Dimensions
Cutout Width without Trim Kit:
28-5/8"
Cutout Depth without Trim Kit:
19-1/2"
Cutout Width with Trim Kit:
29"
Cutout Depth with Trim Kit:
19-7/8"
Optional Accessories
Wireless Remote Control Kit:
RC-0002
Warranty
Shipping Dimensions
Shipping Weight:
47.8 lbs.
Features
Powerful 650 CFM Blower
- The included internal blower delivers airflow from 200 to 650 CFM, with five speed levels to suit your cooking needs.
Optional 1,200 CFM Blower Upgrade
- The 36-, 42- and 48-inch models accommodate the optional PBD-1200B dual-blower kit for airflow up to 1,200 CFM. This upgrade is not available for the 30-inch model.
Airflow Control Technology™
- ACT™ allows the installer to limit maximum single-blower airflow to 390 or 290 CFM to help meet local code requirements. ACT™ is available only with the single-blower configuration.
Electronic LCD Controls
- Intuitive electronic LCD controls provide convenient access to blower speeds, lighting, Auto Delay-Off and the CleanAir Function.
LumiLight LED Lighting with TruHue™
- Dual-level LumiLight LEDs illuminate the cooking surface, while TruHue™ lets you select a color temperature from a warm 2700K to a cool 5000K to coordinate with your kitchen lighting.
TempGuard™
- TempGuard™ senses excessive heat and automatically adjusts the blower to high when the internal temperature exceeds 130°F.
Professional Baffle Filters
- High-airflow pro baffle filters capture airborne grease while supporting powerful ventilation performance. The durable filters are dishwasher safe for convenient cleaning.
Auto Delay-Off
- Auto Delay-Off keeps the hood operating briefly before automatically shutting it off to help clear lingering smoke and odors.
CleanAir Function
- The CleanAir Function periodically activates the blower to help refresh the cooking area between meals.
Included Removable Trim Kit
- The included removable trim kit installs around the perimeter of the insert to help conceal uneven gaps in the cabinet cutout and provide a finished appearance.
Flexible Ducting Options
- Vertical or horizontal ducting provides installation flexibility with the included single blower. Models equipped with the optional dual-blower kit require vertical ducting.
Optional Wireless Remote Control
- The optional RC-0002 wireless RF remote provides convenient control from up to 15 feet away and enables ADA-compliant operation. A magnetic back allows easy storage on a compatible metal surface.
Key Features
Airflow Control Technology™ (ACT™)
Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting with TruHue™
A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.
TempGuard™
TempGuard™ senses excessive heat and automatically adjusts the blower to high when the internal temperature exceeds 130°F.
