Description

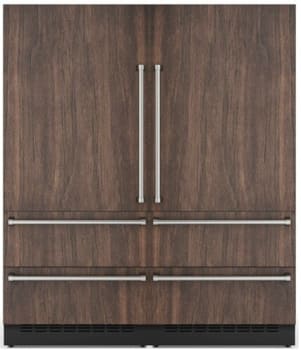

36 Inch Panel Ready Bottom Freezer Smart Refrigerator with 19.4 cu. ft. Total Capacity
Experience luxury refrigeration with the Viking 36 Inch Panel Ready Bottom Freezer Refrigerator, designed to seamlessly blend into your kitchen cabinetry for a sleek, custom look. Offering 19.4 cubic feet of total storage, this model features a convenient bottom freezer that provides easy access to your frozen essentials while maximizing fresh food storage at eye level. Equipped with advanced water and air filtration systems, dual ice makers, and smart technology, it ensures your food stays fresh, filtered, and effortlessly accessible. ENERGY STAR® certified, it combines high performance with energy efficiency for sustainable, reliable kitchen innovation.
Specifications
Dimensions
Height:
83 1/2" (212.1 cm) min. to 84 1/2" (214.6 cm) max. (overall height from bottom)
Depth from Rear:
22" (56.0 cm) to front edge of side trim
Overall Depth:
24" (61.0 cm) to front of top grille
Cutout Width:
36" (91.4 cm)
Cutout Height:
84" (213.5 cm) min. to 84 1/16" (213.5 cm) max.
Cutout Depth:
24" (61.0 cm) plus panel thickness
Electrical Requirements
Amperage:
9.9 amps maximum
Power Cord:
3-wire cord with grounded 3-prong plug attached
Dedicated Circuit:
15 amp
Panel Weight Limit
Maximum Panel Weight:
Fresh Food Door: 45 lbs. (20.4 kg), Freezer Drawer Panel: 20 lbs. (9.0 kg)
Water Requirements
Inlet Water:
1/4” copper tubing inlet waterline
Water Pressure:
Minimum 20 psi, Maximum 120 psi
Capacity
Total Capacity:
19.4 cu. ft. (549.3 L)
Installation Type
Built-In:
Yes (Integrated design)
Dispenser
Ice Dispenser:
No external dispenser; internal ice maker and storage only
Filtration
Water Filter:
Included, Replaceable
Air Filter:
Included, Replaceable
Features
Smart Features:
WiFi-enabled, App Control, Alerts and Notifications
Shelves:
Adjustable Glass Shelves with Spillproof Plus™ technology
Temperature Management:
Advanced system for consistent cooling
Certifications
ENERGY STAR® Certified:
Yes
Approximate Shipping Weight
Features
Uniform Air Circulation
- Maintains consistent temperatures throughout the refrigerator to ensure food stored in all compartments stays fresher longer.
Precise Temperature Control
- Keeps temperature stable within 1ºF, preserving food quality and safety with advanced electronic controls.
Quiet Dual Compressor System
- Extremely quiet dual compressors located at the bottom enable full product integration without noise disruption.
Wide Temperature Range
- Refrigerator compartment operates between 34°F (1°C) to 45°F (7°C), while freezer compartment ranges from 9°F (-13°C) to -9°F (-23°C).
Convertible Bottom Drawer
- Bottom freezer drawer can convert to a refrigerator or fresh food space, providing flexible storage options.
Antibacterial Stainless Steel Crisper Drawers
- Micro-peened stainless steel surfaces resist bacteria and germs, promoting hygiene and maintaining high food quality.
Easy-Clean Drawer Design
- Inside corners of crisper drawers feature a radius for effortless cleaning and maintenance.
Cooler Crisper Operation
- Crisper drawers operate 2°F to 3°F cooler than the rest of the refrigerator for optimal produce freshness.
Soft-Close Crisper Drawers
- State-of-the-art closing system ensures crisper drawers close smoothly and quietly every time.
PlasmaCluster™ Ion Air Purifier
- Exclusive advanced ion technology eliminates airborne bacteria, mold, and odors to keep the interior air clean and fresh.
Intuitive Touch Control Interface
- Allows easy personalization of temperature and mode settings for user convenience.
Special Modes
- Includes Max Refrigerator, Max Freezer, Max Ice, Vacation, Sabbath, and Triple Mode Convertible Drawer for versatile usage.
Energy-Efficient LED Lighting
- Side and top-mounted LEDs provide bright, even illumination with minimal energy consumption.
Dual-Size Ice Maker
- Easily switch between medium and large ice cubes to suit different beverage needs.
Max Ice Mode
- Temporarily boosts ice production for 24 hours to meet high demand during entertaining or gatherings.
Water Filtration System
- Delivers pure, clean water to the ice makers.
Easy Lift Shelf Position System
- Patented shelving mechanism offers smooth, flexible adjustments to maximize storage space.
Adjustable Glass Shelves
- Two adjustable tempered glass shelves and one fixed glass shelf provide customizable storage solutions.
Adjustable Door Bins
- Three adjustable door bins accommodate various container sizes and increase organizational flexibility.
Fully Articulating Hinge
- Proprietary hinge with three-dimensional adjustability ensures a perfect fit and smooth door operation for integrated installations.
Hinge Damper
- Enhances door movement with smooth opening and closing, preventing slamming or sticking.
Panel Ready Design
- Accepts custom cabinetry panels or Viking Professional and RVL Door Panel Kits for a seamless built-in look.
BlueZone® Fresh Preservation Technology
- Utilizes advanced purification to remove ethylene gas, significantly extending the life of your fruits and vegetables.
Spillproof Plus™ Shelves
- Nano-coated shelves create an invisible barrier that contains spills, simplifying cleanup and protecting the refrigerator interior.
