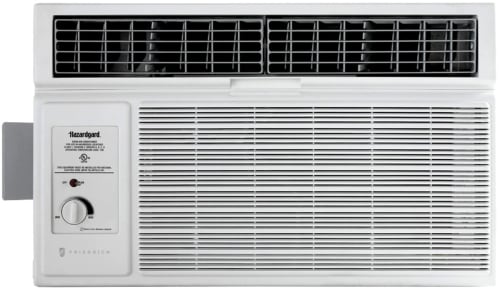

Friedrich Hazardgard Series HCM20A30A - 20,000 BTU Room Air Conditioner
Friedrich Hazardgard Series HCM20A30A - 20,000 BTU Room Air Conditioner
Friedrich Hazardgard Series HCM20A30A - 20,000 BTU Room Air Conditioner

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Friedrich Hazardgard Series HCM20A30A
Authorized
Dealer

Friedrich Hazardgard Series
HCM20A30A
20,000 BTU Room Air Conditioner with Direct Wire Connection, Sealed Refrigeration System, 22 Gauge Steel Cabinet, Fan Motor, On/Off Switch, and R32 Refrigerant

Top Quality Store on Google
quick specs
Width: 25 93/100 Inch
Depth: 27 37/100 Inch
Height: 17 93/100 Inch
Cooling Capacity (BTU): 20,000 BTU
CFM Room Circulation: 375 CFM
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Chassis Type: Slide Out
Control Type: Rotary
Remote Control Included: No
View more
BTU Capacity: 20,000 BTU
15,000 BTU
15,000 BTU
HCS15A30A
$3,129.00
20,000 BTU
20,000 BTU
HCM20A30A
$3,679.00
21,000 BTU
21,000 BTU
HCM20A50A
$4,899.00
24,000 BTU
24,000 BTU
HCM24A30A
$4,239.00
$3,679.00
OR
FREE Delivery Available
Have questions? Chat with us!
Product Information
Brand: Friedrich
Series: Hazardgard Series
Model: HCM20A30A
Dimensions
Width: 25 93/100 Inch
Depth: 27 37/100 Inch
Height: 17 93/100 Inch
Capacity
Cooling Capacity (BTU): 20,000 BTU
CFM Room Circulation: 375 CFM
Smart
WiFi: No
Alexa: No
Google Home: No
Remote Control: No
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: No
AI Technology: No
Features
Type: Window
Chassis Type: Slide Out
Maximum Cooling Amps: 7.5 Amps
Maximum Cooling Watts: 5,860 Watts
Heat: No
Energy Efficiency Rating: 10.7
Control Type: Rotary
Remote Control Included: No
PTAC: No
Window Type: Standard
Refrigerant Type: R-32
Technical Details
Energy Star Rated: No
ADA Compliant: No
Voltage: 230/208 Volts
Are you a Trade Pro? Join Now

Description

20,000 BTU Room Air Conditioner
Specifically designed for use in areas where flammable liquids or gasses, or other toxic chemicals or other flammable materials are being used or stored. The Friedrich Hazardgard series of air conditioners are a great option to cool these locations. It is a 60Hz model and it has a T4 Temperature Rating. Hazardgard units can operate in low ambient conditions as low as 45°F / 7°C without freezing, as well as tolerate outdoor temperatures up to 130°F / 55°C. The surface temperature of the unit will not rise above 275°F (135°C). For more than 30 years, the Friedrich Hazardgard has endured some of the toughest and most unforgiving operating conditions imaginable. Time-tested in the field where it counts, Hazardgard is trusted by professionals who have to get the job done. Oil companies rely on Friedrich air conditioners to cool offshore oil rigs, and military bases and government offices all over the world choose Friedrich. Commercial-grade Friedrich products are trusted internationally.

Specifications

Overview
Installation Type:
Window
Chassis Type:
Slide-Out (Window/Wall)
Window Type:
Standard
Window Mounting Kit Included:
No
Refrigerant Type:
R32
Compressor:
Standard
Energy Star:
No
CFMs:
375
Includes Heat Mode:
No
Cooling BTUs (@230V):
20000
EER (@230V):
10.7
Dehumidification (pts/hr) (@230V):
7.5
Cooling Amps (@230V):
10.7
Cooling Watts (@230V):
5860
Vent Location:
Top Front
Make-Up Air:
No
Energy Saver Mode:
No
Fan Speeds:
Variable
Control Type:
Rotary
Filter Access:
Hinged door for easy maintenance
Connectivity:
Not WiFi Compatible
24 Hour ON/OFF Timer:
No
Remote Control:
No
Fresh Air Intake:
No
Sleep Mode:
No
Weights and Dimensions
Width (in.):
25.938
Depth (in.):
27.375
Height (in.):
17.938
Window Width (Min.)(in.):
27.875
Window Width (Max.)(in.):
42
Weight (lbs.):
151
Certifications:
UL LISTED for CLASS 1, DIV 2, GROUPS A, B, C and D
Electrical Requirements
Voltage:
208-230V
Plug Face (NEMA):
Hardwire
Circuit Breaker Size (Amps):
20

Features

Direct wire connection
  • Utilizes direct-wired, 15-amp circuit with time-delay fuse
Hermetically sealed refrigeration system
  • 22 gauge steel cabinet
  • Larger, commercial grade fan motor with hermetically sealed overload for arc-free operation
Permanent split capacitor and totally enclosed fan motor
  • Enclosed fan motor has hermetically sealed overload for arc-free operation
Stainless steel fan shaft
  • Environmentally sealed on/off switch and gold plated contacts in thermostat for corrosion resistance
Solid-state control relays for compressor and fan operation
  • Hot gas bypass allows the air conditioner to operate at low ambient conditions without freezing
