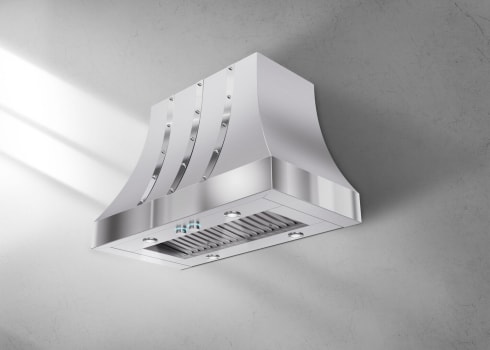

Elica Oristano EORX48S1 - Oristano 48 Inch Wall Mount Range Hood
Elica Oristano EORX48S1 - Oristano 48 Inch Wall Mount Range Hood
Elica Oristano EORX48S1 - Lifestyle View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Elica Oristano EORX48S1
Authorized
Dealer

Elica Oristano
EORX48S1
Wall Mount Range Hood with Hush System, Heat Guard, Seamless Look, Grease Collectors, Easy Mounting, Top or Rear Outlet and Professional Performance: 48 Inch Width - 1200CFM (Hood Insert Sold Separately)

Top Quality Store on Google
Only 5 left in stock
quick specs
Style: Chimney Style
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Width: 48 Inch
Depth: 24 5/16 Inch
Height: 31 5/8 Inch
WiFi: No
CFM: 1,200 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 8.5 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 4
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Warranty Terms: 3 years
?
View more
Width & Power: 48 Inch Width - 1200CFM (Hood Insert Sold Separately)
36 Inch Width - 600/1200CFM (Hood Insert Sold Separately)
36 Inch Width - 600/1200CFM (Hood Insert Sold Separately)
EORX36S1
$2,869.00
In stock
48 Inch Width - 1200CFM (Hood Insert Sold Separately)
48 Inch Width - 1200CFM (Hood Insert Sold Separately)
EORX48S1
$3,259.00
In stock
$3,259.00
MSRP: $3,579.00
You save $320.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Elica
Series: Oristano
Model: EORX48S1
Warranty Terms: 3 years
?
Appearance
Style: Chimney Style
Type: Hood
Color: Stainless Steel
Trim Color: Mirror Finish
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Dimensions
Width: 48 Inch
Depth: 24 5/16 Inch
Height: 31 5/8 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 1,200 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 8.5 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 4
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
Tunable Lighting: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

Oristano Disegno Wall Mount Range Hood with 600 CFM or 1200 CFM (Hood Insert Sold Separately)
Designed to support those with a passion for food & gourmet cooking, Oristano can be equipped with a 600 or 1200 cfm blower, soft LED lighting, plus Elica’s patented HUSH sound suppression system will keep the conversation going. Built with Italian craftsmanship and precision equipment that delivers seamless welding that is flawless, and a superior fit & finish that is Noticeable. The patented Easy Mounting system enables the hood to be installed in just 6 easy steps, and ducting out the rear wall is Now Possible.

Specifications

Shell Specifications
Dimensions:
48" W x 24" D x 31" H
Blower Type (sold separately):
Requires purchase of insert hood EAR140S4 (1200 CFM)
Finish:
Stainless Steel, + Front and lateral Rim - Mirror Stainless steel Mirror, + Decorative bands & rivets - Mirror Stainless steel Mirror, 3 for 36"
Installation:
6 easy steps for mounting, compatible with Arezzo Insert
Duct Cover Extension Kits:
KIT0182783 (48" width x 6" tall), KIT0182784 (48" width x 18" tall)
Arezzo Insert Specifications
EAR140S4:
40 1/2" W x 22" D x 11 7/8" H
Blower Type (internal):
1200 CFM(4-speed)
Noise (sones):
8.5 sones
Finish:
Stainless Steel
Controls:
Fully Retractable Rotating Knobs with Blue Blacklight
Illumination:
4 LED, 6.5 W, 3000 K, 540 Lumen
Grease Filter:
(2) Dishwasher-Safe, Professional Stainless Steel Baffle
Duct Transition:
8" Round with BackDraft Damper (top only)
Installation Type:
Ducted Installation Only
Electrical:
120V - 60 Hz, 926 W
Kits
Duct Cover Extension:
KIT0182783-KIT0182783A (48” width x 6” tall), KIT0182784-KIT0182784A (48” width x 18” tall)
Insert Hood Kits
External Blower:
KIT0153054 (1200 CFM blower 8” or 10” compatible)
Inline Blower:
KIT0154387 (1200 CFM blower 8” or 10” compatible)
Inline Blower Shell (1200 CFM):
KIT0179549 (For use with 1200 CFM blower, 8” or 10” compatible)
External Blower Shell:
KIT0179547 (For use with 1200 CFM blowers only)
Recirculation (1200 CFM):
KIT0192765 (4 round carbon filters) + KIT0192763 (8” round deflector)
Electronic CFM Reduction Bypass:
KIT0185099 (Achieves
Transition Reducer Kit:
KIT0185271 (10” round down to 8” round - attaches to 10” round transition)
Warranty
Warranty:
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com

Features

600 or 1200 CFM (Hood Insert Sold Separately)
  • Offers flexible ventilation power with optional 600 or 1200 CFM blowers, tailored to your cooking needs.
Hush System
  • Patented sound-suppression technology reduces noise levels, delivering powerful performance with quiet operation.
Heat Guard
  • Automatically adjusts or shuts down the hood if excessive heat is detected, protecting both the unit and kitchen safety.
Grease Collectors
  • Heavy-duty baffle filters with integrated grease collectors trap and channel grease for easier cleaning and maintenance.
Easy Mounting System
  • Simplifies installation with a secure, user-friendly mounting design that reduces setup time and effort.
Top or Rear Outlet
  • Provides installation flexibility with ducting options from either the top or rear of the hood.
Professional Performance
  • Engineered for high-capacity cooking environments, combining durable construction with powerful airflow management.
Seamless Look
  • Stainless steel design with decorative banding and rivets creates a refined, professional aesthetic that integrates smoothly into modern kitchens.
