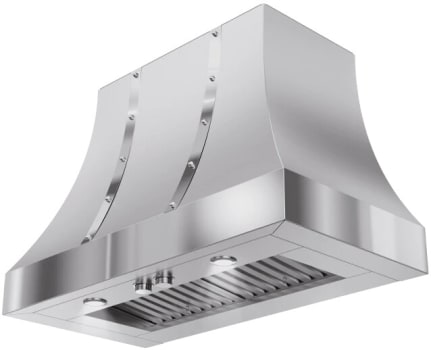

Elica Oristano EORX36S1 - 36-inch Disegno Series Oristano Hood Shell

Image Disclaimer

Authorized

Dealer

Elica Oristano EORX36S1 Wall Mount Range Hood with Hush System, Heat Guard, Seamless Look, Grease Collectors, Easy Mounting, Top or Rear Outlet and Professional Performance: 36 Inch Width - 600/1200CFM (Hood Insert Sold Separately)

Be the first to write a review

Top Quality Store on Google

quick specs

Style: Chimney Style

Venting Type: Ducted

Blower Included: No

Blower Type: Sold Separately

Width: 36 3/16 Inch

Depth: 24 5/16 Inch

Height: 30 Inch

WiFi: No

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: No

Warranty Terms: 3 years

Width & Power: 36 Inch Width - 600/1200CFM (Hood Insert Sold Separately)

36 Inch Width - 600/1200CFM (Hood Insert Sold Separately)

EORX36S1

$2,869.00

48 Inch Width - 1200CFM (Hood Insert Sold Separately)

EORX48S1

$3,259.00

^$2,869^.00

MSRP: ~~$3,159.00~~

You save $290.00

Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information

Brand: Elica

Series: Oristano

Model: EORX36S1

Warranty Terms: 3 years

Appearance

Style: Chimney Style

Type: Hood

Color: Stainless Steel

Trim Color: Mirror Finish

Fingerprint Resistant: No

Glass Canopy: No

Mounting Type: Wall Mount

Venting Type: Ducted

Blower Included: No

Blower Type: Sold Separately

Dimensions

Width: 36 3/16 Inch

Depth: 24 5/16 Inch

Height: 30 Inch

Smart

WiFi: No

Features

Filter Type: Baffle

Dishwasher Safe Filters: Yes

Lights: LED

Delay Shut-Off: No

Tunable Lighting: No

Technical Details

ADA Compliant: No

Energy Star Rated: No

Voltage: 120 Volts

Approved for Outdoor Use: No

Description
Specifications
Features
Reviews

Description

Oristano Disegno Wall Mount Range Hood with 600 CFM or 1200 CFM (Hood Insert Sold Separately)
Designed to support those with a passion for food & gourmet cooking, Oristano can be equipped with a 600 or 1200 cfm blower, soft LED lighting, plus Elica’s patented HUSH sound suppression system will keep the conversation going. Built with Italian craftsmanship and precision equipment that delivers seamless welding that is flawless, and a superior fit & finish that is Noticeable. The patented Easy Mounting system enables the hood to be installed in just 6 easy steps, and ducting out the rear wall is Now Possible.

Specifications

Details

Series Name:

Disegno Series / Oristano

Blower Included:

Insert Hood Type (sold separately):

Requires purchase of insert hood, EAR634SS (600 CFM) or EAR134S4 (1200 CFM) / Needs Pairing with Arezzo Insert

Style:

Chimney Style

Color:

Stainless Steel

Installation:

Wall Mount

Installation Type:

6 easy steps for mounting, compatible with the Arezzo insert

Features:

Hush System, Heat Guard, Grease Collector, Professional Performance

Finish:

Stainless Steel, Front and lateral rim - mirror stainless steel, Decorative bands & rivets - mirror stainless steel

Venting Type:

Convertible with Kit

Filters:

Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter

Duct Transition:

Round 6" / Round 8"

Sones:

1.7-7.0 / 1.7-8.5

Kits

Duct Cover Extension:

KIT0182781-KIT0182781A (36” width x 6” tall), KIT0182782-KIT0182782A (36” width x 18” tall)

Insert Hood Kits

External Blower:

KIT0153054 (1200 CFM blower 8” or 10” compatible)

Inline Blower:

KIT0154387 (1200 CFM blower 8” or 10” compatible)

Inline Blower Shell (1200 CFM):

KIT0179549 (For use with 1200 CFM blower, 8” or 10” compatible)

Inline Blower Shell (600 CFM):

KIT0205342 (For use with 600 CFM blower, 6” compatible)

External Blower Shell:

KIT0179547 (For use with 1200 CFM blowers only)

Recirculation (600 CFM):

KIT0192765 (4 round carbon filters) + KIT0195736 (6” round deflector)

Recirculation (1200 CFM):

KIT0192765 (4 round carbon filters) + KIT0192763 (8” round deflector)

Electronic CFM Reduction Bypass:

KIT0185752 (Achieves

Transition Reducer Kit:

KIT0185271 (10” round down to 8” round - attaches to 10” round transition)

Electrical

Volts:

120 V

Frequency:

60 Hz

Dimensions & Weight

Width:

36 3/16"

Depth:

24 5/16"

Height:

31 5/8"

Weight:

61.51 lbs

Features

600 or 1200 CFM (Hood Insert Sold Separately)

Offers flexible ventilation power with optional 600 or 1200 CFM blowers, tailored to your cooking needs.

Hush System

Patented sound-suppression technology reduces noise levels, delivering powerful performance with quiet operation.

Heat Guard

Automatically adjusts or shuts down the hood if excessive heat is detected, protecting both the unit and kitchen safety.

Grease Collectors

Heavy-duty baffle filters with integrated grease collectors trap and channel grease for easier cleaning and maintenance.

Easy Mounting System

Simplifies installation with a secure, user-friendly mounting design that reduces setup time and effort.

Top or Rear Outlet

Provides installation flexibility with ducting options from either the top or rear of the hood.

Professional Performance

Engineered for high-capacity cooking environments, combining durable construction with powerful airflow management.

Seamless Look

Stainless steel design with decorative banding and rivets creates a refined, professional aesthetic that integrates smoothly into modern kitchens.
