Summit CALDERAMN35ISINKL - Caldera Series 63 Inch Turnkey Kitchen
Summit CALDERAMN35ISINKL - Caldera Series 63 Inch Turnkey Kitchen
Summit CALDERAMN35ISINKL - Caldera Series 63 Inch Turnkey Kitchen
Summit CALDERAMN35ISINKL - Caldera Series 63 Inch Turnkey Kitchen
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Summit CALDERAMN35ISINKL
Authorized
Dealer

Summit
CALDERAMN35ISINKL

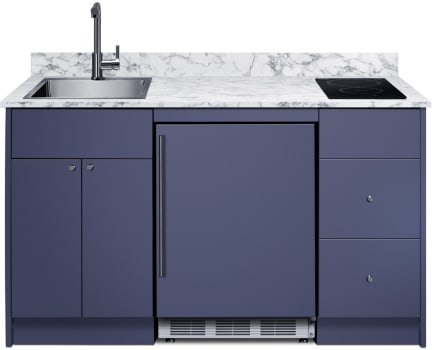

Caldera Series 63 Inch Turnkey Kitchen with Compact Refrigerator, Induction Cooktop, Stainless Steel Sink, 2-Door Storage Cabinet, 2 Storage Drawers, and Laminate Countertop: Blue, Left Side Sink

quick specs
Countertop Material: Laminate
Sink Included: Yes
Cooktop Included: Yes
Cooktop Type: Smoothtop
Number of Burners: 2
Refrigerator Included: Yes
Width: 62 1/2 Inch
Depth: 25 3/4 Inch
Height: 35 3/4 Inch
Refrigerator Capacity: 5.04 Cu. Ft.
Freezer: Part of the Refrigerator
Reversible Door: Yes
View more
$4,599.00
MSRP: $5,900.00
You save $1,301.00
OR
FREE Delivery Available
In stock
Have questions? Chat with us!
Product Information
Brand: Summit
Model: CALDERAMN35ISINKL
Appearance
Color: Blue
Countertop Material: Laminate
Sink Included: Yes
Cooktop Included: Yes
Cooktop Type: Smoothtop
Fuel Type: Induction
Number of Burners: 2
Oven Included: No
Refrigerator Included: Yes
Dimensions
Width: 62 1/2 Inch
Depth: 25 3/4 Inch
Height: 35 3/4 Inch
Sink Width: 16 Inch
Sink Depth: 17 5/8 Inch
Sink Length: 7 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Refrigerator Features
Refrigerator Capacity: 5.04 Cu. Ft.
Freezer: Part of the Refrigerator
Reversible Door: Yes
Hinge Side: Right
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Induction: Yes
Sink Features
Sink Material: Stainless Steel
Faucet Included: Yes
Storage Details
Number of Shelves: 1
Number of Cabinets: 2
Technical Details
ADA Compliant: No
Energy Star Rated: Yes
Amps: 20
Voltage: 115 Volts
WiFi Connected: No
GTIN
UPC: 761101156941
Are you a Trade Pro? Join Now

Description

Caldera Series 63 Inch Turnkey Kitchen with Compact Refrigerator
Summit's Turnkey Kitchens & Bars feature pre-installed cabinetry and matching appliances to bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and hospitality settings. The Caldera is a 63" wide kitchenette in a midnight navy finish. It features hardwood construction and a countertop made from a water-resistant laminate material with a marble look, with a pre-installed 2-burner induction cooktop included. Includes a stainless steel sink with faucet and 5 cu. ft. refrigerator-freezer for food storage. For dry storage, this model has a two-door cabinet and two soft-close drawers. Cabinetry comes in a modern slab style and features door knobs in an attractive brushed nickel finish. For this unit with the sink located on the right side, see model CALDERAMN35I.
Model CALDERAMN35ISINKL includes Summit's CT661WIF, a 24" wide ENERGY STAR certified refrigerator-freezer that utilizes automatic defrost operation in the fresh food section and manual defrost operation in the freezer to ensure items stay frozen. Inside, the CT661WIF includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is kept under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The door comes with a pre-installed stainless steel handle and wood panel to seamlessly blend into the cabinet.
This kitchenette also features Summit's SINC2B115, an ENERGY STAR certified 12" wide 2-zone induction cooktop. The pre-installed cord includes a 3-prong NEMA 5-15P plug for fast setup. The surface is made of jet black glass for a contemporary look that's easier to clean. The rear 1,800W element is sized at 8 1/4", while the front element is 1/4" wide and 1,300W . POWER NOTE: Due to the 115V operation, a power management function limits the overall output to 1,800W.
The CALDERAMN35ISINKL is shipped in two boxes on one pallet. Setup involves unpacking the unit and setting into place. A professional can install the sink and connect your plumbing. Then slide the refrigerator into the cabinetry, plug into a standard 115V outlet, plug the cooktop into a separate outlet, and enjoy your new kitchen. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). With its classic design, standard height, and easy plug-and-play setup, the CALDERAMN35ISINKL is the perfect solution to complete any home bar or hospitality space. For this unit in a classic white finish, see model CALDERAWH35ISINKL. For this unit in an ADA-compliant height, see model CALDERAMN33ISINKL. Summit’s Turnkey collection also features fully assembled dry bars and wet bars designed for easy and elegant beverage service.

Specifications

Refrigerator-Freezer
Refrigerator Included:
CT661WIF
Defrost Type:
Cycle
Door Swing:
RHD
Reversible:
Factory Reversible
Adjustable Shelves:
Yes
Shelf Type:
Glass and Scalloped
Shelf Qty:
2
Crisper Qty:
1
Crisper Finish:
Transparent
Crisper Cover:
Glass
Full Door Shelves:
3
Wine Bottle Shelving:
Yes
Thermostat Type:
Dial
Interior Light:
Yes
Induction Cooktop
Cooktop Included:
SINC2B115
Cooking Type:
Induction
Number of Burners:
2
Surface:
Glass
Cooktop Controls:
Digital
Cooking Timer:
Yes
Element #1 Size:
6 1/4"
Element #1 Wattage:
1,300
Element #2 Size:
8 1/4"
Element #2 Wattage:
1,800
Power Cord Included:
Yes
Countertop, Sink & Faucet
Countertop:
Waterproof Laminate Finish (Marble Look)
Sink:
Stainless Steel
Sink Height:
7"
Sink Width:
16"
Sink Depth:
17 5/8"
Faucet:
Swivel Gooseneck
Faucet Length:
17 5/8"
Faucet Width:
16"
Faucet Depth:
7"
Cabinetry
Cabinet Finish:
Blue
Storage Cabinetry:
2-Door Cabinet
Storage Drawers:
2 Slide-Out
Hardware:
Included
Electrical Specifications
Amps:
16.2
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
35 3/4"
Width:
62 1/2"
Depth:
25 3/4"
Depth with Door at 90°:
47 7/8"
Weight:
355 lbs.
Shipping Weight:
385 lbs.
Overall Shipping Dimensions:
73" H x 77" W x 31" D
Cabinetry's Packaged Dimensions (Refrigerator Removed):
40" H x 67 1/2" W x 29 1/2" D
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
ENERGY STAR Certified:
Yes (Cooktop & Refrigerator-Freezer)

Features

Turnkey Caldera Kitchen Series
  • The Caldera Kitchen series includes sleek, functional, and fully assembled kitchenettes, featuring a European refrigerator-freezer, a 115V powered induction cooktop, and a stainless steel sink complete with a faucet
Compact Refrigerator
  • This unit includes model CT661WIF, a 24" wide cycle-defrost refrigerator-freezer
Induction Cooktop
  • This unit includes the SINC2B115, a 12" 2-zone induction cooktop with electromagnetic heating for faster, safer, and energy-efficient cooking. Two cooking elements sized at 6 1/4" and 8 1/4" cover most general cooking needs
Stainless Steel Sink and Faucet
  • Swivel gooseneck faucet in brushed nickel with 17.63" L x 16" W x 7" D sink, crafted from 18-gauge stainless steel and equipped with SoundSHIELD Technology to reduce noise
2-Door Storage Cabinet
  • Includes a 2-door cabinet under the sink, with a removable shelf for flexible storage
2 Slide-out Storage Drawers
  • Two hardwood storage drawers with soft-close glides are perfect for holding menus, kitchen accessories, and other needed extras
Fully Assembled Cabinetry & Pre-Installed Countertop
  • This unit features slab-style hardwood cabinetry in a modern midnight navy finish for lasting durability, paired with a solid laminate marble-look countertop, shipped in one piece for easy installation
Hardware Included
  • Cabinet and drawer knobs in brushed nickel finish packaged inside for easy installation
Backsplash Included
  • Matching backguard is packaged with the unit for optional use
Matching Wall Cabinetry Available
  • Browse the CABMN lineup to complete your setup
Easy Setup
  • Set your cabinet in place, have a plumber install and connect your sink, and slide in the refrigerator to create your very own one-piece kitchenette
Easy Shipping
  • Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack
100% CFC Free
  • Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ENERGY STAR Certified (Refrigerator-Freezer & Cooktop)
  • Both appliances are rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Refrigerator-Freezer Features
  • Adjustable Glass Shelves
  • Cycle Defrost
  • Interior Light
  • Adjustable Dial Thermostat
  • Pre-Installed Panel
Cooktop Features
  • Residual Heat Indicator Light
  • Safety Cut-Off
  • Cord & Plug Included
