Description

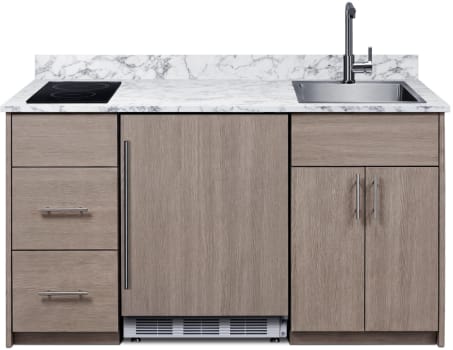

Caldera Series 63 Inch Turnkey Kitchen with Compact Refrigerator
Summit's Turnkey Kitchens & Bars feature pre-installed cabinetry and matching appliances to bring effortless style & instant living to home bars, ADUs, tiny houses, rental properties, office break rooms, and hospitality settings.
The Caldera is a 63" wide kitchenette in a dust brown wood look finish, sized just under 34" to comply with ADA guidelines for lower counter height. It features hardwood construction and a countertop made from a water-resistant laminate material with a marble look, with a pre-installed 2-burner induction cooktop included. We include a stainless steel sink with faucet and 5 cu.ft. refrigerator-freezer for food storage. For dry storage, this model has a two-door cabinet and two soft-close drawers. We also supply the cabinet pulls in an attractive brushed nickel finish. The cabinetry features a wood grain and comes in a modern slab style. For this unit with the sink located on the left side, see model CALDERADB33ISINKL.
This model includes Summit's CT661WIFADA, a 24" wide ENERGY STAR certified refrigerator-freezer that utilizes automatic defrost operation in the fresh food section and manual defrost operation in the freezer to ensure items stay frozen. Inside, it includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is kept under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat. The door comes with a pre-installed stainless steel handle and wood panel to seamlessly blend into the cabinet.
This kitchenette also features Summit's SINC2B115, an ENERGY STAR certified 12" wide 2-zone induction cooktop. The pre-installed cord includes a 3-prong NEMA 5-15P plug for fast setup. The surface is made of jet black glass for a contemporary look that is easy to clean. The rear 1800W element is sized at 8 1/4", while the front element is 6 1/4" wide and 1300W . POWER NOTE: Due to the 115V operation, a power management function limits the overall output to 1800W.
Summit Turnkey Kitchens are shipped in two boxes on one pallet. Setup involves unpacking the unit and setting into place. A professional can install the sink and connect your plumbing. Then slide the refrigerator into the cabinetry, plug into a standard 115V outlet, plug the cooktop into a separate outlet, and enjoy your new kitchen. We recommend your installation team watches the unboxing video before setup (summitappliance.com/turnkey-installation). Overall shipping dimensions are 73" H x 77" W x 31" D. Cabinetry's packaged dimensions (with refrigerator removed) is 40" H x 67.5" W x 29.5" D. Unpackaged, the final product dimensions are 33.75" H x 62.5" W x 25.5" D.
Specifications
Overview
Height of Cabinet:
35.75" (91 cm)
Depth with door at 90°:
47.88" (122 cm)
Capacity:
5.04 cu.ft. (143 L)
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Plug Type:
(2) NEMA 5-15P (cooktop and refrigerator)
Voltage/Frequency:
115 V AC/60 Hz
Weight 355.0 lbs.:
(161 kg)
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Kitchenette
Refrigerator Included:
CT661WIF
Shelf Type:
Glass and Scalloped
Crisper Finish:
Transparent
Wine Bottle Shelving:
Yes
Refrigerant Amount:
0.92 oz.
Cooktop Controls:
Digital
Sink Height:
7.0" (18 cm)
Sink Width:
16.0" (41 cm)
Sink Depth:
17.63" (45 cm)
Features
Turnkey Caldera Kitchen Series
- The Caldera Kitchen series includes sleek, functional, and fully assembled kitchenettes, featuring a European refrigerator-freezer, a 115V powered induction cooktop, and a stainless steel sink complete with a faucet
Compact Refrigerator
- This unit includes model CT661WIF, a 24" wide cycle-defrost refrigerator-freezer
Induction Cooktop
- This unit includes the SINC2B115, a 12" 2-zone induction cooktop with electromagnetic heating for faster, safer, and energy-efficient cooking. Two cooking elements sized at 6 1/4" and 8 1/4" cover most general cooking needs
Stainless Steel Sink and Faucet
- Swivel gooseneck faucet in brushed nickel with 17.63" L x 16" W x 7" D sink, crafted from 18-gauge stainless steel and equipped with SoundSHIELD Technology to reduce noise
2-Door Storage Cabinet
- Includes a 2-door cabinet under the sink, with a removable shelf for flexible storage
2 Slide-out Storage Drawers
- Two hardwood storage drawers with soft-close glides are perfect for holding menus, kitchen accessories, and other needed extras
Fully Assembled Cabinetry & Pre-Installed Countertop
- This unit features slab-style hardwood cabinetry in a modern midnight navy finish for lasting durability, paired with a solid laminate marble-look countertop, shipped in one piece for easy installation
Hardware Included
- Cabinet and drawer knobs in brushed nickel finish packaged inside for easy installation
Backsplash Included
- Matching backguard is packaged with the unit for optional use
Matching Wall Cabinetry Available
- Browse the CABMN lineup to complete your setup
Easy Setup
- Set your cabinet in place, have a plumber install and connect your sink, and slide in the refrigerator to create your very own one-piece kitchenette
Easy Shipping
- Cabinetry and refrigerator are individually boxed and packaged together on one pallet for one-piece shipping. Once received, follow the written or video instructions to safely unpack
100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ENERGY STAR Certified (Refrigerator-Freezer & Cooktop)
- Both appliances are rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Refrigerator-Freezer Features
- Adjustable Dial Thermostat
Cooktop Features
- Residual Heat Indicator Light
