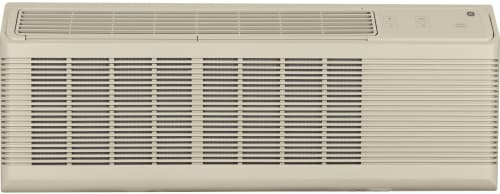

GE Zoneline Premium Guard Corrosion Protection AZ45E15DAC
Authorized
Dealer

GE Zoneline Premium Guard Corrosion Protection
AZ45E15DAC
14,600 BTU Packaged Terminal Air Conditioner with Electric Heat, 10.5 EER, 4.6 Pints Per Hour Dehumidification, R410A Refrigerant and 230/208 Volt

quick specs
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Cooling Capacity (BTU): 14,600 BTU
CFM Room Circulation: 449 CFM
Chassis Type: Thru the Wall
Control Type: Digital
View more
Cooling Capacity (BTU) Rounded:
15,000 BTU
Voltage:
230/208 Volts
Series:
Premium Guard Corrosion Protection
Not available with current selections
Not available with current selections

Recommended Accessories

Product Information
Brand: GE
Series: Zoneline Premium Guard Corrosion Protection
Model: AZ45E15DAC
Dimensions
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Capacity
CFM Room Circulation: 449 CFM
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 31.5 Amps
Maximum Cooling Watts: 1,390 Watts
Heat: Electric Heat
Energy Efficiency Rating: 10.5
Control Type: Digital
PTAC: Yes
Technical Details
Voltage: 230/208 Volts
GTIN
UPC: 084691815686
Are You a
Builder?
Contact us for
special pricing & volume discounts
Get Quote
  • Description
  • Specifications
  • Features
  • Reviews

Description

***NOTE*** Power cord, wall sleeve, and grille not included, select from the listing above.

GE Air Conditioning
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

Selecting a GE air conditioner is not only good for the occupant and guests, it's a decision that will leave you resting comfortably as well. All GE air conditioners are engineered to give many years of dependable service with a full complement of standard features and a variety of exclusive GE features. They're designed for hassle-free installation and easy maintenance.

How to Choose a Room Air Conditioner
Compared to large capacity central units, room air conditioners have several advantages. The initial cost of a room air conditioning unit is significantly lower than the cost of central air. Because room air conditioners are designed for cooling small spaces, operating costs are reduced. And, room air conditioners can provide personalized temperature and humidity controls that central systems cannot.

Calculating Cooling Capacity
Cooling capacity is the critical factor in properly selecting a room air conditioner. Cooling capacity is measured in British Thermal Units (BTUs) and typical models will range in capacity from 5,000 BTUs to 28,500 BTUs.

Choosing an undersized unit will overwork the unit and it will not cool properly. Choosing an over-sized unit will cost more to buy and operate and it will not dehumidify properly.

We can help you to calculate capacity. Be prepared to provide specific information on:
  • Room Dimensions
  • A simple floor plan to show the location of doors and north-facing windows
  • The number of people it will serve
  • Sources of heat such as lamps, TV and appliances
  • An explanation of what's above the intended room
  • Your insulation provisions

Cooling Capacity by Room Size
Measure the length and width of the area to be cooled. Multiply the length by the width to determine square footage or square meters. Locate the room size in the chart below to select the appropriate BTUs. Then use the product information to select the unit for your room. When cooling rooms with uninsulated ceilings, great rooms, or southern or western sun exposures - step up to the next BTU size.

Room SizeBTU
Sq. Ft.Sq. m
15014 up to 5,000
16515 5,200
216206,000
350338,000
425399,000
5004610,000
6406014,00
9008415,100
1,11010318,000
1,17010918,500
1,43513322,000
1,67215425,000
1,96018228,500

Specifications

Features
Sensible Heat Ratio:
63%
Chassis Type:
Slide-In
Control Type:
Coverless Backlit White LED Touch Controls
Discharge Grille:
2-position
Electronic Micro Computer Control:
Yes
Fan Cycle Switch:
Yes
Fan Motor:
2
Fan Speed Control:
Yes
Fan Speed Selections:
Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
Filter Type:
Rigid Frame, Slide-Out
Heat - Cool:
Yes
Louver Style:
Reversible
Manual Vent Control:
Hidden
Rotary Compressor:
Yes
Temperature Limiting:
Electronic 7-Step
Vent Control:
3-position
Venting Features:
Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
Zoneline Features:
"Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel (85F), LCDI Power Cord, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components
Temperature Range:
60 - 85 F
Capacity
Cooling BTU (Min.):
14,500 BTU
Cooling BTU (Max.):
14,600 BTU
Cooling EER (BTU/Watt):
10.5
Indoor Fan CFM (High):
449
Indoor Fan CFM (Low):
300
Dehumidification (Pts./Hr.):
4.6
Vent CFM:
47
Power / Ratings
Cooling - Amperes; F.L. - Cooling:
6.7
Cooling - Amperes; L.R.:
31.5
Cooling - Watts:
1,390
Power Factor:
97
Voltage (Min.):
208.0 V
Voltage (Max.):
230.0 V
Warranty
Parts & Labor:
1 Year
Sealed Refrigerating System:
5 Years
Weights & Dimensions
Shipping Weight:
110 Lbs.
Depth:
20 13/16"
Height:
16"
Width:
42"

Features

***NOTE***Power cord, wall sleeve, and grille not included, select from the listing above.
Cooling Capacity
  • 14,600 BTU
Energy Efficiency
  • 10.5 EER (BTU / Watt)
Dehumidification
  • 4.6 pints/hour
Indoor Fan
  • 449/300 high/low CFM
Fresh Air Vent
  • 47
Quiet Operation
  • Baked-on mastic, cross flow blower and two DC fan motors create less noise to ensure comfort
Heat & Freeze Sentinels
  • Keeps the room from overheating or freezing
Electronic Temperature Limiting
  • Prevents expensive over-cooling or over-heating of the room
Corrosion Resistant
  • Extends life of the unit in sea coast areas/corrosive environments
Electronic Touch Controls with LED Display
Eco-Friendly R-410A Refrigerant
