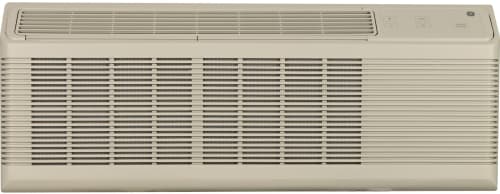

GE Zoneline Base AZ45E09DAB - GE Cooling and Electric Heat PTAC Air Conditioner
GE Zoneline Base AZ45E09DAB - GE Cooling and Electric Heat PTAC Air Conditioner
GE Zoneline Base AZ45E09DAB - GE Cooling and Electric Heat PTAC Air Conditioner
GE Zoneline Base AZ45E09DAB - GE Cooling and Electric Heat PTAC Air Conditioner
+9

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
GE Zoneline Base AZ45E09DAB
Authorized
Dealer

GE Zoneline Base
AZ45E09DAB
9,700 BTU Packaged Terminal Air Conditioner with Electric Heat, 11.8 EER, 2.9 Pints Per Hour Dehumidification Capacity, R410A Refrigerant and 230/208 Volt

quick specs
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Cooling Capacity (BTU): 9,700 BTU
CFM Room Circulation: 409 CFM
WiFi: No
Remote Monitoring: No
Chassis Type: Thru the Wall
Control Type: Digital
View more
Cooling Capacity (BTU) Rounded:
9,000 BTU
Not available with current selections
Voltage:
230/208 Volts
Not available with current selections
Series:
Base
Not available with current selections
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: GE
Series: Zoneline Base
Model: AZ45E09DAB
Dimensions
Width: 42 Inch
Depth: 20 13/16 Inch
Height: 16 Inch
Capacity
CFM Room Circulation: 409 CFM
Smart
WiFi: No
Remote Monitoring: No
Features
Type: Wall
Chassis Type: Thru the Wall
Maximum Cooling Amps: 21 Amps
Maximum Cooling Watts: 800 Watts
Heat: Electric Heat
Energy Efficiency Rating: 12.1
Control Type: Digital
PTAC: Yes
Sleep Mode: Yes
Indoor CFM, High: 393 CFM
Indoor CFM, Low: 260 CFM
Refrigerant Type: R-410A
Technical Details
Voltage: 230/208 Volts
GTIN
UPC: 084691815518
EAN: 0084691815518
Are you a Trade Pro? Join Now

Description

GE Air Conditioning
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

Selecting a GE air conditioner is not only good for the occupant and guests, it's a decision that will leave you resting comfortably as well. All GE air conditioners are engineered to give many years of dependable service with a full complement of standard features and a variety of exclusive GE features. They're designed for hassle-free installation and easy maintenance.

***NOTE***Power cord, wall sleeve, and grille not included, select from the listing above.

The AZ45E07DAB PTAC air conditioner features:
°9,700 BTU Cooling Capacity
°11.8 Energy Efficiency Rating
°2.9 Pints Per Hour Dehumidification Capacity
°409 CFM Indoor Fan
°Quiet Operation
°Eco-Friendly R-410A Refrigerant

Specifications

Features
Sensible Heat Ratio:
64%
Chassis Type:
Slide-In
Control Type:
Coverless Backlit White LED Touch Controls
Discharge Grille:
2-position
Electronic Micro Computer Control:
Yes
Fan Cycle Switch:
Yes
Fan Motor:
2
Fan Speed Control:
Yes
Fan Speed Selections:
Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
Filter Type:
Rigid Frame, Slide-Out
Heating and Cooling:
Yes
Louver Style:
Reversible
Manual Vent Control:
Hidden
Rotary Compressor:
Yes
Temperature Limiting:
Electronic 7-Step
Vent Control:
3-position
Venting Features:
Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
Zoneline Features:
"Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, LCDI Power Cord, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility,Universal Heaters, Weather Protected Electrical Components
Temperature Range:
60°-85°F
Capacity
Cooling BTU (Min.):
9600
Cooling BTU (Max.):
9700
Cooling EER (BTU/Watt):
12.1/12.1
Indoor Fan CFM (High):
409
Indoor Fan CFM (Low):
280
Dehumidification (Pts./Hr.):
2.7
Vent CFM (High Fan at Zero ESP):
38
Power / Ratings
Cooling - Amperes; F.L. - Cooling:
3.6/3.9
Cooling - Amperes; L.R.:
21.0
Cooling - Watts:
800/790
Power Factor:
98
Voltage (Min.):
208
Voltage (Max.):
230
Warranty
Parts & Labor:
1 Year
Sealed Refrigerating System:
5 Years
Weights & Dimensions
Shipping Weight:
110 Lbs.
Depth:
20 13/16"
Height:
16"
Width:
42"

Features

***NOTE***Power cord, wall sleeve, and grille not included, select from the listing above.
Cooling Capacity
  • 9,700/9,600 BTU
Energy Efficiency
  • 11.8/11.8 EER
  • On average 8% more efficient than the leading competitor
Dehumidification
  • 2.9 Pints/Hour
Indoor Fan CFM
  • 409/330 High/Low
Fresh Air Vent CFM
  • 70/45
Quiet Operation
  • Baked-on mastic, cross flow blower and two DC fan motors create less noise to ensure comfort
Heat & Freeze Sentinels
  • Keeps the room from overheating or freezing
Electronic Temperature Limiting
  • Prevents expensive over-cooling or over-heating of the room
Electronic Touch Controls with LED Display
R-410A Refrigerant
