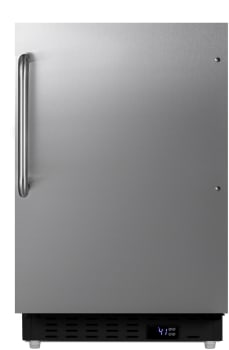

Summit ALR47BSSTB - Front View
Summit ALR47BSSTB - Front View
Summit ALR47BSSTB - Open View
Summit ALR47BSSTB - In-Use View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Summit ALR47BSSTB
Authorized
Dealer

Summit
ALR47BSSTB
21 Inch Built-In All-Refrigerator with 3.53 Cu. Ft. Capacity, Adjustable Shelves, Insulated Door, Temperature Alarms, and ADA Compliant: Stainless Steel (Towel Bar Handle)

Top Quality Store on Google
quick specs
Refrigerator Capacity: 3.53 Cu. Ft.
Total Capacity: 3.53 Cu. Ft.
Width: 20 7/8 Inch
Depth: 25 Inch
Depth with Door at 90°: 40 1/4 Inch
Height: 32 Inch
WiFi: No
No. of Shelves: 3
ADA Compliant: Yes
Water Dispenser: No
Ice Maker: No
View more
Color: Stainless Steel (Towel Bar Handle)
Black
Black
ALR47B
$799.00
In stock
Integrated Frame Panel Ready
Integrated Frame Panel Ready
ALR47BIF
$1,199.00
In stock
Stainless Steel (Towel Bar Handle)
Stainless Steel (Towel Bar Handle)
ALR47BSSTB
$1,199.00
In stock
Stainless Steel (Vertical Handle)
Stainless Steel (Vertical Handle)
ALR47BSSHV
$1,199.00
In stock
Stainless Steel Cabinet
Stainless Steel Cabinet
ALR47BCSS
$1,699.00
In stock
$1,199.00
MSRP: $1,695.00
You save $496.00
OR
Buy more & save up to $900
See all eligible items
2
$100
3
$200
4
$300
5
$400
6
$500
7
$600
8
$700
9
$800
10
$900
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Summit Buy More Save More! Up to $900 Instantly! Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Summit
Model: ALR47BSSTB
Appearance
Type: Freestanding/Built In
Style: Full
Size: Compact
Counter Depth: Yes
Undercounter: Yes
Door Style: One Door
Double Freezer Drawers: No
Glass Door: No
Freezer: No
Microfridge: No
Hinge Side: Right
Wine Racks (Category): No
Color: Stainless Steel
Door Color: Stainless Steel
Cabinet Color: Black
Interior Color: White
Leveling Legs: Yes
Column: No
Capacity
Refrigerator Capacity: 3.53 Cu. Ft.
Total Capacity: 3.53 Cu. Ft.
Dimensions
Width: 20 7/8 Inch
Depth: 25 Inch
Depth without Handles: 22 1/2 Inch
Depth with Door at 90°: 40 1/4 Inch
Height: 32 Inch
Height without Hinges: 31 3/4 Inch
Smart
WiFi: No
Alexa: No
Google Home: No
Features
Smart Home / App Compatible: No
Remote Access: No
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 3
No. of Adjustable Shelves: 3
No. of Door Bins: 3
Adjustable Door Bins: No
Humidity Controlled Crispers: 1
Temperature Zones: Single
Technical Details
Energy Star Rated: No
ADA Compliant: Yes
Approved for Outdoor Use: No
Amps: 15
Voltage: 115 Volts
Water
Water Dispenser: No
Water Filtration: No
Settings
Digital Temperature Control: Yes
Ice
Ice Dispenser: No
Ice Maker: No
GTIN
UPC: 761101076492
EAN: 0761101076492
Are you a Trade Pro? Join Now

Description

ALFZ47B 21" Built-In All Refrigerator
Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALFZ47B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

Specifications

Product Overview
Height of Cabinet:
31.75" (81 cm)
Height to Hinge Cap:
32.0" (81 cm)
Width:
20.88" (53 cm)
Depth:
22.5" (57 cm)
Depth with Handle:
25.0" (64 cm)
Depth with door at 90°:
40.25" (102 cm)
Capacity:
3.53 cu.ft. (100 L)
Defrost Type:
Automatic
Door:
Stainless Steel
Cabinet:
Black
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Energy Usage/Year:
251.0kWh/year
Amps:
1.1
Voltage/Frequency:
115 V AC/60 Hz
Weight:
85.0 lbs. (39 kg)
Shipping Weight:
120 lbs. (54 kg)
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Refrigerator Features
Door Swing:
RHD
Reversible:
Yes
Crisper Qty:
1
Crisper Finish:
Transparent
Crisper Cover:
Glass
Shelf Type:
Glass
Shelf Qty:
3
Full Door Shelf Qty:
3
Adjustable Shelves:
Yes
Thermostat Type:
Digital
Fan Type:
Interior
Refrigerant Type:
R600a
Refrigerant Amount:
0.99oz.
High Side PSI:
180.0
Low Side PSI:
80.0
Level Legs Qty:
2
Wheel Qty:
2
Interior Light:
Yes
Temperature Range:
35 to 46°F
Interior Height:
23.5" (60 cm)
Interior Width:
16.25" (41 cm)
Interior Depth:
17.0" (43 cm)
Compressor Step Height:
6.25" (16 cm)
Compressor Step Width:
16.25" (41 cm)
Compressor Step Depth:
6.0" (15 cm)

Features

21 Inch Built-In All-Refrigerator
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter - finished cabinets also allow for freestanding installation
3.53 Cu. Ft. Capacity
  • Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
Insulated Door
  • Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Temperature Alarms
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Additional Features
  • Adjustable Shelves
  • ADA Compliant
  • Vegetable Crisper
