Description

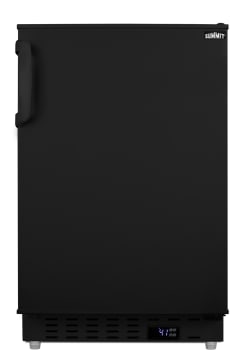

21 Inch Built-In Compact Refrigerator with 3.53 Cu. Ft. Capacity
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ALR47B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.
Inside, the ALR47B features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu. ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 20" wide, the ALR47B is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ37B all-freezer. Additional choices in stainless steel and panel-ready styles are available.
Specifications
Overview
Energy Usage/Year:
251.0kWh/year
Temperature Range:
35 to 46°F
Refrigerator Features
Crisper Finish:
Transparent
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
31.75"
Width with Door Open:
20.25"
Depth with Handle:
24.38"
Depth with Door at 90°:
40.25"
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Features
3.53 Cu. Ft. Capacity
- Front-breathing design lets you make the best use of space by installing your appliance under the counter - finished cabinets also allow for freestanding installation
Adjustable Glass Shelves
- Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
Door Shelves
- Three removable door racks for additional storage of larger items
Fruit and Vegetable Crisper
- Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Temperature Alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open Door Alarm
- Audible alarm will sound if the door is left ajar for over a minute
Automatic Defrost
- Reduced user maintenance with an auto defrost system
Reversible Door
- User-reversible door swing for added flexibility to best accommodate your setting
3" Thick Door
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Interior Light
- Front-located LED light ensures entire interior is lit when door opens
Adjustable Thermostat
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
Sealed Back
- Space-saving design that offers easier cleanability
Right-angle Plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully Finished Black Cabinet
- Allows the unit to be used freestanding
Matching All-freezer

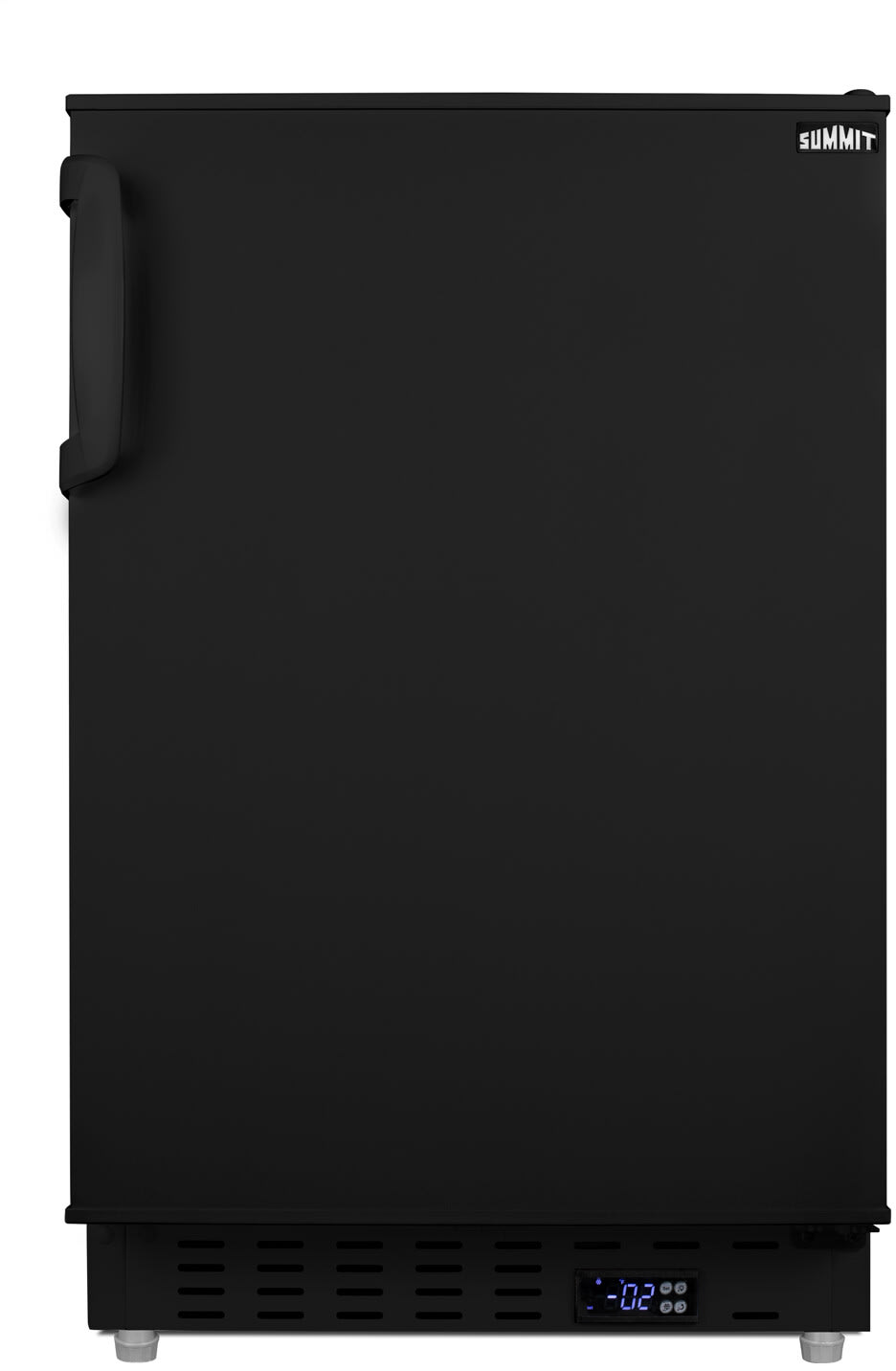

- This unit can be paired with the ALFZ37B all-freezer for a complete set
Built-in Capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA Compliant Design
- 32" height allows easy installation under lower ADA compliant counters
