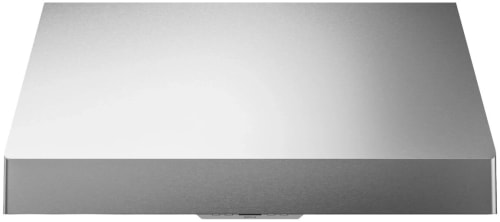

Zephyr Tempest II AK7536DS - Tempest II 36-Inch Stainless Steel Wall Mounted Range Hood
Zephyr Tempest II AK7536DS - Tempest II 36-Inch Stainless Steel Wall Mounted Range Hood
Zephyr Tempest II AK7536DS - Tempest II 36-Inch Stainless Steel Wall Mounted Range Hood
Zephyr Tempest II AK7536DS - Tempest II 36-Inch Stainless Steel Wall Mounted Range Hood
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Tempest II AK7536DS
Authorized
Dealer

Zephyr Tempest II
AK7536DS
Wall Mount Range Hood with 5 Fan Speeds, 650 CFM Internal Blower, Airflow Control Technology™ (ACT™), LumiLight LED Lighting, Professional Pro Baffle Filters, and ADA Compliant with Optional Remote: 36 Inch Width

Top Quality Store on Google
quick specs
Style: Canopy Pro Style
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 35 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
WiFi: No
Remote Control: Yes
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 5
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 36 Inch Width
36 Inch Width
36 Inch Width
AK7536DS
$1,799.00
42 Inch Width
42 Inch Width
AK7542DS
$1,899.00
48 Inch Width
48 Inch Width
AK7548DS
$2,099.00
54 Inch Width
54 Inch Width
AK7554DS
$2,299.00
$1,799.00
MSRP: $1,949.00
You save $150.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Tempest II
Model: AK7536DS
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 35 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
Smart
WiFi: No
Remote Control: Yes
Smart Accessory Required: No
Capacity
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 5
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

Wall Mount Range Hood with 5 Fan Speeds
The Zephyr Tempest II Wall-Mount Range Hood combines powerful ventilation with a sleek stainless steel design. Its 650 CFM airflow, professional baffle filters, and 5-speed electronic controls efficiently remove smoke, grease, and cooking odors. LED lighting provides clear illumination over the cooking surface, while features such as CleanAir Function and automatic delay-off add convenience for everyday cooking.

Specifications

General
Collection:
Tempest II
Hood Type:
Wall-Mount Canopy
Finish:
Stainless Steel
Blower Type:
Internal
Blower Included:
Yes
Maximum Airflow:
650 CFM
ACT Airflow:
290 / 390 CFM
Fan Speeds:
5
Controls:
Electronic LCD / Digital
Noise Level:
1–7 Sones
Filter Type:
Professional Pro Baffle
Filters:
Dishwasher-Safe
Lighting:
LED
Lighting Type:
LumiLight LED with TruHue™
Lighting Levels:
Dual-Level
Color Temperature:
2700K–5000K
Ventilation Type:
Convertible
Venting Direction:
Vertical / Horizontal
Vertical Duct:
8" Round
Horizontal Duct:
8" Round or 3-1/4" × 10" Rectangular
Discharge Location:
Top / Rear
CleanAir Function:
Yes
Airflow Control Technology™ (ACT™):
Yes
Automatic Delay-Off:
Yes
Remote Control:
Optional RC-0002
ADA Compliant:
Yes, with optional remote
Recirculating:
Yes
Wi-Fi:
No
Smart Compatible:
No
Outdoor Rated:
No
Electrical
Voltage:
120V
Frequency:
60 Hz
Amperage:
5A
Dimensions
Width:
35 7/8"
Height:
18"
Depth:
24"

Features

Airflow Control Technology™ (ACT™)
  • Allows the installer to limit maximum airflow to meet local code requirements.
650 CFM Internal Blower
  • Provides powerful ventilation for removing smoke, grease, and cooking odors.
5-Speed Electronic LCD Controls
  • Provides precise control over ventilation speed.
LumiLight LED Lighting with TruHue™
  • Adjustable color temperature from 2700K to 5000K for customizable kitchen lighting.
Dual-Level Lighting
  • Provides adjustable illumination over the cooking surface.
Professional Pro Baffle Filters
  • High-airflow filters designed to capture grease efficiently and are dishwasher-safe.
CleanAir Function
  • Automatically activates the hood periodically to refresh the air in the cooking area.
Welded and Polished Body
  • Provides a seamless, refined stainless steel appearance.
Vertical or Horizontal Ducting
  • Supports flexible installation with multiple venting configurations.
Convertible Venting
  • Can be configured for ducted or optional recirculating operation.
Optional Wireless Remote Control (RC-0002)
  • Provides remote operation and enables ADA-compliant control when used with the compatible accessory.
Stainless Steel Construction
  • Durable stainless steel finish for a professional appearance.
Wall-Mount Canopy Design
  • 36-inch wall-mounted design suitable for professional-style cooking applications.
Key Features
Airflow Control Technology™ (ACT™)
Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting with TruHue™
A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.
