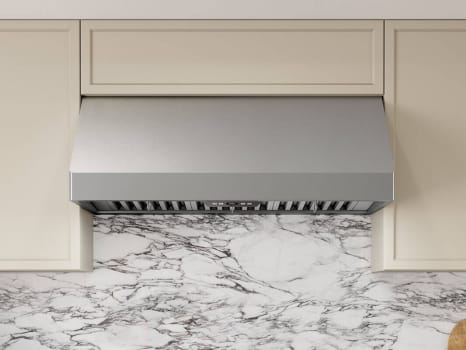

Zephyr Pro Tempest II AK7500DS - 30-inch Tempest II Wall
Zephyr Pro Tempest II AK7500DS - 30-inch Tempest II Wall
Zephyr Pro Tempest II AK7500DS - 30-inch Tempest II Wall
Zephyr Pro Tempest II AK7500DS - 30-inch Tempest II Wall
+4

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Pro Tempest II AK7500DS
Authorized
Dealer

Zephyr Pro Tempest II
AK7500DS
30 Inch Wall Mount Range Hood with 5 Fan Speeds, 650 CFM Internal Blower, Airflow Control Technology™ (ACT™), Professional Baffle Filters, Dishwasher-Safe Filters, Dual-Level Lighting, and LumiLight LED Lighting with TruHue™

Top Quality Store on Google
Only 1 left in stock
quick specs
Style: Canopy Pro Style
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 29 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
WiFi: No
Remote Control: Yes
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 5
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
$1,699.00
MSRP: $1,849.00
You save $150.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Pro Tempest II
Model: AK7500DS
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 29 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
Smart
WiFi: No
Bluetooth: No
Alexa: No
Google Home: No
Remote Control: Yes
Remote Monitoring: No
Remote Diagnostics: No
Dash Replenishment: No
Smart Accessory Required: Yes
AI Technology: No
Capacity
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 5
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 646328013669
Are you a Trade Pro? Join Now

Description

30 Inch Wall Mount Range Hood with 5 Fan Speeds
Designed with professional-grade performance and seamless contours, the wall-mount Tempest II gives you serious cooking power, with 650-CFM or 1,200-CFM blower options. Updated with 5-speed electronic LCD controls and dual-level LumiLight LED lighting with TruHue™, which lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch. Equipped with dishwasher-safe, high-airflow pro baffle filters and an optional wireless remote control, it’s everything the demanding cook could ask for.

Specifications

General Information
Series:
Tempest II Wall
Hood Type:
Wall-Mount Canopy / Pro-Style
Finish:
Stainless Steel (304-grade, welded and polished)
Performance & Airflow
Standard Blower Capacity:
650 CFM (Internal)
Optional Blower Capacity:
1,200 CFM (with optional PBD-1200B Dual Internal Blower Kit)
Speed Levels:
5 Speeds
Airflow Technology:
Airflow Control Technology™ (ACT™ – 290, 390, or 650 CFM presets)
Noise Level (Sones):
1.0 to 7.0 Sones (Single Blower) / 3.0 to 10 Sones (Dual Blower)
Venting & Installation
Venting Type:
Convertible (Ducted standard, Recirculating optional via ZRC-7000C kit)
Duct Options:
Vertical or Horizontal
Vertical Duct Size:
8" Round (Single Blower) / 10" Round (Dual Blower)
Horizontal Duct Size:
8" Round or 3-1/4" x 10" Rectangular (Single Blower)
Min. Height Above Cooktop:
26"
Max. Height Above Cooktop:
36"
Controls & Lighting
Controls:
Electronic LCD Touch Display
Lighting:
LumiLight LED with TruHue™ (Adjustable color temperature: 2700K to 5000K)
Lighting Levels:
Dual-Level (Task & Nightlight)
Auto Delay Shut-Off:
Yes (5 minutes)
CleanAir Function:
Yes (10 min/hr low-speed auto cycle)
Filtration
Filter Type:
Professional Baffle Filters
Filter Maintenance:
Dishwasher-Safe
Filter Quantity:
2
Electrical Requirements
Voltage:
120V / 60Hz
Amperage (Single Blower):
Max 5 Amps
Amperage (Dual Blower):
Max 9 Amps
Dimensions
Width:
29 7/8"
Depth:
24"
Height:
18"

Features

5 Fan Speeds
  • Offers precise, customizable control over airflow to handle everything from gentle simmering to high-heat searing.
650 CFM Internal Blower
  • Delivers powerful ventilation performance to eliminate smoke, grease, and heavy cooking odors quickly.
Airflow Control Technology™ (ACT™)
  • Allows installers to restrict the maximum CFM to meet local building code makeup air requirements without changing the hood.
Professional Baffle Filters
  • Heavy-duty stainless steel baffles maximize grease capture and airflow while giving the hood a commercial-style appearance.
Dishwasher-Safe Filters
  • High-performance filters pop out easily and can be placed directly in the dishwasher for hassle-free cleaning.
Dual-Level Lighting
  • Features multi-stage illumination settings so you can switch between full task lighting and a lower ambient nightlight.
Optional Wireless Remote Control
  • Offers the convenience of adjusting fan speeds, lighting, and timer settings from anywhere in the kitchen.
LumiLight LED Lighting with TruHue™
  • Bright, energy-efficient LEDs designed to render true food colors accurately while illuminating your cooktop.
CleanAir Function
  • Automatically runs the fan on low speed for 10 minutes every hour to continuously refresh kitchen air.
Electronic LCD Controls
  • Sleek, intuitive front panel with an active display screen for easy navigation of speeds, timer, and lighting functions.
18" Body Height
  • Features a deep, pro-style canopy design that enhances capture efficiency and makes a bold visual statement.
Vertical or Horizontal Ducting
  • Provides flexible installation options with support for both top and rear ductwork configurations.
Convertible Venting
  • Adapts for external ducted venting or non-ducted recirculating setups using an optional charcoal kit.
Welded and Polished Body
  • Seamless stainless steel construction built with fine craftsmanship for exceptional durability and a clean, premium finish.
