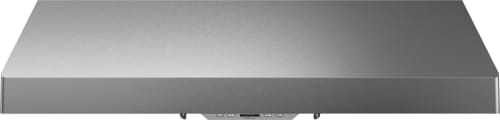

Zephyr Tempest I AK7048DS - 48 Inch Under Cabinet Range Hood
Zephyr Tempest I AK7048DS - 48 Inch Under Cabinet Range Hood
Zephyr Tempest I AK7048DS - 48 Inch Under Cabinet Range Hood
Zephyr Tempest I AK7048DS - 48 Inch Under Cabinet Range Hood
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Tempest I AK7048DS
Authorized
Dealer

Zephyr Tempest I
AK7048DS
Under Cabinet Range Hood with 5 Fan Speeds, 650 CFM Internal Blower, Airflow Control Technology™ (ACT™), TruHue™ Lighting Technology, Professional Pro Baffle Filters, and ADA Compliant with Remote Accessory: 48 Inch Width

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 47 15/16 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
WiFi: No
Remote Control: Yes
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 5
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 48 Inch Width
36 Inch Width
36 Inch Width
AK7036DS
$1,499.00
42 Inch Width
42 Inch Width
AK7042DS
$1,599.00
In stock
48 Inch Width
48 Inch Width
AK7048DS
$1,899.00
In stock
$1,899.00
MSRP: $1,999.00
You save $100.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Zephyr
Series: Tempest I
Model: AK7048DS
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 47 15/16 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
Smart
WiFi: No
Remote Control: Yes
Smart Accessory Required: No
Capacity
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 5
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

Under Cabinet Range Hood with 5 Fan Speeds
The Zephyr Tempest I Under-Cabinet Hood combines powerful ventilation with a sleek stainless steel design. Its 650 CFM blower, 5-speed electronic controls, and Auto Delay-Off help clear smoke, steam, and cooking odors efficiently. LED lighting and professional-style baffle filters add convenient illumination and easy maintenance, while convertible venting provides flexible installation options.

Specifications

General
Series:
Tempest I
Collection:
Pro Collection
Hood Type:
Under Cabinet
Style:
Canopy Pro Style
Finish:
Stainless Steel
Installation:
Under Cabinet
Venting Type:
Convertible
Ducting:
Vertical / Horizontal
Vertical Duct:
8" Round
Horizontal Duct:
8" Round or 3-1/4" x 10"
Blower Type:
Internal
Blower Included:
Yes
Standard CFM:
200–650 CFM
ACT CFM:
200–390 CFM / 200–290 CFM
Optional Dual Blower:
400–1,200 CFM
Standard Sones:
1–7
Dual Blower Sones:
3–10
Speed Levels:
5
Controls:
Electronic LCD
Lighting:
LumiLight LED
Number of Lights:
2
Light Wattage:
6W each
Lighting Levels:
2
Lighting Technology:
TruHue™
Filter Type:
Professional Pro Baffle
Filters Included:
2
Filter Dishwasher Safe:
Yes
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Airflow Control Technology (ACT™):
Yes
Wireless Remote:
Optional RF
Recirculating:
Yes, optional kit
ADA Compliant:
Yes, with optional remote
Power Cord:
No
Energy Star:
No
Wi-Fi:
No
Bluetooth:
No
Outdoor Use:
No
Electrical
Voltage:
120V
Maximum Amperage:
5A
Hertz:
60 Hz
Dimensions & Weight
Width:
47 15/16"
Depth:
22 1/2"
Height:
11"
Product Weight:
lbs

Features

Airflow Control Technology™ (ACT™)
  • Allows the installer to limit maximum airflow to 390 CFM or 290 CFM to meet local ventilation requirements.
650 CFM Internal Blower
  • Provides powerful ventilation for smoke, steam, grease, and cooking odors.
Optional 1,200 CFM Dual Blower
  • Supports higher airflow performance when the optional dual-blower configuration is installed.
Electronic LCD Controls
  • Provides convenient electronic control of hood functions.
5-Speed Settings
  • Offers multiple airflow levels for different cooking needs. ACT operation reduces the available maximum speed levels.
Auto Delay-Off
  • Keeps the blower running after cooking to help clear remaining smoke and odors.
CleanAir Function
  • Automatically activates the blower periodically to help maintain kitchen air quality.
LumiLight™ LED Lighting
  • Two 6W LED lights provide energy-efficient illumination over the cooking surface.
Dual-Level Lighting
  • Offers two lighting levels for flexible task lighting.
TruHue™ Lighting Technology
  • Designed to provide more accurate color rendering from the hood lighting.
Professional Pro Baffle Filters
  • High-airflow stainless-steel baffle filters designed for efficient grease capture.
Dishwasher-Safe Filters
  • Filters can be cleaned conveniently in the dishwasher.
Welded & Polished Stainless-Steel Body
  • Provides a seamless, professional-style appearance.
Convertible Venting
  • Can be configured for ducted or ductless installation with the appropriate optional kit.
Vertical or Horizontal Ducting
  • Supports flexible ventilation installation options.
Optional Ductless Recirculating Kit
  • Allows the hood to recirculate filtered air when exterior ducting is not possible.
Optional Wireless RF Remote Control
  • Allows remote operation of hood functions and enables ADA-compliant operation.
ADA Compliant with Remote Accessory
  • Can meet ADA accessibility requirements when used with the optional remote control.
11" Body Height
  • Low-profile hood body designed for under-cabinet installation.
Pro-Style Under-Cabinet Design
  • Streamlined professional-style hood designed to install beneath cabinetry.
Stainless Steel Finish
  • Professional stainless-steel exterior for a coordinated kitchen appearance.
Key Features
Airflow Control Technology™ (ACT™)
Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting with TruHue™
A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.
