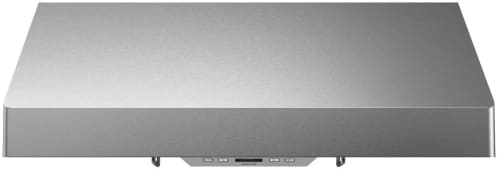

Zephyr Tempest I AK7036DS - Tempest I 36-Inch Stainless Steel Under Cabinet Range Hood
Zephyr Tempest I AK7036DS - Tempest I 36-Inch Stainless Steel Under Cabinet Range Hood
Zephyr Tempest I AK7036DS - Tempest I 36-Inch Stainless Steel Under Cabinet Range Hood
Zephyr Tempest I AK7036DS - Tempest I 36-Inch Stainless Steel Under Cabinet Range Hood
+8

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr Tempest I AK7036DS
Authorized
Dealer

Zephyr Tempest I
AK7036DS
Under Cabinet Range Hood with 5 Fan Speeds, 650 CFM Internal Blower, Airflow Control Technology™ (ACT™), TruHue™ Lighting Technology, Professional Pro Baffle Filters, and ADA Compliant with Remote Accessory: 36 Inch Width

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 35 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
WiFi: No
Remote Control: Yes
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 5
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 36 Inch Width
36 Inch Width
36 Inch Width
AK7036DS
$1,499.00
42 Inch Width
42 Inch Width
AK7042DS
$1,599.00
In stock
48 Inch Width
48 Inch Width
AK7048DS
$1,899.00
In stock
$1,499.00
MSRP: $1,599.00
You save $100.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Series: Tempest I
Model: AK7036DS
Appearance
Style: Standard Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 35 7/8 Inch
Depth: 22 1/2 Inch
Height: 11 Inch
Smart
WiFi: No
Remote Control: Yes
Smart Accessory Required: No
Capacity
CFM: 650 CFM
Permanent Air Flow Reduction: Yes
Noise Level: 7 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 5
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 5
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

Under Cabinet Range Hood with 5 Fan Speeds
The Zephyr Tempest I Under-Cabinet Hood combines powerful ventilation with a sleek stainless steel design. Its 650 CFM blower, 5-speed electronic controls, and Auto Delay-Off help clear smoke, steam, and cooking odors efficiently. LED lighting and professional-style baffle filters add convenient illumination and easy maintenance, while convertible venting provides flexible installation options.

Specifications

General
Series:
Tempest I
Collection:
Pro Collection
Hood Type:
Under Cabinet
Style:
Canopy Pro Style
Finish:
Stainless Steel
Installation:
Under Cabinet
Venting Type:
Convertible
Ducting:
Vertical / Horizontal
Vertical Duct:
8" Round
Horizontal Duct:
8" Round or 3-1/4" x 10"
Blower Type:
Internal
Blower Included:
Yes
Standard CFM:
200–650 CFM
ACT CFM:
200–390 CFM / 200–290 CFM
Optional Dual Blower:
400–1,200 CFM
Standard Sones:
1–7
Dual Blower Sones:
3–10
Speed Levels:
5
Controls:
Electronic LCD
Lighting:
LumiLight LED
Number of Lights:
2
Light Wattage:
6W each
Lighting Levels:
2
Lighting Technology:
TruHue™
Filter Type:
Professional Pro Baffle
Filters Included:
2
Filter Dishwasher Safe:
Yes
Auto Delay-Off:
Yes
CleanAir Function:
Yes
Airflow Control Technology (ACT™):
Yes
Wireless Remote:
Optional RF
Recirculating:
Yes, optional kit
ADA Compliant:
Yes, with optional remote
Power Cord:
No
Energy Star:
No
Wi-Fi:
No
Bluetooth:
No
Outdoor Use:
No
Electrical
Voltage:
120V
Maximum Amperage:
5A
Hertz:
60 Hz
Dimensions & Weight
Width:
35 7/8"
Depth:
22 1/2"
Height:
11"
Product Weight:
46.5 lbs

Features

Airflow Control Technology™ (ACT™)
  • Allows the installer to limit maximum airflow to 390 CFM or 290 CFM to meet local ventilation requirements.
650 CFM Internal Blower
  • Provides powerful ventilation for smoke, steam, grease, and cooking odors.
Optional 1,200 CFM Dual Blower
  • Supports higher airflow performance when the optional dual-blower configuration is installed.
Electronic LCD Controls
  • Provides convenient electronic control of hood functions.
5-Speed Settings
  • Offers multiple airflow levels for different cooking needs. ACT operation reduces the available maximum speed levels.
Auto Delay-Off
  • Keeps the blower running after cooking to help clear remaining smoke and odors.
CleanAir Function
  • Automatically activates the blower periodically to help maintain kitchen air quality.
LumiLight™ LED Lighting
  • Two 6W LED lights provide energy-efficient illumination over the cooking surface.
Dual-Level Lighting
  • Offers two lighting levels for flexible task lighting.
TruHue™ Lighting Technology
  • Designed to provide more accurate color rendering from the hood lighting.
Professional Pro Baffle Filters
  • High-airflow stainless-steel baffle filters designed for efficient grease capture.
Dishwasher-Safe Filters
  • Filters can be cleaned conveniently in the dishwasher.
Welded & Polished Stainless-Steel Body
  • Provides a seamless, professional-style appearance.
Convertible Venting
  • Can be configured for ducted or ductless installation with the appropriate optional kit.
Vertical or Horizontal Ducting
  • Supports flexible ventilation installation options.
Optional Ductless Recirculating Kit
  • Allows the hood to recirculate filtered air when exterior ducting is not possible.
Optional Wireless RF Remote Control
  • Allows remote operation of hood functions and enables ADA-compliant operation.
ADA Compliant with Remote Accessory
  • Can meet ADA accessibility requirements when used with the optional remote control.
11" Body Height
  • Low-profile hood body designed for under-cabinet installation.
Pro-Style Under-Cabinet Design
  • Streamlined professional-style hood designed to install beneath cabinetry.
Stainless Steel Finish
  • Professional stainless-steel exterior for a coordinated kitchen appearance.
Key Features
Airflow Control Technology™ (ACT™)
Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
LumiLight LED Lighting with TruHue™
A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue™ anywhere from 2700K to 5000K.
