Description

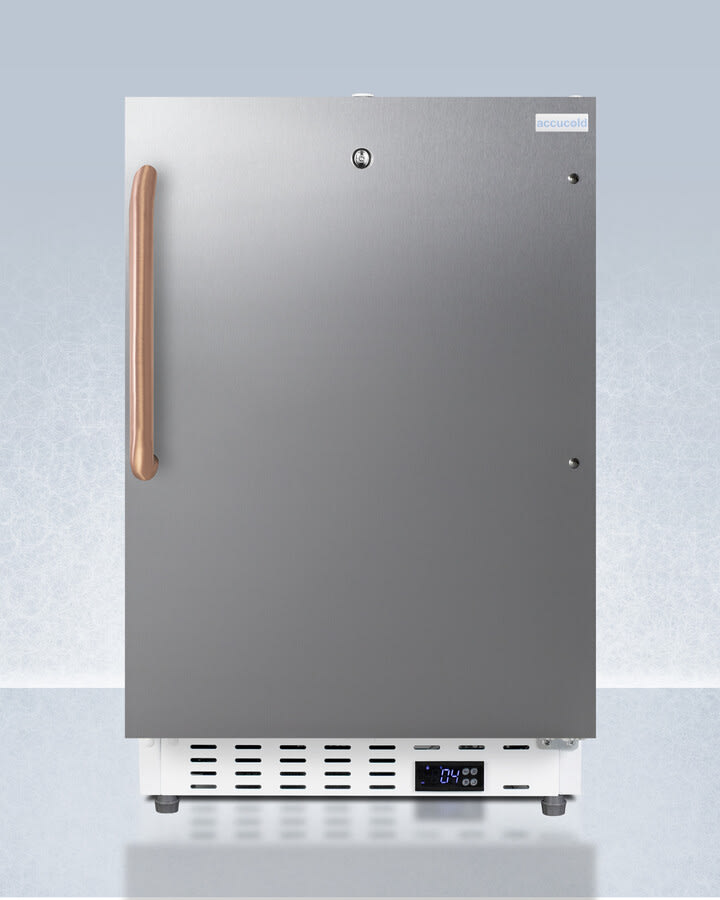

20 Inch Built-In Undercounter Freezer with 2.47 cu. ft. Capacity
Accucold offers a quality selection of 20" wide built-in undercounter all freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.
The ADA305AFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal. The ADA305AFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.
Inside, the ADA305AFSSTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu. ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AFSSTBC makes an ideal choice for various facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSTBC all-refrigerator.
Note
Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
Specifications
Overview
Temperature Range:
-25° to -15°C
Features
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
31 3/4"
Width with Door Open:
20 1/4"
Depth with Door at 90°:
40 1/4"
Compressor Step Height:
5 3/4"
Compressor Step Width:
14 1/2"
Compressor Step Depth:
6"
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Features
2.47 cu. ft. Capacity
- Slim-fitting ADA compliant undercounter freezer ideal for providing extra storage to small-spaced medical settings
3 Slide-Out Baskets
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Factory-Installed Lock
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Adjustable Digital Thermostat
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Access Port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Temperature Alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open Door Alarm
- Audible alarm will sound if the door is left ajar for over a minute
No Internal Fans
- Temperature remains more stable with a static cooling system
Manual Defrost
- More temperature stability with an energy efficient manual defrost system
-25°C capable
- Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Flat Door Liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
3" Thick Door
- Improved insulation for an efficient performance. If installing this freezer against a wall, please see the drawings to ensure adequate space
- Note: Due to the oversized design, the door does not open in its own radius
Copper Handle
- Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
Reversible Stainless Steel Door
- User-reversible stainless steel door for added flexibility to best accommodate your setting
Built-In Capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
Matching All-Refrigerator
- This unit can be paired with the ADA404REFSSTBC all-refrigerator for a complete set
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA Compliant
- 32" height allows easy installation under lower ADA compliant counters
Additional Features
- Hospital Grade Cord with 'Green Dot' Plug
- Fully Finished White Cabinet
