Description
20 Inch Built-In Undercounter Freezer with 2.47 cu. ft. Capacity
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions.
The ADA305AFSSHV is sized at 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal.
Inside, the ADA305AFSSHV can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 20" wide, the ADA305AFSSHV makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSHV all-refrigerator.
Specifications
Overview
Temperature Range:
-25° to -15°C
Features
Electrical Specifications
Voltage/Frequency:
115 V AC/60 Hz
Dimensions & Weight
Height of Cabinet:
31 3/4"
Depth with Door at 90°:
40 1/4"
Compressor Step Height:
5 3/4"
Compressor Step Width:
14 1/2"
Compressor Step Depth:
6"
Warranty
Parts & Labor Warranty:
1 Year
Compressor Warranty:
5 Years
Claims & Certifications
US Electrical Safety:
ETL
Canadian Electrical Safety:
ETL-C
Features
2.47 cu. ft. Capacity
- Slim-fitting all-freezer for general healthcare applications at an ADA-compliant height
3 Slide-Out Baskets
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Factory-Installed Lock
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Adjustable Digital Thermostat
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Access Port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Temperature Alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open Door Alarm
- Audible alarm will sound if the door is left ajar for over a minute
No Internal Fans
- Temperature remains more stable with a static cooling system
Manual Defrost
- More temperature stability with an energy efficient manual defrost system
-25°C Capable
- Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Flat Door Liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Professional Stainless Steel Handle
- Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Reversible Door
- User-reversible door swing for added flexibility to best accommodate your setting
Built-In Capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
Matching All-Refrigerator

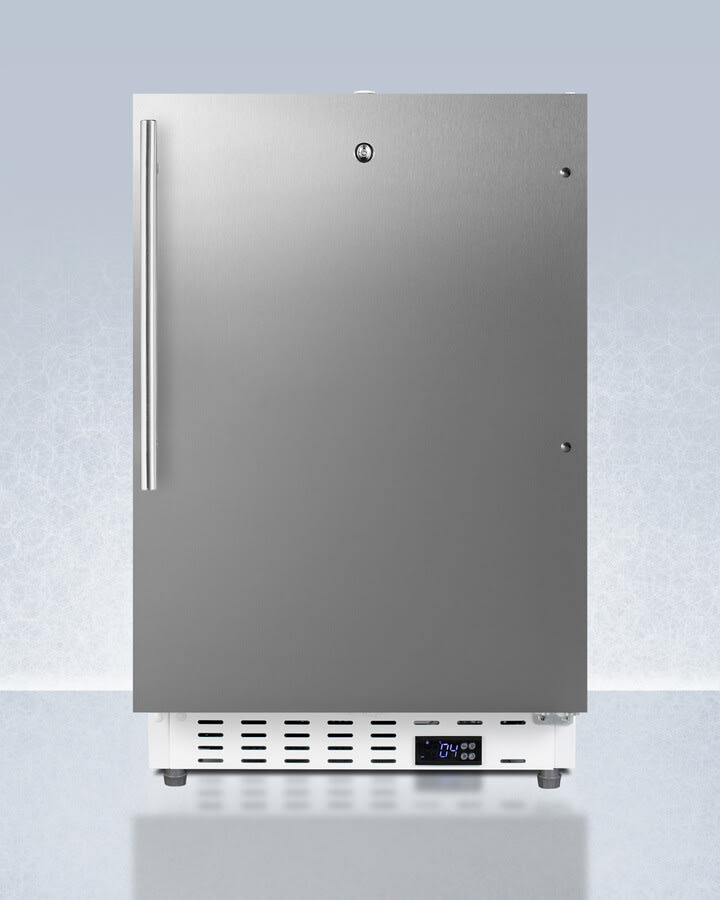

- This unit can be paired with the ADA404REFSSHV all-refrigerator for a complete set
100% CFC Free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA Compliant
- 32" height allows easy installation under lower ADA compliant counters
Additional Features
- Hospital Grade Cord with 'Green Dot' Plug
- Fully Finished White Cabinet
- Stainless Steel Wrapped Door
