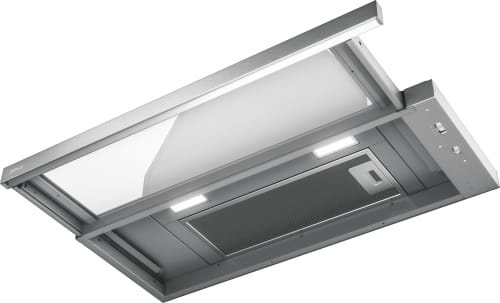

Zephyr ZPIE36BG - 36 Inch Pisa Under-Cabinet Hood
Zephyr ZPIE36BG - 36 Inch Pisa Under-Cabinet Hood
Zephyr ZPIE36BG - Stainless Steel Trim with Glass
Zephyr ZPIE36BG - Aluminum Mesh Filter / LumiLight LED Lighting
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr ZPIE36BG
Authorized
Dealer

Zephyr
ZPIE36BG
36 Inch Pisa Under-Cabinet Range Hood with 3-Speed Levels, Mechanical Slide Controls, LumiLight LED Lighting, Aluminum Mesh Filters, Value Driven, Low-Profile Body, and UL Listed: 500 CFM

Top Quality Store on Google
Only 2 left in stock
quick specs
Style: Slide-Out Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 35 7/8 Inch
Depth: 18 3/4 Inch
Height: 11 1/4 Inch
WiFi: No
Remote Control: No
CFM: 500 CFM
Noise Level: 5.3 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 3
Lights: LED
Delay Shut-Off: No
View more
Width:
36 Inch
24 Inch
Subtract $50.00
30 Inch
Subtract $50.00
36 Inch
Color:
Stainless Steel
Stainless Steel
White - Not available with this selection
CFM:
500 CFM
290 CFM
Same Price
500 CFM
$899.00
MSRP: $999.00
You save $100.00
OR
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Model: ZPIE36BG
MPN: ZPI-E36BG
Appearance
Style: Slide-Out Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: Yes
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 35 7/8 Inch
Depth: 18 3/4 Inch
Height: 11 1/4 Inch
Smart
WiFi: No
Bluetooth: No
Remote Control: No
Capacity
CFM: 500 CFM
Noise Level: 5.3 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Voltage: 120 Volts
GTIN
UPC: 646328009709
Are you a Trade Pro? Join Now

Description

36 Inch Pisa Under-Cabinet Range Hood with 3-Speed 500 CFM Blower
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 500-CFM or 290-CFM blower, Pisa's low-profile body delivers the stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.

Specifications

Overview
Size:
36"
Color:
Stainless Steel Trim with Glass
Controls:
Mechanical Slide
Speed Levels:
3
Auto Delay-Off:
No
Lighting:
LumiLight LED, 6W x 2
Dual-Level Lighting:
Yes
Filters:
Aluminum Mesh x 1
Recirculating Option:
Yes
Blower Performance
Blower CFM (Min. - Max.):
230 - 500
Sones (Min. - Max.):
1.7 - 5.3
Duct Specifications
Vertical Internal Blower:
6" Round
Horizontal Internal Blower:
6" Round
Electrical Specifications
AC Power:
120V, 60Hz at Max. 3A
Dimensions
Mounting Height Range:
Electrical Cooktop 20" - 32" / Gas Cooktop 24" - 32"
Width:
35 7/8"
Depth:
18 3/4"
Height:
11 1/4"
Warranty
Parts:
3 Years
Labor:
1 Year
Optional Accessories
Recirculating Kit:
ZRC-00PI

Features

3-Speed
  • Allow you to adjust ventilation to meet your needs.
Mechanical Slide Controls
  • Offer simple operation.
Dual-Level LumiLight LED Lighting
  • Dual levels of light offer the perfect mood option for your kitchen.
Aluminum Mesh Filters
  • Easy to clean dishwasher safe filters and effectively removes grease and odors.
Vertical or Horizontal Ducting
  • It gives the performance and flexibility you need.

Additional Features

  • Multiple Color Options
  • Value Driven
  • Low-Profile Body
  • UL Listed
Warranty
  • Parts 3 Years
  • Labor 1 Year
