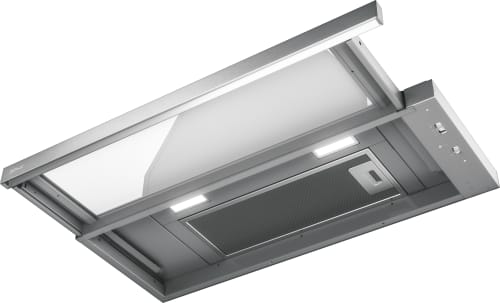

Zephyr ZPIE24BG290 - 24 Inch Pisa Under-Cabinet Hood
Zephyr ZPIE24BG290 - 24 Inch Pisa Under-Cabinet Hood
Zephyr ZPIE24BG290 - Stainless Steel Trim with Glass
Zephyr ZPIE24BG290 - 30 Inch Model Shown (Aluminum Mesh Filter / LumiLight LED Lighting)
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zephyr ZPIE24BG290
Authorized
Dealer

Zephyr
ZPIE24BG290
24 Inch Pisa Under-Cabinet Range Hood with 3-Speed 290 CFM Blower, Mechanical Slide Controls, LumiLight LED Lighting, Aluminum Mesh Filters, Value Driven, Low-Profile Body, and UL Listed: Stainless Steel Trim with Glass

Top Quality Store on Google
quick specs
Style: Slide-Out Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 23 7/8 Inch
Depth: 18 3/4 Inch
Height: 11 1/4 Inch
WiFi: No
Remote Control: No
CFM: 290 CFM
Noise Level: 3.2 Sones
Duct Size: 6 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: No
View more
Width:
24 Inch
24 Inch
30 Inch
Same Price
36 Inch
Add $50.00
Color:
Stainless Steel
Stainless Steel
White - Not available with this selection
CFM:
290 CFM
290 CFM
500 CFM
Same Price
$849.00
MSRP: $949.00
You save $100.00
OR

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: Zephyr
Model: ZPIE24BG290
MPN: ZPI-E24BG290
Appearance
Style: Slide-Out Hood
Type: Hood
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: Yes
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 23 7/8 Inch
Depth: 18 3/4 Inch
Height: 11 1/4 Inch
Smart
WiFi: No
Bluetooth: No
Remote Control: No
Capacity
CFM: 290 CFM
Noise Level: 3.2 Sones
Duct Size: 6 Inch
Features
Number of Fan Speeds: 3
Filter Type: Mesh
Dishwasher Safe Filters: Yes
Lighting Levels: 2
Lights: LED
Delay Shut-Off: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 646328009648
Are you a Trade Pro? Join Now

Description

24 Inch Pisa Under-Cabinet Range Hood with 3-Speed 290 CFM Blower
Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 290-CFM blower, Pisa's low-profile body delivers the stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.

Specifications

Overview
Size:
24"
Color:
Stainless Steel Trim with Glass
Controls:
Mechanical Slide
Speed Levels:
3
Auto Delay-Off:
No
Lighting:
LumiLight LED, 6W x1
Dual-Level Lighting:
Yes
Filters:
Aluminum Mesh x 1
Recirculating Option:
Yes
Blower Performance
Blower CFM (Min. - Max.):
180 - 290
Sones (Min. - Max.):
1.3 - 3.2
Duct Specifications
Vertical Internal Blower:
6" Round
Horizontal Internal Blower:
6" Round
Electrical Specifications
AC Power:
120V, 60Hz at Max. 2A
Dimensions
Mounting Height Range:
Electrical Cooktop 20" - 32" / Gas Cooktop 24" - 32"
Width:
23 7/8"
Depth:
18 3/4"
Height:
11 1/4"
Warranty
Parts:
3 Years
Labor:
1 Year
Optional Accessories
Recirculating Kit:
ZRC-00PI

Features

3-Speed
  • Allow you to adjust ventilation to meet your needs.
290 CFM Blower
  • Remove smoke and odor with ease with a powerful internal blower.
Mechanical Slide Controls
  • Offer simple operation.
Dual-Level LumiLight LED Lighting
  • Dual levels of light offer the perfect mood option for your kitchen.
Aluminum Mesh Filters
  • Easy to clean dishwasher safe filters and effectively removes grease and odors.
Vertical or Horizontal Ducting
  • It gives the performance and flexibility you need.

Additional Features

  • Multiple Color Options
  • Value Driven
  • Low-Profile Body
  • UL Listed
Warranty
  • Parts 3 Years
  • Labor 1 Year
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Guide
Owners Guide
Parts Guide
HVAC Fitting
Recirculating Kit Installation
