Monogram ZDT800SSYSS - 24 Inch Fully Integrated Dishwasher - Stainless Steel
Monogram ZDT800SSYSS - 24 Inch Fully Integrated Dishwasher - Stainless Steel
Monogram ZDT800SSYSS - 24 Inch Fully Integrated Dishwasher - Stainless Steel
Monogram ZDT800SSYSS - 24 Inch Fully Integrated Dishwasher - Stainless Steel
+17

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Monogram ZDT800SSYSS
Authorized
Dealer

Monogram
ZDT800SSYSS
24 Inch Built-In Fully Integrated Smart Tall Tub Dishwasher with 16 Place Setting Capacity, Full Third Rack, 42 dBA Quiet Operation, LED Lighting, Dual Dry System, 3 Pressurized Wash Arms, Sabbath Mode, NSF Certified, and ENERGY STAR® Certified

Top Quality Store on Google
quick specs
Width: 23 3/4 Inch
Depth: 24 Inch
Height: 33 3/4 Inch
Capacity: 16 Place Settings
Control Type: Touch Sensor
Adjustable Upper Rack: Yes
Third Rack Type: Full Size
Stainless Steel Interior: Yes
WiFi: Yes
Cycles: 7
Delay Start: Yes
Dry Type: Heated & Vented
High Temperature Wash: Yes
NSF Certified Rinse: Yes
Quick Wash Setting: Yes
Sensor Clean: Yes
Warranty Terms: 2 years
?
View more
$2,200.00
MSRP: $2,420.00
You save $220.00
OR
FREE Delivery Available

Available

Available Items currently on their way to our warehouse or stocked at a vendor's or manufacturer's facility are marked as "Available." Once we've received your items, we aim to ship these products within 24-48 business hours. If there's any change to this schedule, we'll promptly send you an email detailing your order's Estimated Arrival, including specific shipping dates. Rest assured, we're committed to informing you every step of the way, ensuring you know exactly when to expect your purchase.
You Will Also Need:
Dishwasher Installation Kit
+ $34.99
Current Offers
Monogram: One For You, One For Free Expires 12/31/2026
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

24 Inch Smart Panel Ready Commercial Column Refrigerator
Monogram
24 Inch Smart Panel Ready Commercial Column Refrigerator
$7,950.00

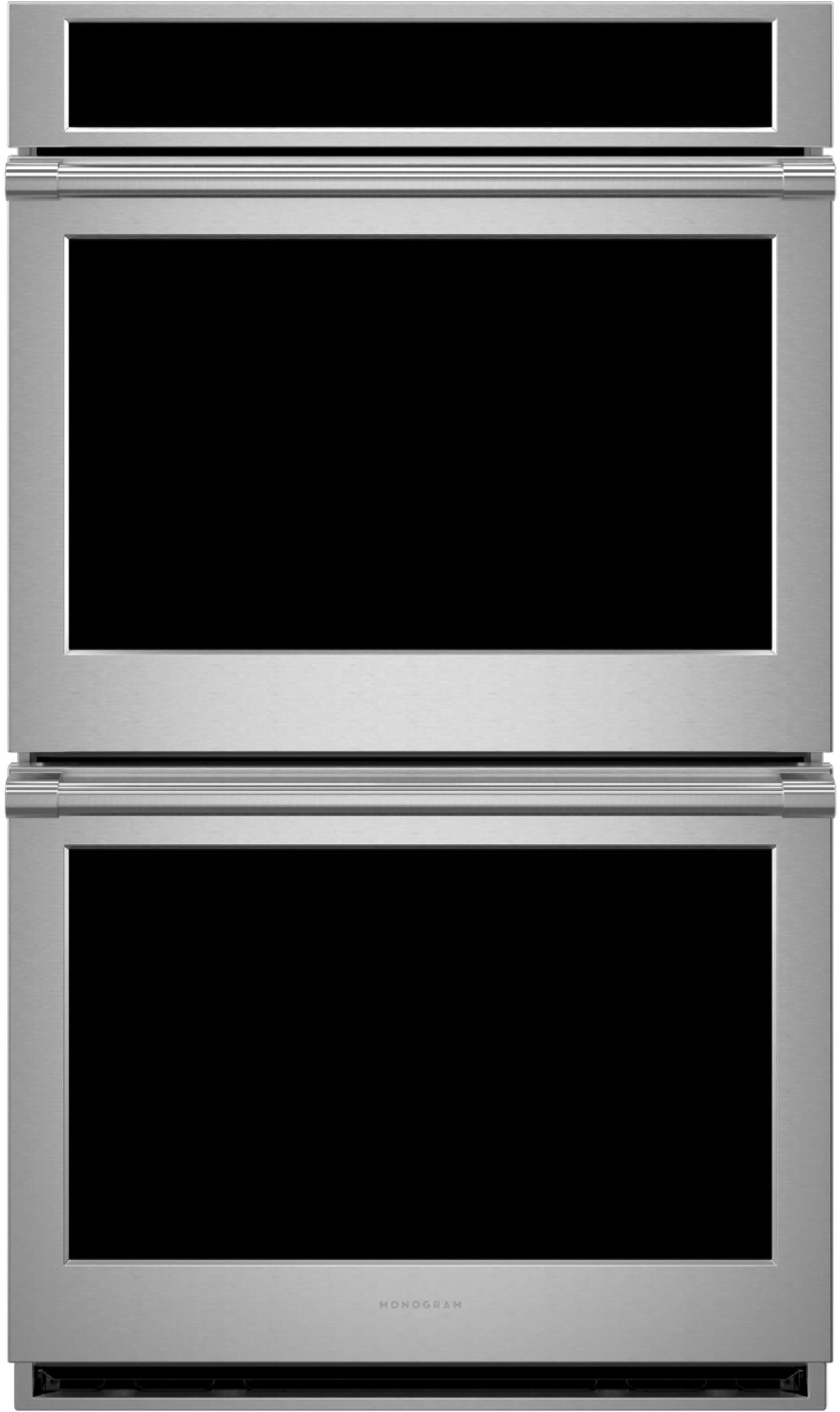

30 Inch Double Smart Electric Wall Oven
Monogram
30 Inch Double Smart Electric Wall Oven
$7,500.00
Product Information
Brand: Monogram
Model: ZDT800SSYSS
Warranty Terms: 2 years
?
Dimensions
Width: 23 3/4 Inch
Depth: 24 Inch
Height: 33 3/4 Inch
Cutout Width: 24 Inch
Cutout Depth: 24 Inch
Cutout Height: 34 1/2 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: None
Capacity
Capacity: 16 Place Settings
Appearance
Type: Built In
Color: Stainless Steel
Accepts Panels: No
Features
Control Type: Touch Sensor
Electronic Display: Yes
Control Style: Fully Integrated
Recessed Handles: No
Child Lock: Yes
Adjustable Upper Rack: Yes
Fold-Down Tines: Yes
Rack Material: Nylon
Third Rack Type: Full Size
Cutlery Tray: Yes
Cup Shelves: Yes
Stemware Holder: Yes
Tall Tub: Yes
Stainless Steel Interior: Yes
Number of Spray Arms: 3
Rinse Aid Dispenser: Yes
Water Filtration: Yes
Water Heating: Yes
Fingerprint Resistant: No
Leveling Legs: Yes
Interior Light: Yes
Auto Detergent Dispenser: No
Smart Home / App Compatible: Yes
Smart Home Protocol / App Compatible: Amazon Alexa, Amazon Dash Replenishment, Google Home, IFTTT, Sonos, The Google Assistant
Remote Access: Yes
Smart
WiFi: Yes
Alexa: Yes
Google Home: Yes
Remote Control: Yes
Remote Monitoring: Yes
Remote Diagnostics: No
Dash Replenishment: Yes
App Integration: SmartHQ
Smart Accessory Required: No
AI Technology: No
Wash Features
Cycles: 7
Options: 11
Delay Start: Yes
Dry Type: Heated & Vented
Hard Food Disposer: Yes
High Temperature Wash: Yes
NSF Certified Rinse: Yes
Quick Wash Setting: Yes
China/Crystal Setting: Yes
Sanitize Cycle: Yes
Sensor Clean: Yes
Heavy Duty Cycle: Yes
Sound Level: 40 dB
Leak Protection: Yes
Rinse & Hold: Yes
Steam Wash: Yes
Half Load Option: Yes
Delicate Wash: Yes
Technical Details
Energy Star Rated: Yes
CEE Rating: Tier I
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
Watts: 1,296 Watts
GTIN
UPC: 084691968368
Are you a Trade Pro? Join Now

Description

24 Inch Built-In Fully Integrated Dishwasher with 16 Place Settings
This dishwasher combines powerful performance with thoughtful design to elevate everyday cleaning. Operating at an ultra-quiet 40 dBA, it delivers exceptional results without disrupting your home environment. The spacious third rack offers dedicated room for utensils and flatware, while the advanced wash system—featuring over 70 targeted jets, including bottle and flatware jets—ensures a thorough 360° clean. Its dual dry system uses precision-controlled fans and heaters to gently dry even delicate items like champagne flutes. Inside, brilliant surround LED lighting illuminates the entire interior, making loading and unloading effortless.

Specifications

Product Overview
Product Type:
Built-In, Fully Integrated Dishwasher
Color Appearance:
Stainless Steel
Design Style:
Minimalist Collection, Statement Collection (depending on Handle)
Door Style:
Long Door with Top Controls
Installation:
True Flush
Handle:
Minimalist (ZXADH1MNYSS) or Statement (ZXADH1STYSS) handles (purchased separately)
Handle Color:
Stainless Steel
Tub and Door Liner:
Stainless Steel
Interior Lighting:
LED
Power / Ratings
Sabbath Mode:
Yes
Hertz:
60
WiFi Connect:
Built-In
Watts:
1296
Electrical Requirements:
120 V; 60 Hz; 15 or 20 Amp Circuit
Amps:
10.2 A
Power Connection:
Factory installed - w/offset flat plug, optional hardwire kit WD21X23559
Calrod Heater Watts:
1200
Energy Consumption (kWh/year):
240
Features
Wash System:
Advanced Wash System with 70+ Water Jets and 5 Pressurized Wash Zones
Wash System Features:
3 Pressurized Wash Arms (Upper Nozzle, Middle Wash Arm, Lower Wash Arm), Automatic Temperature Control with Hidden Heater, Variable Speed Dual Pumps and Motors
Drying System:
Max Dry System with Dual Fans and Heaters
Steam & Sanitization:
Steam + Sani feature loosens food and sanitizes dishes
Bottle & Silverware Jets:
Targeted jets for bottles and deep-cleaning silverware
Hard Food Disposer:
Stainless steel blades with removable filter
Sensor:
Clean Sensor
Tub Type:
Tall Tub
Number of Place Settings:
16
Racking System:
Full 3rd Rack
Third Rack:
Expansive rack for utensils and serve-ware
Upper Rack:
Premium height adjustable, fold-down tines, stem safe shelves
Lower Rack:
Multi-position fold-down tines with rack handle
Cutlery Tray:
Full-extension smooth glide with wash manifold, partially removable
Rack Features:
Ball-Tipped Tines, Adjustable Upper Rack, Fold-Down Tines, Silverware Basket
Dispenser:
Rinse Aid with indicator and adjustment
Water Filtration System:
100% Filtration with disposer and removable filter
Controls & Connectivity
Control Type:
Intuitive LCD Touch Controls
Display:
Hi-Resolution Color LCD with cycle status bar
WiFi Features:
SmartHQ app control and monitoring
Connected Capabilities:
Amazon Alexa, Google Home, IFTTT, Sonos
App Connected:
Remote access, alerts, and updates
Dishwasher Control Features:
Audible End-of-Cycle Signal, Last Cycle Memory, Child Lock
Cycles & Options
Number of Cycles:
7
Dishwasher Cycles:
1 Hour Wash & Dry, Auto, Crystal, Dishwasher Cleaning, Favorites, Intense, Normal, PrepRinse
Number of Options:
11
Dishwasher Options:
Delay Start 1–12 Hr., Heated Dry, Pre Soak, Sani (NSF Certified), Bottle Wash, Silverware Wash, Wash TempBoost, Upper/Lower Wash Zones
Economical / Quiet
Quiet Features:
42 dBA in Normal Cycle
Motor Type:
Variable Speed
Outer Wrap:
Bitumen + Full-wrap Blanket
Door Insulation:
Mastic
Weights & Dimensions
Overall Width:
23.75"
Overall Height:
33.75" - 34.625"
Overall Depth:
24"
Overall Depth with Handle:
26"
Depth with Door Open:
25.5"
Depth Without Handle:
24"
Cabinet Width:
24"
Cutout Width:
24"
Cutout Depth:
24"
Cutout Height:
34.5" - 35"
Minimum Cabinet Width:
24"
Door Clearance:
25.5"
Net Weight:
126 lbs.
Approximate Shipping Weight:
139 lbs.
Certificates
Energy Star Rated:
Yes
CEE Rating:
CEE Tier I
NSF Certified Rinse:
Yes

Features

42 dBA Quiet Operation
  • Harmonizing power and serenity, this dishwasher delivers flawless cleaning at an ultra-quiet 42 dBA during the Normal cycle.
Flush Installation Capability
  • Designed for seamless integration, this dishwasher can be installed flush with cabinetry, including inset applications.
Third Rack
  • An expansive third rack provides the perfect space for utensils, flatware, and serveware, maximizing loading flexibility.
Advanced Wash System
  • Achieve a superior clean with over 70 powerful water jets delivering a full 360° wash that reaches every corner of the tub.
Max Dry System
  • A precise and efficient drying system ensures dishes come out beautifully dry every time—even hard-to-dry items like delicate glassware.
LED Illuminated Interior
  • Bright LED lighting fully illuminates the interior, making loading and unloading easier and more convenient.
Steam & Sanitization
  • Skip pre-washing with a Steam + Sani feature that loosens tough, stuck-on food while delivering complete sanitization.
Bottle & Silverware Jets
  • Specially designed jets target hard-to-reach areas, thoroughly cleaning tall bottles and deeply soiled silverware.
Intuitive LCD Touch Controls
  • Easily select cycles and customize settings with sleek glass touch controls and a clear, responsive LCD display.
Hard Food Disposer
  • Maintain efficiency with a stainless steel blade disposer that grinds food particles, preventing clogs and redepositing.
WiFi Connected with SmartHQ
  • Built-in WiFi and SmartHQ app compatibility allow you to monitor and control your dishwasher from anywhere.
Handles Sold Separately
  • Customize your dishwasher’s appearance with optional Statement or Minimalist collection handles.
Delayed Wash
  • Enjoy flexible scheduling with a delayed start option, and use the PrepRinse™ cycle to prevent food from drying before the main wash begins.
