Description

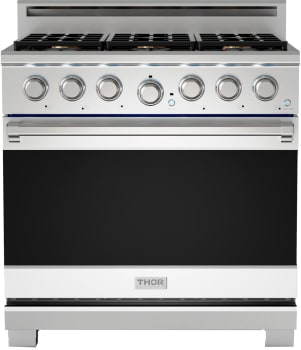

X Series 36 Inch Freestanding Gas Range with 6 Sealed Burners
The Thor XRG36ELP is a 36-inch professional-style gas range designed for serious home cooks, combining a powerful cooktop with a spacious oven. It features six sealed burners, including a high-intensity one, for a wide range of heat settings from a high-powered boil to a delicate simmer, all on continuous cast-iron grates that allow you to easily slide cookware. The large-capacity oven includes a commercial-style convection fan for even cooking and a stylish blue porcelain interior for easy cleanup. The entire unit is built with a heavy-duty stainless steel finish, providing both durability and a sleek, modern look.
Specifications
Technical Details
Installation Type:
Freestanding
Burner Type:
Sealed Burners
Type of Grate:
Continuous
Max BTU:
22000 BTU (Dual) Simmer1000 BTU
Required Circuit:
15 Amp Dedicated Circuit
Plug Type:
NEMA 5-15P / US 3-prong
Cooking Burner Configuration
Total Number Of Cooktop Burners:
6
[1] Front Left Burner:
15000 BTU
[2] Rear Left Burner:
12000 BTU
[3] Front Center Burner:
22000 BTU (Dual) Simmer 1000 BTU
[4] Rear Center Burner:
12000 BTU
[5] Front Right Burner:
15000 BTU
[6] Rear Right Burner:
12000 BTU
OVEN PERFORMANCE
Oven Capacity:
6.0 cu. ft.
Oven Control Features:
Light on/ Off
Cooking Modes:
Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep warm, Pizza, Self-Clean
Bake Burner Power:
22000 BTU
Broil Burner Power:
16500 BTU Infrared Broiler
Oven Racks (telescopic):
2
Oven Rack Material:
Chrome Plated
Baking Sheet Size:
Fits Standard Three-Quarter Sheet Pan
Oven Internal Height:
18"
Oven Internal Width:
29 3/4"
Oven Internal Depth:
19 1/2"
Product Dimensions & Weights
Product Dimensions (WxDxH):
35 7/8” x 24 1/2” x 36 1/8”
Product Height (from bottom to top of backsplash):
41 1/2”
Product Height (from bottom to top of side panel):
32 7/8”
Product Depth (from back panel to bullnose):
28 1/2”
Product Depth (from back panel to control panel):
27 1/8”
Product Depth (from back panel to side panel front):
24 1/2”
Cutout Dimensions (WxDxH):
36” x 24” x 36”
Adjustable Leg Height:
3"
Package Dimensions (WxDxH):
39 1/6” x 30 1/8”x 49”
Accessories
Included:
2 Telescopic Racks and 1 Broiler Pan
Not Included:
LP Kit, Island Trim RG1022
Features
Italian Brass Burners with 22,000 BTU Dual Burner
- Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.
6.0 cu. ft. Oven Capacity
- Spacious oven easily fits large baking sheets, roasting pans, and multiple dishes at once.
Multi-Function Oven
- Dual Function Oven Control offers versatile cooking modes, including Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep warm, Pizza, and Self-Clean.
Continuous Cast-Iron Grates
- Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.
LuxGlide™ Telescopic Racks
- Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven.
- This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
Soft-Close Oven Door
- Gently closes for a quieter, more premium cooking experience.
Built-In Casters and Leveling Legs
- Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.
Infrared Broiler
- Infrared gas flame broiler radiates heat evenly to sear your food and seal in the juices.
Blue LED Illuminated Knobs
- Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
Automatic Re-ignition Feature
- Automatic re-ignition feature relights an extinguished flame for safer cooking.
