Description

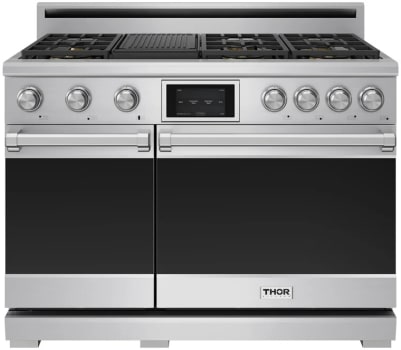

48 Inch Freestanding Dual Fuel Range with 7 Sealed Burners + Griddle
The THOR Kitchen XRD48E is a 48‑inch professional dual‑fuel range built for ambitious home chefs, featuring Italian brass burners including three powerful 22,000 BTU dual‑flame burners, a griddle burner, and additional high‑output burners for versatile cooktop performance. It includes a double oven configuration (4.8 cu ft and 2.2 cu ft) with independent temperature controls and a wide range of cooking modes such as Bake, Broil, Convection Bake/Roast, Air Fry, Proof, and Self‑Clean, all managed from a responsive tilt panel touch control. Premium touches like luxurious telescopic racks, soft‑close oven doors, continuous cast‑iron grates, blue LED-illuminated knobs, built‑in casters with leveling legs, and automatic re‑ignition enhance functionality and ease of use, while included accessories (broiler pan, air fry basket, meat probe, grill/griddle grate) expand versatility and convenience in the kitchen.
Specifications
General
Type:
Professional Dual Fuel Range
Installation Type:
Freestanding
Fuel Type:
Natural Gas + Electric
Control Type:
Knob / Touch Screen
Cooktop
Grate Type:
Continuous Cast Iron
Front Left Burner:
22,000 BTU Dual / 1,000 BTU Simmer
Front Center Burner:
22,000 BTU Dual / 1,000 BTU Simmer
Front Right Burner:
22,000 BTU Dual / 1,000 BTU Simmer
Griddle Burner:
9,000 BTU
Rear Left Burner:
15,000 BTU
Rear Center Burner:
15,000 BTU
Rear Right Burner:
12,000 BTU
Maximum Burner Output:
22,000 BTU
Automatic Re-Ignition:
Yes
Ovens
Oven Capacity:
4.8 cu. ft. + 2.8 cu. ft.
Total Oven Capacity:
7.0 cu. ft.
Convection:
True Convection
Convection Element:
1,300 W each
Oven Lights:
30": 2 / 18": 1
Oven Racks:
30": 2 Telescopic / 18": 2 Standard
Rack Material:
Chrome Plated
Cooking Modes:
Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe
Electrical Specifications
Required Circuit:
50 Amps Dedicated Circuit
Dimensions & Weights
Product Dimensions (WxDxH):
47 7/8" x 24 3/4" x 36 1/8"
Product Height (from bottom to top of backsplash):
41 3/8"
Product Height (from bottom to top of side panel):
32 7/8"
Product Depth (from back panel to bullnose):
28 1/2"
Product Depth (from back panel to control panel):
27 1/4"
Product Depth (from back panel to side panel front):
24 3/4"
Cutout Dimensions (WxDxH):
48" x 24" x 36"
Package Dimensions (WxDxH):
51 3/8" x 30 1/8" x 49"
Features
7 Sealed Burners + Griddle
- Seven sealed burners, including a dedicated griddle burner, provide versatile cooking options.
7.0 cu. ft. Total Capacity
- Spacious 7.0 cu. ft. combined oven capacity accommodates multiple dishes at once.
Continuous Cast-Iron Grates
- Heavy-duty continuous grates provide a durable, seamless surface for easily moving cookware.
Self-Clean
- The self-cleaning function helps remove baked-on food and grease with less manual cleaning.
Air Fry
- Air Fry mode delivers crisp, evenly cooked results with little to no added oil.
Tilt Panel Touch Control
- Adjustable touch control panel tilts for easier viewing and convenient operation.
Blue LED Illuminated Knobs
- Backlit knobs provide clear visibility and indicate when the burners are in use.
Sabbath Mode
- Sabbath Mode allows the oven to operate according to Sabbath cooking requirements.
LuxGlide™ Telescopic Racks
- Ball-bearing telescopic racks glide smoothly and extend fully for easier access to heavy dishes.
Double Oven
- Two independent ovens, 4.8 cu. ft. and 2.8 cu. ft., let you cook multiple dishes at different temperatures.
Multi-Function Oven
- Multiple cooking modes include Bake, Roast, Broil, Keep Warm, Proof, Pizza, Self-Clean, and Air Fry.
Soft-Close Oven Door
- Soft-close doors gently shut for quieter, smoother operation.
Built-In Casters and Leveling Legs
- Casters make the range easier to reposition, while leveling legs provide a stable, even installation.
Italian Brass Burners with 22,000 BTU Dual Burner
- Italian brass burners deliver powerful heat up to 22,000 BTU with precise simmer control down to 1,000 BTU.
Automatic Re-Ignition Feature
- Automatically reignites the burner if the flame goes out for safer, uninterrupted cooking.
