Home > Cooking Appliances > Range Hoods > Under Cabinet Mount Hoods > XOIL3619KSE
XO XOIL3619KSE - 36 Inch Under Cabinet Range Hood in Angled View
XO XOIL3619KSE - 36 Inch Under Cabinet Range Hood in Angled View
XO XOIL3619KSE - 36 Inch Under Cabinet Range Hood in Bottom View
XO XOIL3619KSE - 36 Inch Under Cabinet Range Hood in LED Lamp Lighting View
+5

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
XO XOIL3619KSE
Authorized
Dealer

XO
XOIL3619KSE
Under Cabinet Range Hood with 3-Speed/1000 CFM Blower, Electronic Push Button Controls, LED Lighting, Dishwasher-Safe Baffle Filters, 5-Minute Delay Shutoff Timer and Optional ADA Compliant Wireless Remote Control: 36" Wide x 19" Deep

Top Quality Store on Google
Only 1 left in stock
quick specs
Style: Standard Hood
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Width: 34 3/8 Inch
Depth: 19 1/4 Inch
Height: 12 Inch
WiFi: No
CFM: 1,000 CFM
Noise Level: 8 Sones
Duct Size: 8 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
View more
Size: 36" Wide x 19" Deep
36" Wide x 19" Deep
36" Wide x 19" Deep
XOIL3619KSE
$1,690.00
In stock
36" Wide x 22" Deep
36" Wide x 22" Deep
XOIL3622KSE
$1,399.00
In stock
42" Wide x 19" Deep
42" Wide x 19" Deep
XOIL4219KSE
$1,875.00
42" Wide x 22" Deep
42" Wide x 22" Deep
XOIL4222KSE
$1,549.00
In stock
48" Wide x 19" Deep
48" Wide x 19" Deep
XOIL4819KSE
$2,125.00
48" Wide x 22" Deep
48" Wide x 22" Deep
XOIL4822KSE
$1,749.00
$1,690.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

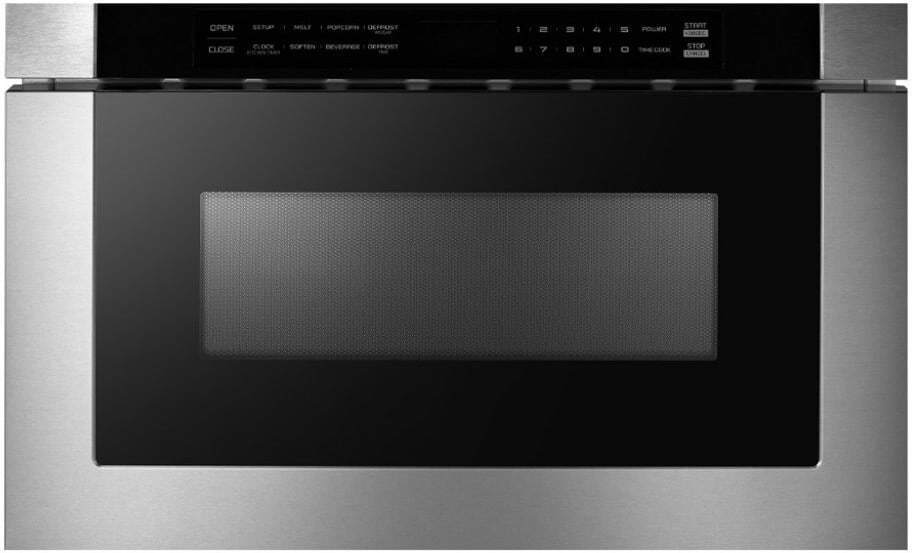

1.2 Cu. Ft. Built-In Microwave Drawer Oven
XO
1.2 Cu. Ft. Built-In Microwave Drawer Oven
$1,199.00

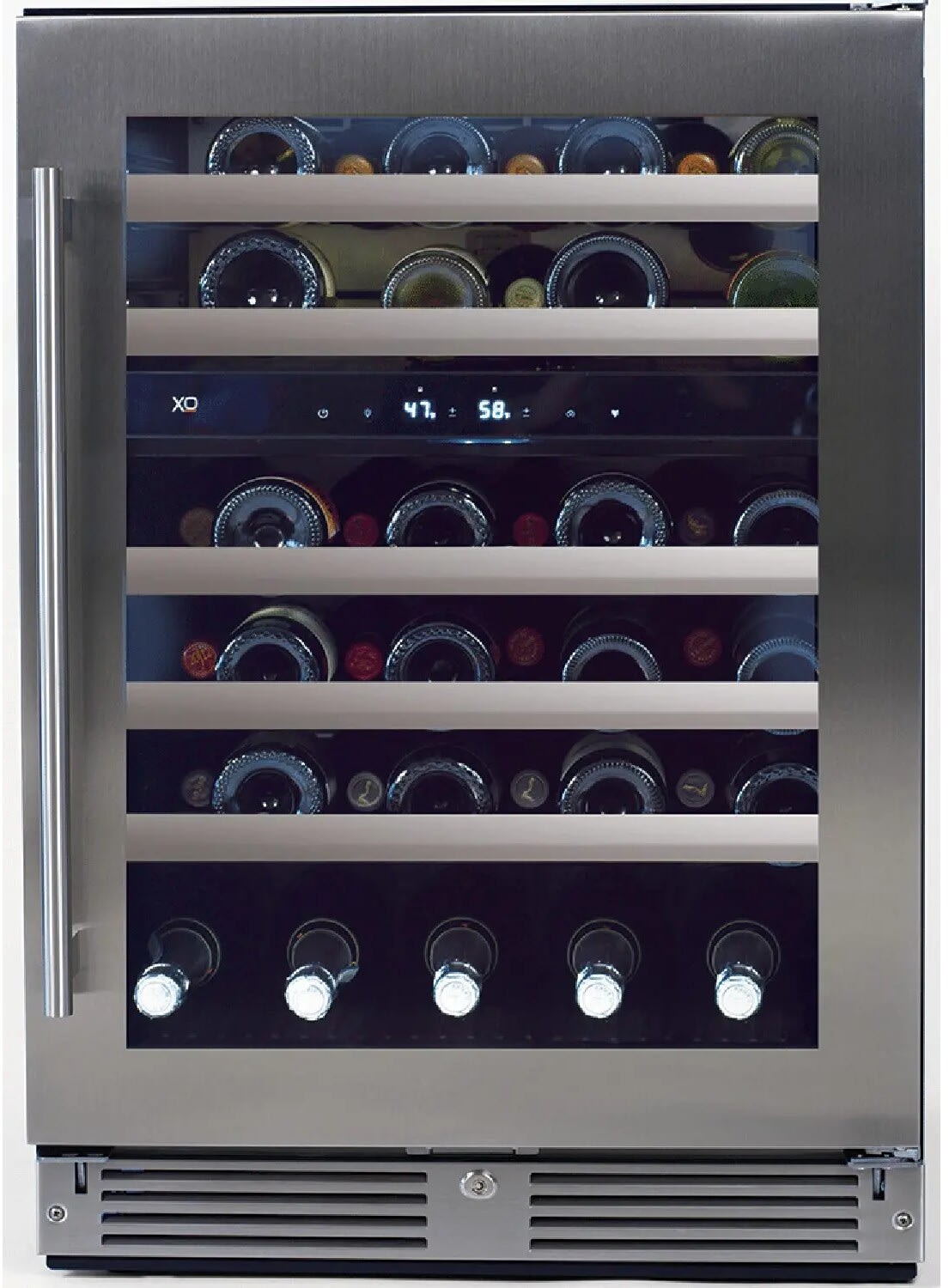

24 Inch Dual Zone Wine Cooler
XO
24 Inch Dual Zone Wine Cooler
$1,849.00

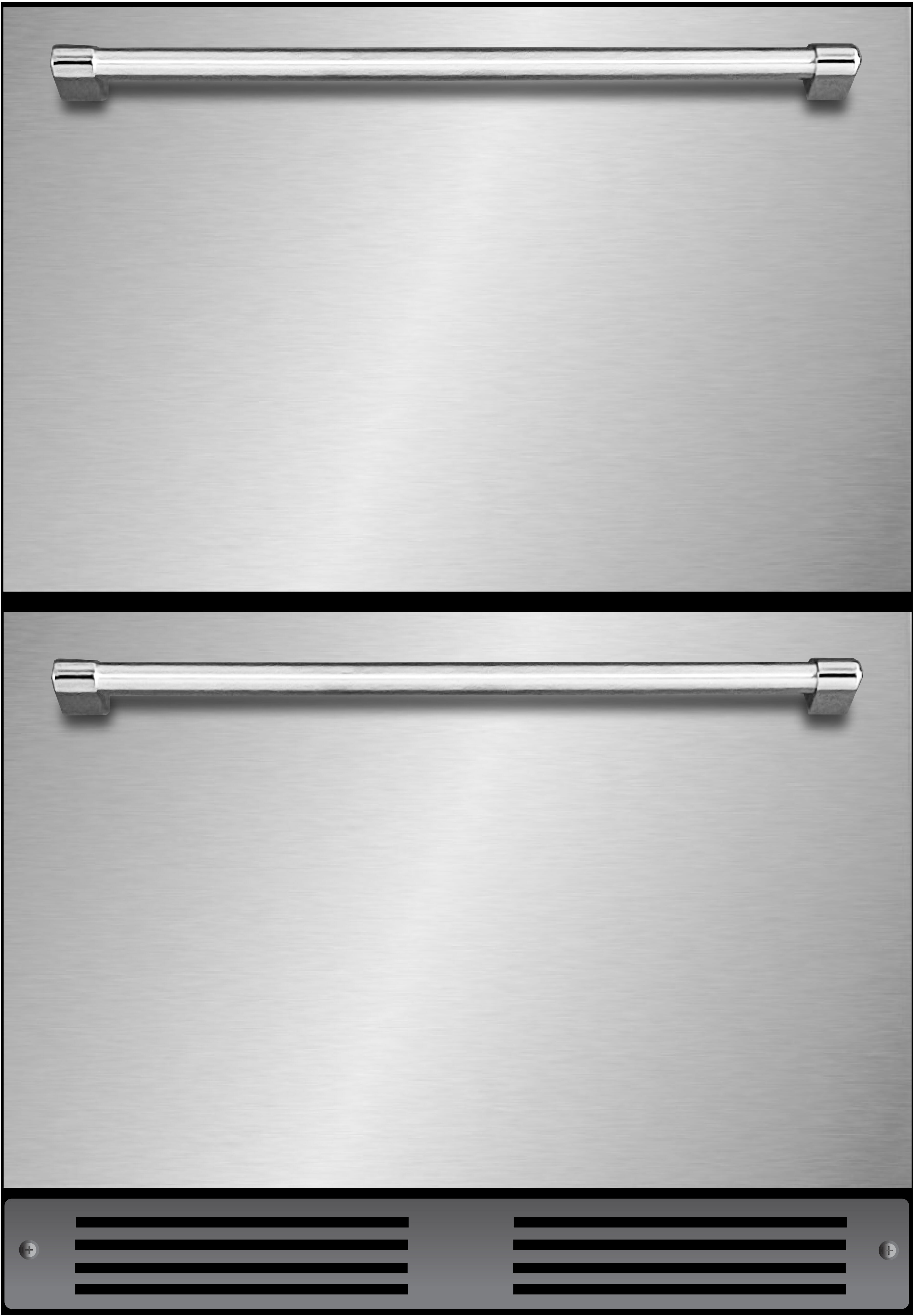

24 Inch Built-In Under-Counter Beverage Refrigerator Drawers
XO
24 Inch Built-In Under-Counter Beverage Refrigerator Drawers
$2,299.00
24 Inch Undercounter Dual Zone Wine and Weed Preservation System
XO
24 Inch Undercounter Dual Zone Wine and Weed Preservation System
$2,399.00
24 Inch Tall Column Built-In Beverage Center
XO
24 Inch Tall Column Built-In Beverage Center
$2,999.00
Product Information
Brand: XO
Model: XOIL3619KSE
Appearance
Style: Standard Hood
Type: Insert Liner
Color: Stainless Steel
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Under Cabinet
Venting Type: Convertible
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 34 3/8 Inch
Depth: 19 1/4 Inch
Height: 12 Inch
Smart
WiFi: No
Smart Accessory Required: No
Capacity
CFM: 1,000 CFM
Noise Level: 8 Sones
Duct Size: 8 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Delay Shut-Off: Yes
Tunable Lighting: Yes
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Voltage: 115 Volts
Approved for Outdoor Use: No
GTIN
UPC: 814830014676
Are you a Trade Pro? Join Now

Description

36 Inch Under Cabinet Range Hood with 3-Speed/1000 CFM Blower
The XOIL series is designed as an all-in-one blower/liner combination unit for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps, and backflow damper. The XOIL is everything you need in one easy-to-install package.

Specifications

Performance
Number of Speeds:
3
CFM:
200, 590, 1000
Sones:
2.0, 6.4, 8.0
Features
Finish:
Stainless Steel
CFM:
1000
Lighting Type:
LED Lamp
Remote Control:
Yes (optional ADA Compliant Wireless Remote Control)
Filter Type:
Dishwasher Safe Stainless Steel PRO Baffle Filters
Duct Size:
8" Vertical Duct
Delay Shutoff:
5-minutes
Electrical
Volts:
115V
Amps:
6.6A
Frequency:
60Hz
Dimensions
Size:
36"
Width:
34 3/8"
Depth:
19 1/4"
Height:
12"
Cutout Width:
34 1/2"
Cutout Height:
19 3/8"
Mounting Height Above Cooking:
27" - 32"
Options
Wireless ADA Compliant Remote Control:
XOVREMOTE1
Optional 8" Automatic Make-Up Air Kit:
XOMA08
Warranty
Parts and Labor:
2 Years

Features

3-Speed/1000 CFM Blower
  • Offers powerful ventilation with adjustable speed settings for optimal kitchen airflow.
Electronic Push Button Controls
  • Easy-to-use controls for precise fan and light adjustments.
LED Lighting
  • Energy-efficient LED lighting for bright, long-lasting illumination over your cooktop.
  • High Efficiency Dimmable 3000k LED lights (x4).
Dishwasher-Safe Stainless Steel PRO Baffle Filters
  • Durable filters that are easy to clean and maintain for consistent performance.
5-Minute Delay Shutoff Timer
  • Automatically turns off the hood after cooking, ensuring lingering odors are cleared.
Optional ADA Compliant Wireless Remote Control
  • Convenient remote operation that meets ADA standards for accessibility.
8" Vertical Duct
  • Efficient vertical ducting for smooth air extraction.
Made In Italy
  • Crafted with high-quality Italian design and engineering for superior performance and style.
