Description

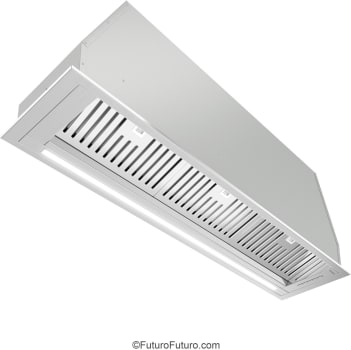

Designo 46 Inch Insert Range Hood with 4 Fan Speed
The Futuro Futuro 46-inch Designo Insert Under-Cabinet Range Hood is the ultimate solution for spacious, high-performance kitchens that demand elegance, power, and quiet operation. Designed and handcrafted in Italy, this extra-wide model combines luxury aesthetics with exceptional functionality, making it a perfect fit for gourmet cooking spaces.
Constructed from premium AISI 304 stainless steel, the 46-inch Designo Insert provides unmatched durability, corrosion resistance, and a polished, modern look that complements any high-end kitchen design.
Powered by a high-performance 940 CFM blower and baffle filters, this under-cabinet range hood captures smoke, steam, and cooking odors with professional precision. The dynamic LED lights provide bright, energy-efficient illumination across your cooking area, offering intuitive control over both color temperature (from cool to warm white) and brightness to perfect your ambiance.
This model is ideal for kitchens needing a ducted or ductless under-cabinet range hood with professional power and a refined, built-in look. Installation under cabinets or into custom enclosures is seamless, maintaining a clean, integrated aesthetic.
Backed by over 35 years of Italian engineering excellence, Futuro Futuro continues to deliver world-class range hoods that combine power, precision, and design sophistication. The 46-inch Designo Baffle Insert Under-Cabinet Range Hood is built for those who cook seriously and live beautifully.
Specifications
Product Details
Mounting Type:
In-Cabinet / Under-Cabinet Mount
Color / Finish:
Stainless Steel
Materials:
Stainless Steel
Lighting Type:
Dynamic LED light (2700K-6000K), Light intensity (0 to 152 lux)
# of Lights:
1x full-width LED light strip
Control Panel Type:
Electronic, illuminated control panel
Filter Type:
Commercial Baffle (x 3)
Blower Type:
Internal Whisper-Quiet tangential (INCLUDED)
Noise Level:
0.5 - 3.2 sones
Duct Size:
6" (rigid, round or equivalent)
Exhaust Type:
Ducted or Ductless
Airflow:
150-940 CFM. CFM can be reduced upon customer request to accommodate local building code requirements.
Country of Production:
Made in Italy
Electrical Details
Power Requirements:
US Standard 3-pin plug, 110-120 Volts, 60 Hz, 3 Amp
Dimensions
Height Above Cooktop:
26" - 30" for best performance
Certifications
Features
4 Fan Speeds
- Choose from four airflow levels for quiet simmering or heavy-duty cooking.
150–940 CFM Blower
- Powerful ventilation range effectively removes smoke, grease, and odors.
Dynamic LED Lights
- Adjustable LED lighting delivers bright, efficient illumination with customizable ambiance.
Commercial Baffle Filters
- Heavy-duty stainless steel filters capture grease efficiently and are dishwasher safe.
Illuminated Push-Button Control
- Easy-to-use backlit controls provide clear visibility and precise operation.
Internal Whisper-Quiet Tangential Blower
- Advanced blower design ensures strong airflow with reduced noise.
0.5 – 3.2 Sones
- Operates at ultra-quiet noise levels, even at higher fan speeds.
UL Certified
- Tested and approved to meet U.S. electrical safety standards.
CSA Listed
- Certified for safe operation in both the U.S. and Canada.
California residents see
Prop 65 WARNINGS
