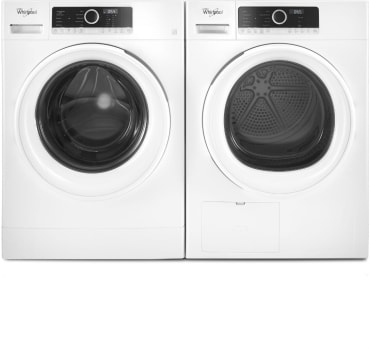

Whirlpool WHWADREW3090 - Front View
Whirlpool WHWADREW3090 - Front View
Whirlpool WHWADREW3090 - Washer
Whirlpool WHWADREW3090 - 24 Inch Ventless Electric Dryer
+14

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Whirlpool WHWADREW3090
Authorized
Dealer

Whirlpool WHWADREW3090 Side-by-Side Front Load Washer and Electric Dryer Set in White

Top Quality Store on Google
Save $101!
included items
24 Inch Compact Front Load Washer (WFW3090JW)
• Detergent Dosing Aid, Sanitize Option, Handwash Cycle
24 Inch Electric Dryer (WCD3090JW)
• 4.3 Cu. Ft. Capacity, Ventless Design, 15 Dryer Programs
Configuration:
Side-by-Side
Side-by-Side
Stacked
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
  • 24 Inch Compact Front Load Washer
    WFW3090JW
  • 24 Inch Electric Dryer
    WCD3090JW
Product Information
Brand: Whirlpool
Model: WFW3090JW
Appearance
Type: Front Load
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 24 Inch
Depth: 24 Inch
Height: 33 1/4 Inch
Capacity: 1.9 Cu. Ft.
Smart
WiFi: No
Features
Control Type: Digital and Knobs
Temperature Settings: 6
Bleach Dispenser: No
Fabric Softener Dispenser: Yes
Stainless Steel Drum: Yes
Leveling Legs: Yes
Maximum Spin Speed (RPM): 1,400
Reversible Door: No
Interior Light: No
Includes Hoses: No
Water Heater: Yes
Usage: Residential
Voice Assistant: No
Smart Home / App Compatible: No
Remote Access: No
Cycles
Wash Cycles: 10
Wash Options: 11
Steam Cycle: No
Sanitize Cycle: Yes
Allergy Cycle: No
Add Wash: No
Soak Cycle: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
NSF Certified: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 883049531366
JAN: WFW3090JW 0
Are you a Trade Pro? Join Now

Description

24 Inch Compact Front Load Washer with Detergent Dosing Aid
Fit your family's lifestyle and living space with the 1.9 cu. ft. compact washer. This 24 inch washer installs virtually anywhere. Do laundry in almost any space with Whirlpool's space-saving compact washer. The compact front load washer offers exceptional fabric care-so you can enjoy all your favorite features on a small washing machine. Enjoy features like the Quick Wash cycle to clean small, lightly soiled loads or the Handwash cycle that cleans clothes gently in our compact washing machine.

Specifications

Additional Specs
Capacity:
1.9 cu. ft.
ENERGY STAR:
Qualified
Control Type:
Tap Touch
Drum Material:
Stainless Steel
Automatic Dispense System:
Detergent & Fabric Softener
Load Size Sensing Technology:
Automatic
Number of Wash Cycles:
10
Washer Cycle Selections:
Clean Washer with affresh; Heavy Duty; Normal; Synthetics; Delicates; Wool; Quick Wash; Colors; Rinse & Spin; Spin
Option Selections:
Delay Wash; Save Time; Extra Rinse; Heavy Soil; Pre-Soak; PreWash; Control Lock; TumbleFresh™; Rinse/Hold
Pre Soak:
30 minutes, 60 minutes, 8 hours
Maximum Spin Speed:
1,400
Temperature Selections:
Colors, Cold, Cool, Warm, Hot, Extra Hot
Electrical
Electrical Requirements:
120V/60Hz/15A
ADA Compliant:
ADA Compliant when using a 12 inch Pedestal
DIMENSIONS & WEIGHT
Width:
24"
Depth:
24"
Depth with Door Open 90°:
41 5/8"
Height:
33 1/4"
Gross Weight:
171 Lbs.

Features

Detergent Dosing Aid
  • Stop overdosing your detergent and help rid your clothes of residue. The Detergent Dosing Aid option helps you add the right amount of detergent to provide any load the right clean without the residue.
Sanitize option
  • The Sanitize option uses increased water temperature to eliminate 99.9% of common household bacteria.
Save Time option
  • Get your clothes ready to wear sooner thanks to the Save Time option that cleans lightly soiled loads that don't need the full wash time.
Colors option
  • Preserve your colors. The Colors option uses cold water to help protect colors so they remain vibrant, and even saves energy by not heating the water.
Sleek Tap Touch controls with Memory
  • Start your next load quickly using the sleek control interface of the Tap Touch controls with Memory. This technology allows direct access to washer functions and even remembers your last cycle and settings to save you time.
Handwash cycle
  • The Handwash cycle uses lower spin speeds combined with reduced tumbling to soak the load and clean clothes gently.
PreWash option
  • Skip presoaking in the sink by hand and let the washer do it for you using the PreWash option. Additional wash time before the cycle starts helps take on heavily soiled loads that contain everyday tough stains.
Wool cycle
  • Cool water and slow spin speeds clean your washable delicates to provide everything you'd expect from gentle fabric care on the Wool cycle.
Synthetics cycle
  • Care for your family's everyday wear. Clothes will remain cared for during the Synthetics cycle as warm water and max spin speed work together to gently lift normal soils from fabrics.
Quick Wash cycle
  • Wash an outfit today and wear it out tonight using the Quick Wash cycle that cleans small, lightly soiled loads.
1.9 cu. ft. capacity
  • This compact-sized washer offers a 1.9 cu. ft. capacity, providing enough room to thoroughly wash your day-to-day loads.
Heavy Soil option
  • Optimize stain removal for your family's messes. The Heavy Soil option helps break down stains and rinses away soils.
ENERGY STAR® certified
  • ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Quick Specs
Install Guide
Energy Guide
Owner Manual
Specification Sheet
Product Information
Brand: Whirlpool
Model: WCD3090JW
Appearance
Type: Front Load
Fuel Type: Electric
Color: White
Stackable: Yes
Location of Controls: Front
Dimensions
Width: 23 1/2 Inch
Depth: 26 Inch
Height: 34 Inch
Capacity: 4.3 Cu. Ft.
Smart
WiFi: No
Smart Accessory Required: No
Features
Control Type: Digital and Knobs
Cycles: 15
Options: 6
Temperature Settings: 3
Stainless Steel Drum: Yes
Reversible Door: Yes
Dry Rack: No
Venting Type: Ventless
Heating Element: Condenser
Interior Light: No
Voice Assistant: No
Leveling Legs: No
Usage: Residential
Smart Home / App Compatible: No
Remote Access: No
Cycles
Wrinkle Control Cycle: Yes
Steam Cycle: No
Sanitize Cycle: No
Sensor Dry: No
Technical Details
Energy Star Rated: Yes
CEE Rating: Tier I
ADA Compliant: Yes
LP Conversion: No
NSF Certified: No
Amps: 20
Voltage: 240 Volts
GTIN
UPC: 883049536408
EAN: 0883049536408
JAN: WCD3090JW0,MLA170244
Are you a Trade Pro? Join Now

Description

24 Inch Electric Dryer with 4.3 Cu. Ft. Capacity
Fit laundry almost anywhere with the 4.3 cu. ft. small space dryer. This 24" compact dryer installs virtually anywhere thanks to its ventless, space-saving design. With features like the Wrinkle Shield™ Option and Refresh Cycle that help keep laundry day moving, you'll be able to dry clothes fast and efficiently in this compact ventless dryer.

Specifications

Controls
Automatic Temperature:
Yes
End of Cycle Signal:
Yes
Electronic Display Type:
Digital
Control Type:
Electronic
Control Location:
Front
Feedback-Status Indicators:
Bottom Filter Clogged, Delay Start, Door Filter Clogged, Water Tank Full
Certifications
Energy Star® Qualified:
ENERGY STAR® Certified
ADA Compliant:
ADA Height and Operation
CEE Tier:
Tier I
Prop 65:
Yes
Temperature Settings
Number of Temperatures:
3
Temperature Selection:
High, Medium, Low
Cycles and Options
Drying Cycles Selections:
Normal, Whites, Delicates, Colors, Synthetics, Jeans, Towels, Quick Dry, Refresh, Wool, Bulky, Sports, Cotton, Silk, Dress Shirts
Number of Dryer Cycles:
15
Number of Dryer Options:
6
Features
EcoBoost™/Energy Saver:
No
Cycle Time Remaining:
Yes
Lint Filter Indicator:
Yes
LP Convertible:
No
Secondary Lint Filter:
Yes
Stackable:
Yes
Pedestal Options:
WFP24JW
Sound Package:
No
Modifiers
Number of Dryness Levels:
3
Selection of Drying Levels:
More, Normal, Less
Installation Considerations
Venting Direction:
Bottom, Rear
Flat Back:
No
Long Vent:
No
Ventless:
Condensing
Details
Eco Monitor/Efficiency:
No
Maytag Commercial:
No
Door Style:
Side Swing
Drum Material:
Stainless Steel
Interior Light:
No
Hoses Included:
No
Motor Horsepower:
1/4 HP
Lint Screen Location:
Front
Quad Baffles:
No
Steam Hose Y Connector:
No
Exterior
Window:
Yes
Reversible Door:
Yes
Electrical Requirements
Hz:
60
Power Cord Included:
No
Amps:
20
Volts:
240
Dimensions & Weights
Depth With Door Open 90:
43 5/16"
Depth:
26"
Height To Top Of Cabinet:
7 1/8"
Height:
34"
Maximum Height:
34"
Minimum Height:
33 7/8"
Width:
23 1/2"
Door Opening Height:
14 47/50"
Capacity:
4.30
Capacity IEC CAN:
5.0
Net Weight:
93 lbs
Gross Weight:
96 lbs

Features

4.3 Cu. Ft. Capacity
  • This compact small space dryer has the capacity to fit your clothes while still being able to fit your living space.
Most Space-Saving
  • Install almost anywhere with Our Most Space-Saving Front Load Pair Available.
  • The ventless design and compact 24" width of the dryer makes it easy to fit laundry into tight quarters.
Small Space Dryer Technology
  • Save energy and help reduce utility costs with our Energy-Efficient Small Space Dryer Technology.
  • The ventless design with condensing technology recycles air and captures moisture inside the unit instead of using an outside exhaust vent, so you can dry clothes more efficiently.
Whites Cycle
  • Dry a small load of cotton items in under an hour with increased temperatures, so clothes are ready when you're on a tight schedule.
Wrinkle Shield™ Option
  • Help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option.
  • It keeps clothes tumbling for up to 2-1/2 hours after the cycle ends or until you open the door.
Refresh Cycle
  • Help release wrinkles from clean, dry clothes so they're ready to wear without needing to be rewashed.
  • Simply add a wet towel or clothing item to a small load before running the cycle.
Baffles
  • Baffles help clothes tumble freely instead of getting stuck against the drum, providing a thorough dry for both small and large loads.
Wool Cycle
  • Help protect dryable wool fabrics from damage with the Wool Cycle that evaporates water faster, reducing drying time.
Bulky Items Cycle
  • Thoroughly dry blankets and bedding with the Bulky Items Cycle.
Delicates Cycle
  • Reduced temperatures provide the right dryness for delicate loads.
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Quick Reference Manual
Cycle Guide
Owner's Manual-1
Installation Instructions
Pedestal Installation Instructions
Owner's Manual-2
