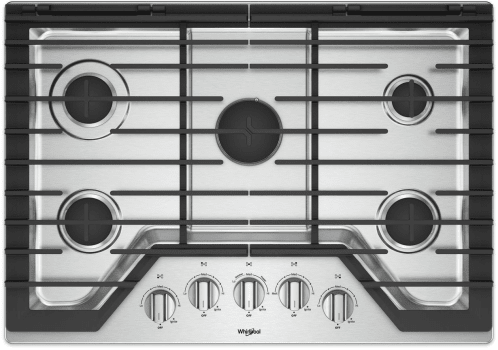

Whirlpool WCG97US0HS - Front View
Whirlpool WCG97US0HS - Front View
Whirlpool WCG97US0HS - Front View
Whirlpool WCG97US0HS - Top Angled View
+7

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Whirlpool WCG97US0HS
Authorized
Dealer

Whirlpool
WCG97US0HS
30 Inch Gas Cooktop with 5 Sealed Burners, SpeedHeat™ Burner, AccuSimmer® Burner, Griddle, EZ-2-Lift™ Hinged Grates, Upswept SpillGuard™ Cooktop, Dishwasher-Safe Knobs, and ADA Compliant

Top Quality Store on Google
quick specs
Sabbath Mode: No
Number of Burners: 5
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Actual Width: 30 Inch
WiFi: No
Continuous Grates: Yes
Grill: No
Griddle: Yes
Warranty Terms: 1 year
?
View more
$1,218.00
MSRP: $1,359.00
You save $141.00
OR
You Will Also Need:
4' Gas Appliance Installation Kit
+ $39.99
Have questions? Chat with us!

You Might Also Like

27 Inch Smart Single Wall Oven
Whirlpool
27 Inch Smart Single Wall Oven
$2,428.00
Product Information
Brand: Whirlpool
Model: WCG97US0HS
Warranty Terms: 1 year
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Number of Burners: 5
Style: Sealed Burner
Type: Drop-In
Control Type: Knobs
Color: Stainless Steel
Surface Color: Stainless Steel
Trim Color: Stainless Steel
Glass Surface: No
Fingerprint Resistant: No
Dimensions
Actual Width: 30 Inch
Actual Depth: 21 Inch
Actual Height: 4 1/8 Inch
Cutout Width: 28 7/8 Inch
Cutout Depth: 19 1/2 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Smart
WiFi: No
Burner
Burner 1 Output: 17000
Burner 2 Output: 10000
Burner 3 Output: 5000
Burner 4 Output: 10000
Burner 5 Output: 10000
Gas Cooktop Features
Continuous Grates: Yes
Grill: No
Griddle: Yes
French Top: No
Technical Details
ADA Compliant: Yes
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 883049467061
EAN: 0883049467061
Are you a Trade Pro? Join Now

Description

30 Inch Gas Cooktop with EZ-2-Lift™ Hinged Grates
Whirlpool's 30 inch EZ-2-Lift™ Hinged gas cooktop features continuous cast-iron grates for easy movement of pots and pans across the cooktop. The SpeedHeat™ Burner feature technology for rapid boiling, searing and frying, and the left front burner was specially designed with a 5,000-BTU AccuSimmer temperature-controlled feature for gentle heat on sauces and soups. There is also a griddle included to make pancakes, vegetables, and a bevy of other foods. Its SpillGuard accent contains spills for quick clean-up, and cleaning is even that much easier with the hinged dishwasher-safe grates and knobs.

Specifications

Overview
Fuel Type:
Gas
Installs Over Built-In Oven:
Yes
LP Convertible:
Yes - Kit Included
Power Outage Compatible:
Yes
Cooktop Type:
Standard
Digital Display:
No
Control Location:
Front
Control Type:
Knobs
Cooktop Details
Cooktop Surface Color:
Color Coordinated
Cooktop Surface Material:
Stainless Steel
Griddle Included:
Yes, Kit Included
Heating Element On Indicator Light:
No
Hot Surface Indicator Light:
No
Ignition Type:
Direct Spark Ignition
Cooktop Selections:
AccuSimmer Plus
Installs Over Built-In Oven:
Yes
Element/Burner Details
Cooktop Type:
Standard
Cooktop Element Style:
Sealed Burner
Number of Cooking Element-Burners:
5
Power Boost:
No
Automatic Pan Detection:
No
Number of Grates:
2
Grate Details:
Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish
Center Front Element-Burner Power:
17,000 BTU
Center Front Element-Burner Type:
FlexHeat
Left Front Element-Burner Power:
10,000 BTU
Left Front Element-Burner Type:
SpeedHeat™
Left Rear Element-Burner Power:
10,000 BTU
Left Rear Element-Burner Type:
SpeedHeat™
Right Front Element-Burner Power:
10,000 BTU
Right Front Element-Burner Type:
SpeedHeat™
Right Rear Element-Burner Power:
5,000 BTU
Right Rear Element-Burner Type:
Simmer
Electrical Specifications
Volts:
120V
Amps:
15A
Dimensions & Weight
Cutout Depth:
19 1/2"
Cutout Depth Max:
20"
Cutout Depth Min:
19"
Cutout Width:
28 7/8"
Cutout Width Max:
29 5/16"
Depth:
21"
Height:
4 1/8"
Width:
30"
Net Weight:
54 lbs.
Gross Weight:
59 lbs.
Certifications
ADA Compliant:
ADA Height and Side Reach Compliant
UL:
Yes

Features

Sealed Burners
  • Cut down on cleanup with burners that are sealed to prevent food from falling into them.
EZ-2-Lift™ Hinged Grates
  • Get quick access to spills on the cooktop with the industry-first EZ-2-Lift™ hinged cast-iron grates; the hinged design lets you wipe up underneath without removing them.
SpeedHeat™ Burner
  • Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
AccuSimmer® Burner
  • Easily keep an even simmer when cooking sauces and soups with the AccuSimmer® burner, which reduces power for better control at lower temperatures.
Upswept SpillGuard™ Cooktop
  • Clean up faster with a cooktop that has raised edges to help contain spills.
Griddle
  • Make pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.
Dishwasher-Safe Knobs
  • Make clean up easy by washing knobs right in the dishwasher.
