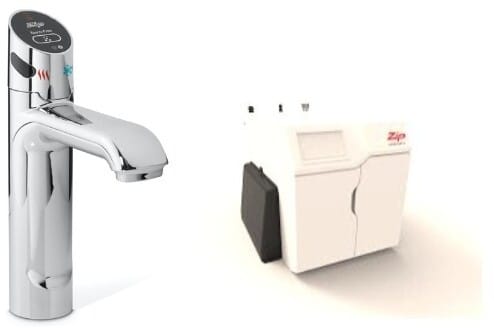

Zip WAVECS240VCH - HydroTap Chilled, Sparkling for Large Commercial - Kitted Base Module with 5 lb CO2 and Regulator with Touch-Free Wave Tap - Bright Chrome
Zip WAVECS240VCH - HydroTap Chilled, Sparkling for Large Commercial - Kitted Base Module with 5 lb CO2 and Regulator with Touch-Free Wave Tap - Bright Chrome
Zip WAVECS240VCH - HydroTap Touch-Free Wave Chilled/Sparkling (CS) Tap
Zip WAVECS240VCH - HydroTap-Touch-Free-Wave-On-Font
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Zip WAVECS240VCH
Authorized
Dealer

Zip
WAVECS240VCH
HydroTap Chilled, Sparkling for Large Commercial - Kitted Base Module with 5 lb CO2 and Regulator with Touch-Free Wave Tap - Bright Chrome

Top Quality Store on Google
Save $786!
included items
HydroTap 240V BCS G5 Command Center Kitted (01048502)
• 5lb CO2, CO2 Regulator,
HydroTap Touch-Free Wave Faucet (01041861)
• 1.8 GPM Max. Flow Rate, 0.36 GPM Sparkling Flow Rate, Chilled
To order or learn more please call us at:
800-570-3355
FREE Delivery Available
Have questions? Chat with us!
Product Information
Brand: Zip
Model: 01048502
Dimensions
Width: 11 Inch
Depth: 18 9/10 Inch
Height: 13 1/10 Inch
Are you a Trade Pro? Join Now

Description

HydroTap 240V BCS G5 Command Center
Ditch the cans of sparkling and single-use bottles of water when you upgrade your office hydration to a HydroTap CS 240V system. Employees can enjoy on-demand chilled still and chilled sparkling water at work. This command center is kitted with our 5lb CO2 and CO2 regulator. It is ideal for commercial applications with up to 60 users and can be paired with any of our various tap styles.

Specifications

Overview
Maximum number of users:
Up to 60 people
Water Pressure:
Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
Water Connection:
½” BSP - isolation valve is required within 3’ (0.9m) of the installation
Integral Water Values:
All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2
Water Supply Requirements:
Potable drinking water supply
Optimal Total Dissolved Solids (TDS) Range:
TDS Min 50ppm – Max 150ppm
Integral Water Filter:
0.2 micron, 1.5 size - replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
Power Rating:
220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
Dimensions (WxDxH):
11” x 18.9” x 13.1” / 280mm x 480mm x 333mm
Minimum Air Gap:
Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
Minimum Cabinet Size:
18” wide x 24” deep /508mm wide x 610mm deep
Connection Lengt:
3’ / 0.9m (tap to command center)
Dry Weight:
80.5lbs / 36.5kg
Product Approvals:
IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1087; cUL; CEC
Warranty:
2-year limited parts and labor warranty
Compatible CO2 Cylinder:
Zip Water 5lb CO2 with CGA-320 fitting
CO2 Operating Pressure:
Min 39psi - Max 44psi / Min 2.74 - Max 3.09kg/cm

Features

Power-Pulse Technology
  • Maintains boiling water to within 0.4°F of the set temperature
Air-Cooled Refrigeration System
  • Unique air-cooled refrigeration system is 100% water efficient
Unique Safety Features
  • The boiling water has a smooth flow and there is a safety lock on the boiling water tap to prevent accidental use
Auto-Diagnostic
  • The advanced auto-diagnostic system continuously monitors performance
Other Features
  • Single Unit that Provides Instant Filtered, Boiling, Chilled and Sparkling
  • 0.2 Micron Built-In Filtration
California residents see Prop 65 WARNINGS

Reviews

Manuals & Guides

Specification Sheet
Product Information
Brand: Zip
Model: 01041861
Dimensions
Overall Height: 8 13/32 Inch
Overall Width: 1 13/16 Inch
Spout Height: 4 19/64 Inch
Spout Reach: 4 19/32 Inch
Specifications
Type: Filtration
Mounting: Single Hole
Room: Kitchen
Finish: Chrome
Handle Type: Automatic/Touchless
Number of Handles: None
Number of Holes: 1
Faucet Flow Rate: 1.8
Features
Pre-Rinse/Pull-Down: No
Side Spray: No
Articulating Arm: No
Touch Sensor: Yes
Infrared: Yes
Filter: Yes
Soap Dispenser Included: No
Drain Assembly Included: No
Technical Details
ADA Compliant: Yes
AB1953/S152 Compliant: No
WaterSense Certified: No
Are you a Trade Pro? Join Now

Description

HydroTap Touch-Free Wave Faucet
Elevate your drinking water and save space in your fridge with a HydroTap Touch-Free Wave CS and get on-demand sparkling and chilled still water at home or at work. The HydroTap Touch-Free Wave CS will complement every lifestyle, with on-demand sparkling water, advanced smart technology, beautiful design, and high filtration for healthier living. Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water - the world's most advanced drinking water system.

Specifications

Overview
Finish:
Chrome
Style:
HydroTap Touch-Free Wave
Child Lock:
Yes
Installation:
Over Sink or on Drip Tray
Font:
Optional
Flow Rate:
1.8 GPM Max.
Sparkling Water Flow Rate:
0.36 GPM
Hole Size:
1 3/8"
Filtration System Specs
Water Pressure:
Min 1 gpm @ 36psi - 100psi
Water Connection:
1/2" BSP
Integral Water Valves:
Dual check valve and 50psi Pressure Limiting Valve
Water Supply Requirements:
Potable drinking water supply
Total Dissolved Solids (TDS):
50ppm - maximum 120ppm
Integral Water Filter:
0.2 micron, 1 size - replace every 1,500 gallons or 12 months
CO2 Cylinder Specs
CO2 Cylinder:
2 x 1.5lb beverage-grade carbon dioxide cylinder
CO2 Capacity:
Approximately 450 glasses of sparkling water per 1.5lb CO2 cylinder
CO2 Operating Pressure:
Min 39psi - Max 43psi
Technical Requirements
Power Rating:
110-120V, 60 Hz, 1.25kW, 9A draw
Power Supply Requirements:
110-120V, 60Hz 15A power supply with a NEMA 5-15 outlet
Product Approvals
IAPMO - NSF/ANSI 372, 42 & 53:
Yes
cUL:
Yes
CEC:
Yes
ADA Compliant:
Yes
Warranty:
2 Years
Dimensions
Overall Height:
8 13/32"
Overall Width:
1 13/16
Spout Height:
4 19/64"
Spout Reach:
4 19/32"
Hole Size:
1 3/8"

Features

1.8 GPM Max. Flow Rate
  • Offers convenience for washing bulky items
Chilled
  • Provides chilled and unlimited levels of ambient water
Sparkling
  • Simply add bubbles, and regular H2O transforms from the most common drink on the planet to a stimulating beverage that cleanses the palate and refreshes the mouth and mind
Safety Lock
  • Eliminates the risk of accidental discharge of boiling water
Other Features
  • 0.36 GPM Sparkling Flow Rate
  • Adjustable Height
  • Installation Over Sink
  • Optional Font (sold separately)
  • Infrared Smart Sensor
  • ADA Compliant
