Viking 5 Series VWH548481SSBB - 48 Inch Wall Mount Range Hood with Virtually Seamless Design
Viking 5 Series VWH548481SSBB - 48 Inch Wall Mount Range Hood with Virtually Seamless Design
Viking 5 Series VWH548481SSBB - 48 Inch Wall Mount Range Hood with Virtually Seamless Design
Viking 5 Series VWH548481SSBB - 48 Inch Wall Mount Range Hood with Virtually Seamless Design
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Viking 5 Series VWH548481SSBB
Authorized
Dealer

Viking 5 Series
VWH548481SSBB
48 Inch Wall Mount Range Hood with Virtually Seamless Design, Backlit LED Knobs, Bright LED Lighting, Heat Sensor, Heat Lamps, Backlit LED Knobs, and Stainless Steel Dishwasher-Safe Filters: Stainless Steel with Brushed Brass

Top Quality Store on Google
Only 6 left in stock
quick specs
Style: Canopy Pro Style
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Width: 47 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
WiFi: No
Dishwasher Safe Filters: Yes
Lights: LED
Warranty Terms: 2 years
?
View more
Color: Stainless Steel with Brushed Brass
Stainless Steel
Stainless Steel
VWH548481SS
$3,009.00
Stainless Steel with Brushed Brass
Stainless Steel with Brushed Brass
VWH548481SSBB
$3,059.00
In stock
Antique Bronze
Antique Bronze
VWH548481AN
$4,709.00
Blush
Blush
VWH548481BH
$4,709.00
Daffodil
Daffodil
VWH548481DA
$4,709.00
Eucalyptus
Eucalyptus
VWH548481EU
$4,709.00
Golden Hour
Golden Hour
VWH548481GH
$4,709.00
Ivy
Ivy
VWH548481IV
$4,709.00
Martini
Martini
VWH548481MA
$4,709.00
Nantucket
Nantucket
VWH548481NA
$4,709.00
November Sky
November Sky
VWH548481NS
$4,709.00
Onyx
Onyx
VWH548481ON
$4,709.00
Pure White
Pure White
VWH548481PW
$4,709.00
Spiced Cider
Spiced Cider
VWH548481SC
$4,709.00
Splash
Splash
VWH548481SP
$4,709.00
Squall
Squall
VWH548481SQ
$4,709.00
Valentine
Valentine
VWH548481VA
$4,709.00
Frost White
Frost White
VWH548481FW
Damascus Grey
Damascus Grey
VWH548481DG
$4,709.00
Cast Black
Cast Black
VWH548481CS
$4,709.00
Slate Blue
Slate Blue
VWH548481SB
$4,709.00
$3,059.00
MSRP: $3,269.00
You save $210.00
OR
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

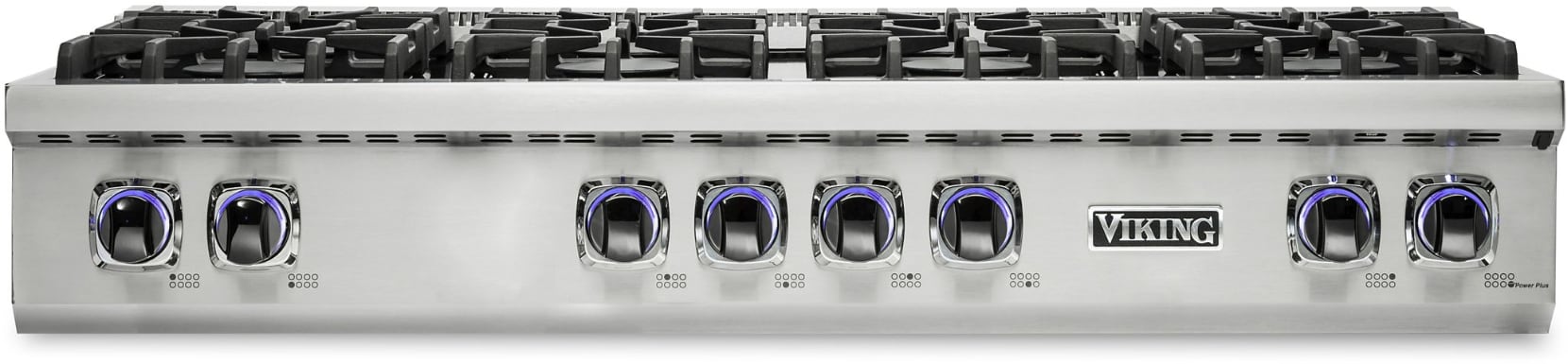

48 Inch Pro-Style Gas Rangetop
Viking
48 Inch Pro-Style Gas Rangetop
$7,659.00

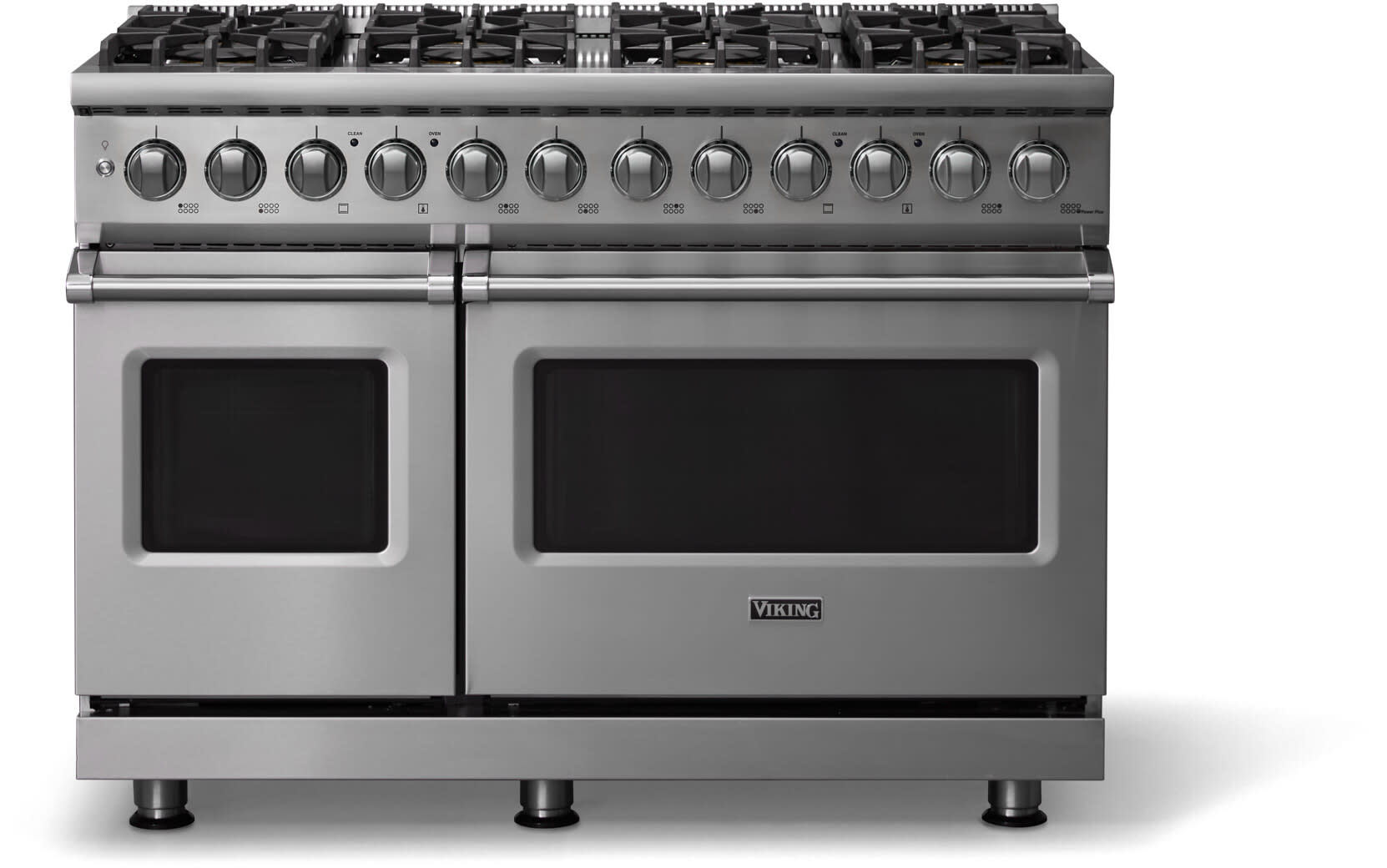

48 Inch Freestanding Dual Fuel Range
Viking
48 Inch Freestanding Dual Fuel Range
$15,749.00
48 Inch Counter Depth Built-In Side by Side Refrigerator
Viking
48 Inch Counter Depth Built-In Side by Side Refrigerator
$12,689.00
24 Inch Fully Integrated Dishwasher
Viking
24 Inch Fully Integrated Dishwasher
$2,249.00
Product Information
Brand: Viking
Series: 5 Series
Model: VWH548481SSBB
Warranty Terms: 2 years
?
Appearance
Style: Canopy Pro Style
Type: Hood
Color: Stainless Steel
Trim Color: Brass
Fingerprint Resistant: No
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Dimensions
Width: 47 7/8 Inch
Depth: 24 Inch
Height: 18 Inch
Smart
WiFi: No
Smart Accessory Required: No
Features
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Technical Details
ADA Compliant: No
Energy Star Rated: No
CEE Rating: Not Available
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
Are you a Trade Pro? Join Now

Description

48 Inch Wall Mount Range Hood with Virtually Seamless Design
Elevate your kitchen with the Viking VWH548481, a 48" wall-mounted range hood that combines bold style with pro-level performance. Sleek backlit knobs, powerful yet quiet ventilation, and bright dimmable LED lighting create a premium cooking experience. With a built-in heat sensor and over 30 custom color options, it’s the perfect blend of function and flair.

Specifications

Specifications
Ventilator Kits:
Optional
Interior Duct Size:
7"/10"
Exterior Duct Size:
10"
Optional Recirculation Kit:
No
Speed Controls:
Variable
Heat Sensor:
Yes
Heat Lamps:
1
Lighting:
LED
Interior Maximum Amps:
10.8
Exterior Maximum Amps:
7.8/8.5
In-Line Maximum Amps:
9.6
Dimensions
Overall/Duct Cover Width:
47 7/8"
Overall Depth:
24"
Overall Height:
18"
Duct Cover Depth:
12"
Duct Cover Height:
12"
Warranty
2-Year Full:
Complete product
90-Day Full:
Cosmetic parts such as glass, painted items, and decorative items
5-Year Limited:
All ventilator motors

Features

Virtually Seamless Design
  • Blend in and stand out with a smooth, clean look and a virtually seamless design.
Heat Sensor
  • With the help of a heat sensor, cook without care as our ventilator automatically increases power if temperatures reach uncomfortable levels.
Bright LED Lighting
  • Dimmable lighting controls provide custom illumination for enhanced surface cooking visibility.
  • Long-life LED light bulbs are energy efficient and consumer replaceable.
Heat Lamps
  • Heat lamps conveniently keep food warm until it is ready to be served.
Quietest Hood and Ventilator Combination
  • Tough-box ventilator housing protects blower and quietly removes smoke and odor.
Backlit LED Knobs
  • Backlit LED knobs extend and illuminate to control lighting level and fan speed, then fully retract when not in use.
Commercial-Type Baffle Filters
  • Efficiently remove heat and grease vapors from the air.
Stainless Steel Dishwasher-Safe Filters
  • Easily removed for quick cleaning.
Low-Profile Filter System
  • Reduces interior hood space, leaving less surface to clean.

Optional Accessories

Wall Hood Duct Covers
  • DCW48
  • 12" depth, 12" height duct cover
Wall Hood Backsplashes
  • BKS48
  • Protect wall space below hood
  • Create a continuous finish between cooking surface and hood
  • Low maintenance, easy to clean
  • 30" high
  • Available in stainless steel (SS) only
Wall Hood Warming Shelf Panels
  • WGP48
  • Hold cookware and condiments
  • May be used with a heat lamp to keep food warm
  • Fold up/down, heavy-duty warming shelves (non-removable) factory installed on stainless steel (SS) backsplashes
  • 15 7/8" wide by 10 1/8" deep
  • Model has two shelves
  • Available in stainless steel (SS) only
In-Line Blower Accessories
  • VSIL10 - Duct Silencer Accessory for 10" duct
  • ILVK - Vibration Isolator Kit Accessory
