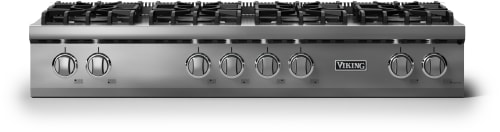

Viking 5 Series VRT54848BSS - 48 Inch Rangetop
Viking 5 Series VRT54848BSS - 48 Inch Rangetop
Viking 5 Series VRT54848BSS - 48 Inch Rangetop

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Viking 5 Series VRT54848BSS
Authorized
Dealer

Viking 5 Series
VRT54848BSS
48 Inch Gas Rangetop with 8 Sealed Burners, VSH™ Pro Sealed Burner System, TruPower Plus™ Burner, VariSimmer™, Continuous Cast-Iron Grates, SureSpark™ Ignition System, and SoftLit™ LED Lighting: Stainless Steel with Polished Chrome Trim - NG

Top Quality Store on Google
Only 4 left in stock
quick specs
Sabbath Mode: No
Number of Burners: 8
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Downdraft Venting: No
Actual Width: 47 7/8 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes
Grill: No
Griddle: Yes
Warranty Terms: 2 years
?
View more
Color & Gas: Stainless Steel with Polished Chrome Trim - NG
Stainless Steel with Polished Chrome Trim - NG
Stainless Steel with Polished Chrome Trim - NG
VRT54848BSS
$6,089.00
In stock
Stainless Steel with Polished Chrome Trim - LP
Stainless Steel with Polished Chrome Trim - LP
VRT54848BSSLP
$6,089.00
In stock
Stainless Steel with Brushed Brass Trim - NG
Stainless Steel with Brushed Brass Trim - NG
VRT54848BSSBB
$6,689.00
Stainless Steel with Brushed Brass Trim - LP
Stainless Steel with Brushed Brass Trim - LP
VRT54848BSSBBLP
$6,689.00
$6,089.00
MSRP: $6,519.00
You save $430.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Have questions? Chat with us!
Product Information
Brand: Viking
Series: 5 Series
Model: VRT54848BSS
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Fuel Subtype: Natural Gas
Number of Burners: 8
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Controls Location: Front
Color: Stainless Steel
Surface Color: Stainless Steel
Trim Color: Polished Chrome
Glass Surface: No
Downdraft Venting: No
Dimensions
Actual Width: 47 7/8 Inch
Actual Depth: 28 9/16 Inch
Actual Height: 9 1/4 Inch
Cutout Width: 36 Inch
Cutout Depth: 24 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
AI Technology: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 2 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 3 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 4 Output: 15,000 BTU NG / 12,500 BTU LP (GRIDDLE)
Burner 5 Output: 15,000 BTU NG / 12,500 BTU LP (GRIDDLE)
Burner 6 Output: 15,000 BTU NG / 12,500 BTU LP (GRIDDLE)
Burner 7 Output: 15,000 BTU NG / 12,500 BTU LP (GRIDDLE)
Burner 8 Output: 18,500 BTU NG / 16,600 BTU LP
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: Griddle
Grill: No
Griddle: Yes
French Top: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
LP Conversion: Optional
Amps: 5
Voltage: 120 Volts
Are you a Trade Pro? Join Now

Description

48 Inch Gas Rangetop with 8 Sealed Burners
Take on ambitious menus with the spacious cooking surface of this Viking 5 Series gas rangetop. Eight sealed burners provide room for multiple pots and pans, while a TruPower Plus™ burner adds power for larger cooking tasks. VariSimmer™ brings precise low-heat control to every burner, and SureSpark™ automatically reignites an extinguished flame. Continuous cast-iron grates make it easier to rearrange cookware, while the porcelainized cooking surface and illuminated stainless steel knobs add everyday convenience.

Specifications

Overview
Brand:
Viking
Series:
5 Series
Model:
VRT54848BSS
Product Type:
Gas Rangetop
Nominal Width:
48"
Fuel Type:
Natural Gas
Finish:
Stainless Steel
Accent Finish:
Polished Chrome
Control Type:
Knobs
Knob Material:
Stainless Steel
Cooking Features
Number of Burners:
8
Burner Type:
Sealed
Burner System:
VSH™ Pro Sealed Burner System
Standard Burners:
7 at 15,000 BTU Each
TruPower Plus™ Burner:
18,500 BTU
TruPower Plus™ Burner Location:
Front Right
VariSimmer™:
All Burners
Ignition System:
SureSpark™ with Automatic Re-Ignition
Grates:
Continuous Porcelainized Cast Iron
Cooking Surface:
One-Piece Porcelainized Surface
Control Lighting:
SoftLit™ LED
Island Trim:
Included; Factory Installed
Electrical and Gas Requirements
Voltage:
120 V
Frequency:
60 Hz
Maximum Current Draw:
0.5 A
Power Cord:
48"; Grounded 3-Prong Plug
Gas Service Line:
1/2" ID
Dimensions and Weight
Overall Width:
47 7/8"
Height to Top of Grates:
9 1/4"
Height to Top of Island Trim:
9 1/8"
Depth to End of Side Panel:
24 5/16"
Depth to End of Landing Ledge:
28 1/16"
Depth Including Knobs:
28 9/16"
Cutout Width:
48"
Cutout Height:
7 3/4"
Cutout Depth:
24" Minimum–25 3/4" Maximum
Approximate Shipping Weight:
200 lbs
Warranty
Full Product Warranty:
2 Years
Limited Gas Burner Warranty:
5 Years

Features

8 Sealed Burners
  • An expansive eight-burner layout provides the flexibility to prepare multiple dishes at once for family meals and entertaining.
VSH™ Pro Sealed Burner System
  • Viking's VariSimmer-to-High burner system delivers adjustable heat for a wide range of cooking techniques.
TruPower Plus™ Burner
  • The front-right burner provides added power for large cookware, boiling water, and high-heat cooking.
VariSimmer™
  • Every burner includes a gentle, adjustable simmer setting for sauces, soups, and foods that require careful heat control.
SureSpark™ Ignition System
  • Automatic ignition and re-ignition help maintain reliable burner operation, even at the lowest setting.
Continuous Cast-Iron Grates
  • Heavy-duty, porcelainized cast-iron grates create a continuous cooking surface for easier movement of large pots and pans.
Easy-Clean Cooking Surface
  • The one-piece porcelainized surface and removable burner caps help simplify cleanup after cooking.
SoftLit™ LED Lighting
  • LED lighting accents the control panel and illuminates the stainless steel knobs.
Included Island Trim
  • Factory-installed island trim provides a finished appearance without requiring a separate trim purchase.
Key Features
SoftLit™ LED Lights
Accent the control panel and illuminate knobs.
SureSpark™ Ignition System
Ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
TruPower Plus™
The TruPower Plus™ front burner on select Custom Series ranges lets you cook like a pro with 18,500 BTUs of professional power.
VariSimmer™ Setting
On ALL burners provides gentle, even simmering at precisely low cooking temperatures.

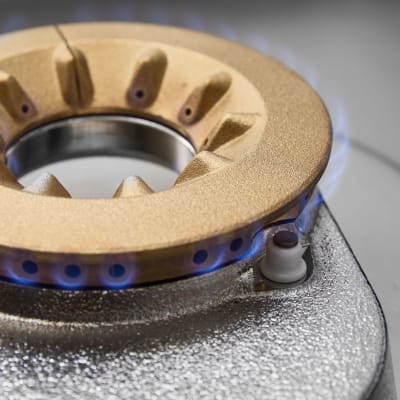

VSH™ Pro Sealed Burner System (VariSimmer™ to High)
Cook like a pro with up to 15,000 BTUs and infinite settings of easy-to-clean high performance sealed burners. Combination of unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.
