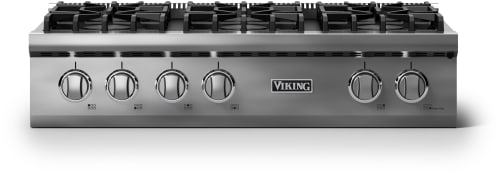

Viking 5 Series VRT53646BSSLP - 36 Inch Rangetop
Viking 5 Series VRT53646BSSLP - 36 Inch Rangetop
Viking 5 Series VRT53646BSSLP - 36 Inch Rangetop

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Viking 5 Series VRT53646BSSLP
Authorized
Dealer

Viking 5 Series
VRT53646BSSLP
36 Inch Gas Rangetop with 6 Sealed Burners, VSH™ Pro Sealed Burner System, TruPower Plus™ Burner, VariSimmer™, Continuous Cast-Iron Grates, SureSpark™ Ignition System, and SoftLit™ LED Lighting: Stainless Steel with Polished Chrome Trim - LP

Top Quality Store on Google
Only 7 left in stock
quick specs
Sabbath Mode: No
Number of Burners: 6
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Downdraft Venting: No
Actual Width: 35 7/8 Inch
WiFi: No
Simmer Burner: Yes
Power Burner: Yes
Continuous Grates: Yes
Grill: No
Griddle: No
Warranty Terms: 2 years
?
View more
Color & Gas: Stainless Steel with Polished Chrome Trim - LP
Stainless Steel with Polished Chrome Trim - NG
Stainless Steel with Polished Chrome Trim - NG
VRT53646BSS
$4,999.00
In stock
Stainless Steel with Polished Chrome Trim - LP
Stainless Steel with Polished Chrome Trim - LP
VRT53646BSSLP
$4,999.00
In stock
Stainless Steel with Brushed Brass Trim - NG
Stainless Steel with Brushed Brass Trim - NG
VRT53646BSSBB
$5,499.00
Stainless Steel with Brushed Brass Trim - LP
Stainless Steel with Brushed Brass Trim - LP
VRT53646BSSBBLP
$5,499.00
$4,999.00
MSRP: $5,349.00
You save $350.00
OR
FREE Delivery Available
In stock
In Stock Items labeled IN STOCK will ship within 2 business days from our East Coast warehouse. Actual delivery times will vary based on your location. If you are ordering multiple items and not all items are IN STOCK, the order will ship when all items are available unless you select the SPLIT SHIP option in checkout. IN STOCK may not apply to multiple quantities of the same product.
Current Offers
Viking: Buy One, Get One+ – Save Up to $5,318 Expires 12/31/2026
Have questions? Chat with us!
Product Information
Brand: Viking
Series: 5 Series
Model: VRT53646BSSLP
Warranty Terms: 2 years
?
Appearance
Fuel Type: Gas
Fuel Subtype: Liquid Propane
Number of Burners: 6
Style: Sealed Burner
Type: Rangetop
Control Type: Knobs
Controls Location: Front
Color: Stainless Steel
Surface Color: Stainless Steel
Trim Color: Polished Chrome
Glass Surface: No
Downdraft Venting: No
Dimensions
Actual Width: 35 7/8 Inch
Actual Depth: 28 9/16 Inch
Actual Height: 9 1/4 Inch
Cutout Width: 36 Inch
Cutout Depth: 24 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: STAR-K
Smart
WiFi: No
AI Technology: No
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 2 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 3 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 4 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 5 Output: 15,000 BTU NG / 13,500 BTU LP
Burner 6 Output: 18,500 BTU NG / 16,600 BTU LP
Gas Cooktop Features
Continuous Grates: Yes
Cooktop Accessory: No Accessory
Grill: No
Griddle: No
French Top: No
Technical Details
ADA Compliant: No
Energy Star Rated: No
LP Conversion: Optional
Amps: 5
Voltage: 120 Volts
GTIN
UPC: 800284110293
Are you a Trade Pro? Join Now

Description

36 Inch Gas Rangetop with 6 Sealed Burners
Give every dish its own place with this Viking 5 Series gas rangetop. Six sealed burners provide room to manage a complete meal, while the TruPower Plus™ burner adds power for boiling and high-heat cooking. VariSimmer™ offers precise low-heat control on every burner, and SureSpark™ automatically reignites a flame if it goes out. Continuous cast-iron grates help cookware move smoothly across the cooking surface, while illuminated stainless steel knobs and a porcelainized surface bring convenience to both cooking and cleanup.

Specifications

Overview
Brand:
Viking
Series:
5 Series
Model:
VRT53646BSSLP
Product Type:
Gas Rangetop
Nominal Width:
36"
Fuel Type:
Liquid Propane
Finish:
Stainless Steel
Accent Finish:
Polished Chrome
Control Type:
Knobs
Knob Material:
Stainless Steel
Cooking Features
Number of Burners:
6
Burner Type:
Sealed
Burner System:
VSH™ Pro Sealed Burner System
Standard Burners:
5 at 13,500 BTU Each
TruPower Plus™ Burner:
16,600 BTU
TruPower Plus™ Burner Location:
Front Right
VariSimmer™:
All Burners
Ignition System:
SureSpark™ with Automatic Re-Ignition
Grates:
Continuous Porcelainized Cast Iron
Cooking Surface:
One-Piece Porcelainized Surface
Control Lighting:
SoftLit™ LED
Island Trim:
Included; Factory Installed
Electrical and Gas Requirements
Voltage:
120 V
Frequency:
60 Hz
Maximum Current Draw:
0.5 A
Power Cord:
48"; Grounded 3-Prong Plug
Gas Service Line:
1/2" ID
Dimensions and Weight
Overall Width:
35 7/8"
Height to Top of Grates:
9 1/4"
Height to Top of Island Trim:
9 1/8"
Depth to End of Side Panel:
24 5/16"
Depth to End of Landing Ledge:
28 1/16"
Depth Including Knobs:
28 9/16"
Cutout Width:
36"
Cutout Height:
7 3/4"
Cutout Depth:
24" Minimum–25 3/4" Maximum
Approximate Shipping Weight:
150 lbs
Warranty
Full Product Warranty:
2 Years
Limited Gas Burner Warranty:
5 Years

Features

6 Sealed Burners
  • Six sealed burners provide the flexibility to prepare several dishes at once, from everyday meals to larger gatherings.
VSH™ Pro Sealed Burner System
  • Viking's VariSimmer-to-High burner system provides adjustable heat for everything from delicate simmering to high-heat cooking.
TruPower Plus™ Burner
  • The front-right burner delivers added power for large cookware, boiling water, and demanding cooking tasks.
VariSimmer™
  • Every burner includes a gentle, adjustable simmer setting for sauces, soups, and other foods that require careful heat control.
SureSpark™ Ignition System
  • Automatic ignition and re-ignition help maintain reliable burner operation, even at the lowest setting.
Continuous Cast-Iron Grates
  • Heavy-duty, porcelainized cast-iron grates create a continuous surface for moving cookware between burners.
Easy-Clean Cooking Surface
  • A one-piece porcelainized surface and removable burner caps help simplify cleanup after a busy cooking session.
SoftLit™ LED Lighting
  • LED lighting accents the control panel and illuminates the stainless steel knobs.
Included Island Trim
  • Factory-installed island trim provides a finished appearance without requiring a separate trim purchase.
