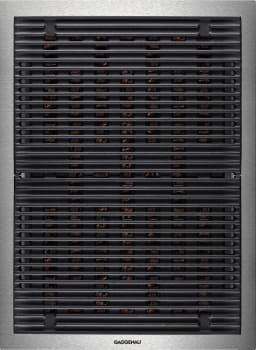

Gaggenau Vario 400 Series

VR414611

15 Inch Electric Grill with 2 Cooking Zones, Open Cast-Iron Grill, Solid Stainless Steel Control Knob, 12 Output Levels, Residual Heat Indicator, Pre-Heat, Safety Shut-Off, and Grease Collecting Insert

Main Features

• Two zones can be operated together or separately.

• Half size cast-iron griddle included for simultaneous searing and grilling on two separate surfaces.

• Open cast-iron grill, lava stones.

• Solid stainless steel control knob.

• Precision-crafted 3 mm stainless steel.

• For surface mounting with a visible edge or for flush mounting.

• Can be combined with other Vario 400 series products.

Operation

• Control knobs with illuminated ring, cooking zone and output level markings.

• Electronic control in 12 output levels.

Features

• Cooktop, lava stone trough and grease collecting insert from stainless steel.

• Two zones, each 1500W, can be operated together as a complete surface or each halve separately.

• Two-part cast grill.

Safety

• Safety shut-off.

• Pre-heat and residual heat indicator.

Planning Notes

• Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.

• If installing with the appliance cover VA 440 take into account the additional space required for the depth.

• If combining several Vario 400 series appliances, a connection strip VA 420 must be placed between the appliances.

• Depending on the type of installation, the corresponding connection strip must be provided.

• The bearing capacity and stability, in the case of thin countertops in particular, must be supported using suitable substructures.

• Take into account the appliance weight and additional loads.

• Additional instructions for flush mounting: Installation is possible in countertops made of stone, synthetics or solid wood.

• Heat resistance and watertight sealing of the cut edges must be observed.

• Concerning other materials please consult the countertop manufacturer.

• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured.

• Do not use discontinuous lining.

• The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.

• If installing several appliances in individual cut-outs, allow for a minimum distance of 1 ¹âµ/â ?â ? ?" (50 mm) between the cooktops.

• A minimum lateral clearance of at least 4" from adjacent heat-sensitive cabinets or from the wall must be observed.

• Recirculation is not recommended for the electric grill.

• It is recommended that the electric grill is installed, if possible, in the center of the cooktop configuration and not at the edge.

• Appliance can be snapped into the countertop from above.
