Description

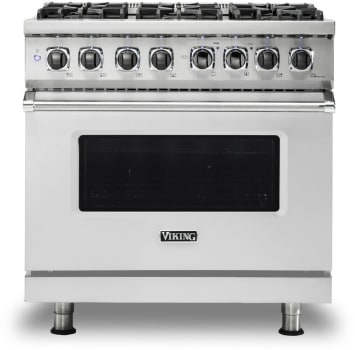

36 Inch Freestanding Professional Dual Fuel Range with 6 Sealed Burners
From the delicate VariSimmer™ setting to the 15,000 BTUs, available on all burners, this is a precise and powerful sealed burner system. The Pro Sealed Burner System delivers precision control of all burners, including the TruPower Plus™ 18,500 BTU burner included on select models. And a host of ultra-premium features will help you perfect even the most challenging recipes.
Specifications
Overview
Cooktop Control Type:
Knobs
Interior Oven Light:
Yes, Halogen
Included Accessory:
Island Trim (shipped standard with 36" range)
Burner Output
Burner Rating 1:
18,500 BTU (5.4 kW)
Burner Rating 2:
15,000 BTU (4.4 kW)
Burner Rating 3:
15,000 BTU (4.4 kW)
Burner Rating 4:
15,000 BTU (4.4 kW)
Burner Rating 5:
15,000 BTU (4.4 kW)
Burner Rating 6:
15,000 BTU (4.4 kW)
Optional Accessories
BG8536SS:
8" H. backguard for 36" range
HS24536SS:
High shelf for 36" range
P24CSTSS:
Countertop side trim (2 pieces)
P36CRTSS:
Countertop rear trim for 36" range
P36CBF4SS:
Curb base and custom curb base front for 36" range
LPKPDR:
LP/Propane Conversion Kit
Bamboo Cutting Board:
CBC12G
Electrical Specifications
Requirements:
240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or "pigtail"
Maximum Amp Usage:
240V - 30.5 amps; 208V - 26.4 amps
Dimensions & Weight
Overall Height from Bottom:
To top of side trim 35-7/8" min. - 37" max.; legs adjust 1-1/8"
Additions to Base Height:
To top of island trim - add 1"; to top of backguard - add 8"; To top of high shelf - add 23-1/2"
Overall Depth from Rear:
To end of side panel - 24-5/16"; to front of door - 25-3/4"; To end of door handle - 28-11/16"
Oven Interior Height:
16 1/2"
Oven Interior Depth:
19 1/2"
Approximate Shipping Weight:
500 lbs
Warranty
2-Year Full:
Complete product
90-Day Full:
Cosmetic parts such as glass, painted items, and decorative items
5-Year Limited:
All gas burners, electric elements (Dual Fuel)
Features
Pro Sealed Burner System
- Provide between 15,000 and 18,500 BTUs to meet various cooking requirements.
VariSimmer™ Setting
- EXCLUSIVE VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
SureSpark™ Ignition System
- For consistent and reliable ignition.
- Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished, even on lowest setting.
Vari-Speed Dual Flow™ Convection System
- Largest convection fan in the industry; the 8 1/2" fan works bi-directionally for maximum airflow and excellent cooking results.
10-Pass Dual Bake Element
- Concealed 10-pass dual bake element provides precise temperature control.
10-Pass Broiler
- Large 10-pass broiler with heat reflector.
Rapid Ready™ Preheat
- Provides one of the fastest preheat times, so your oven is ready to begin cooking when you are.
NEW Heavy-Duty BlackChrome™ Knobs
- Keep your kitchen looking sleek with heavy-duty black knobs with a square bezel.
NEW Gentle Close™ Door
- Allows door to close slowly.
NEW SoftLit™ LED Lights
- Accent the control panel and illuminate knobs.
3 Oven Lights
- Three strategically located oven lights provide maximum visibility.
Removable Burner Caps
- Burner caps are easily removable for quick cleaning.
Cast Iron Grates
- Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.
Concealed Bake Element
- Make for easy cleanup of oven cavity.
TruGlide™ Full Extension Rack
- Six porcelain-coated rack positions and comes standard with three oven racks including one TruGlide™ Full Extension Rack.
Porcelainized Cooking Surface
- Raised edges around perimeter seal top to completely contain spills.
- Porcelanized for easy cleaning, durability and long lasting finish.
Large Capacity Oven
- Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
Racks
- Oven has six porcelain-coated rack positions and comes standard with three racks.
High-Performance Cooking Modes
- Bake, Convection Bake, TruConvec™ Convection Cooking, Convection Roast, Broil, Convection Broil, Convection Dehydrate, and Convection Defrost.
Additional Features
- NEW larger window opening
- Self-cleaning porcelain oven
