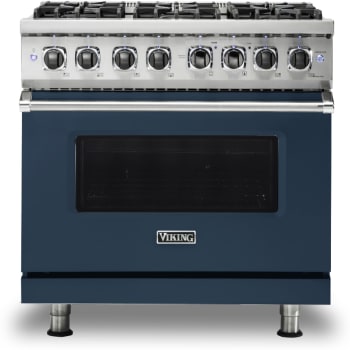

Viking 5 Series VDR5366BSB - 36" Dual Fuel Range

Authorized

Dealer

Viking 5 Series

VDR5366BSB

36 Inch Freestanding Dual Fuel Range with 6 Sealed Burners, 5.6 Cu. Ft. Capacity, Self-Cleaning, Vari-Speed Dual Flow™ Convection, SoftLit™ LED Light, TruPower Plus™ Burner and Star-K Certified: Slate Blue, Natural Gas

Average rating of
6 reviews

Top Quality Store on Google

Save $1,000 Instantly

quick specs

Sabbath Mode: Yes

Fingerprint Resistant: No

Cooktop: Sealed Burner

Drawer: None

Width: 35 7/8 Inch

Depth: 28 11/16 Inch

Height: 37 Inch

Number of Burners: 6

Primary Oven Capacity: 5.6 Cu. Ft.

Continuous Grates: Yes

Convection: Yes

Self-Cleaning: Yes

Steam Clean: No

Glide Rack(s): Yes

Temperature Probe: No

Warranty Terms: 2 years

Width:

36 Inch

Color:

Slate Blue

Trim Color:

Stainless Steel

Fuel Type:

Dual Fuel

Fuel Subtype:

Natural Gas

Liquid Propane

Natural Gas

Cooktop Accessory:

No Accessory

Cooktop:

Sealed Burner

NO LONGER AVAILABLE
Try This Instead

Have questions? Chat with us!

Recommended Accessories & Add-ons

Viking

24 Inch Fully Integrated Dishwasher

Product Information

Brand: Viking

Series: 5 Series

Model: VDR5366BSB

Warranty Terms: 2 years

Appearance

Fuel Type: Dual Fuel

Fuel Subtype: Natural Gas

Style: Freestanding

Color: Slate Blue

Trim Color: Stainless Steel

Fingerprint Resistant: No

Stainless Steel Handle: Yes

Cooktop: Sealed Burner

Cooktop Control Type: Knobs

Oven Control Type: Knobs

Viewing Window: Yes

Double Oven: No

Drawer: None

Clock: No

Dimensions

Width: 35 7/8 Inch

Depth: 28 11/16 Inch

Height: 37 Inch

Shabbos Compliance

Sabbath Mode: Yes

Certification: STAR-K

Smart

WiFi: No

Smart Accessory Required: No

Capacity

Number of Burners: 6

Primary Oven Capacity: 5.6 Cu. Ft.

Burner

Simmer Burner: Yes

Power Burner: Yes

Burner 1 Output: 18500

Burner 2 Output: 15000

Burner 3 Output: 15000

Burner 4 Output: 15000

Burner 5 Output: 15000

Burner 6 Output: 15000

Gas Cooktop Features

Continuous Grates: Yes

Dishwasher Safe Grates: Yes

Cooktop Accessory: No Accessory

Grill: No

Griddle: No

French Top: No

Oven Features

Digital Temperature Display: No

Timer: No

Delay Bake: No

Fast Preheat: Yes

Convection: Yes

Proof Mode: No

Self-Cleaning: Yes

Self-Cleaning Type: High Heat

Steam Clean: No

Racks: 3

Glide Rack(s): Yes

Temperature Probe: No

Broiler Element Location: Top

Broiler Pan Included: No

Interior Oven Light: Yes

Removable Door: Yes

Technical Details

ADA Compliant: No

LP Conversion: Yes - Purchase Kit

Voltage: 240/208 Volts

GTIN

UPC: 800284027935

EAN: 0800284027935

Description
Specifications
Features
Rebates
Reviews

Description

36 Inch Freestanding Professional Dual Fuel Range with 6 Sealed Burners
From the delicate VariSimmer™ setting to the 15,000 BTUs, available on all burners, this is a precise and powerful sealed burner system. The Pro Sealed Burner System delivers precision control of all burners, including the TruPower Plus™ 18,500 BTU burner included on select models. And a host of ultra-premium features will help you perfect even the most challenging recipes.

Specifications

Overview

Capacity:

5.6 Cu. Ft.

Style:

Freestanding

Cooktop:

Sealed Burner

Drawer:

None

Viewing Window:

Yes

Fuel Type:

Dual Fuel

Continuous Grates:

Yes

Number of Burners:

Cooktop Control Type:

Knobs

Oven Control Type:

Knobs

Grill:

Griddle:

Oven Racks:

Interior Oven Light:

Yes, Halogen

Self-Cleaning:

Yes

Included Accessory:

Island Trim (shipped standard with 36" range)

Burner Output

Burner Rating 1:

18,500 BTU (5.4 kW)

Burner Rating 2:

15,000 BTU (4.4 kW)

Burner Rating 3:

15,000 BTU (4.4 kW)

Burner Rating 4:

15,000 BTU (4.4 kW)

Burner Rating 5:

15,000 BTU (4.4 kW)

Burner Rating 6:

15,000 BTU (4.4 kW)

Optional Accessories

BG8536SS:

8" H. backguard for 36" range

HS24536SS:

High shelf for 36" range

P24CSTSS:

Countertop side trim (2 pieces)

P36CRTSS:

Countertop rear trim for 36" range

P36CBF4SS:

Curb base and custom curb base front for 36" range

LPKPDR:

LP/Propane Conversion Kit

Bamboo Cutting Board:

CBC12G

Bamboo Cover:

CBC12QB

Electrical Specifications

Requirements:

240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or "pigtail"

Maximum Amp Usage:

240V - 30.5 amps; 208V - 26.4 amps

Dimensions & Weight

Overall Width:

35-7/8"

Overall Height from Bottom:

To top of side trim 35-7/8" min. - 37" max.; legs adjust 1-1/8"

Additions to Base Height:

To top of island trim - add 1"; to top of backguard - add 8"; To top of high shelf - add 23-1/2"

Overall Depth from Rear:

To end of side panel - 24-5/16"; to front of door - 25-3/4"; To end of door handle - 28-11/16"

Oven Interior Width:

30"

Oven Interior Height:

16 1/2"

Oven Interior Depth:

19 1/2"

Approximate Shipping Weight:

500 lbs

Warranty

2-Year Full:

Complete product

90-Day Full:

Cosmetic parts such as glass, painted items, and decorative items

5-Year Limited:

All gas burners, electric elements (Dual Fuel)

Features

Pro Sealed Burner System

Provide between 15,000 and 18,500 BTUs to meet various cooking requirements.

VariSimmer™ Setting

EXCLUSIVE VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.

SureSpark™ Ignition System

For consistent and reliable ignition.

Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished, even on lowest setting.

Vari-Speed Dual Flow™ Convection System

Largest convection fan in the industry; the 8 1/2" fan works bi-directionally for maximum airflow and excellent cooking results.

10-Pass Dual Bake Element

Concealed 10-pass dual bake element provides precise temperature control.

10-Pass Broiler

Large 10-pass broiler with heat reflector.

Rapid Ready™ Preheat

Provides one of the fastest preheat times, so your oven is ready to begin cooking when you are.

NEW Heavy-Duty BlackChrome™ Knobs

Keep your kitchen looking sleek with heavy-duty black knobs with a square bezel.

NEW Gentle Close™ Door

Allows door to close slowly.

NEW SoftLit™ LED Lights

Accent the control panel and illuminate knobs.

3 Oven Lights

Three strategically located oven lights provide maximum visibility.

Removable Burner Caps

Burner caps are easily removable for quick cleaning.

Cast Iron Grates

Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots.

Concealed Bake Element

Make for easy cleanup of oven cavity.

TruGlide™ Full Extension Rack

Six porcelain-coated rack positions and comes standard with three oven racks including one TruGlide™ Full Extension Rack.

Porcelainized Cooking Surface

Raised edges around perimeter seal top to completely contain spills.

Porcelanized for easy cleaning, durability and long lasting finish.

Large Capacity Oven

Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.

Racks

Oven has six porcelain-coated rack positions and comes standard with three racks.

High-Performance Cooking Modes

Bake, Convection Bake, TruConvec™ Convection Cooking, Convection Roast, Broil, Convection Broil, Convection Dehydrate, and Convection Defrost.

Additional Features

NEW larger window opening

Self-cleaning porcelain oven
