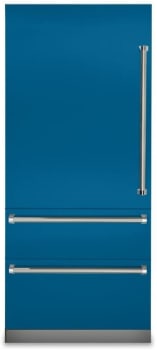

Viking 7 Series VBI7360WLAB - 36" Fully Integrated Bottom-Freezer Refrigerator
Viking 7 Series VBI7360WLAB - 36" Fully Integrated Bottom-Freezer Refrigerator
Viking 7 Series VBI7360WLAB - Water Dispenser
Viking 7 Series VBI7360WLAB - LED Lighting
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Viking 7 Series VBI7360WLAB
Authorized
Dealer

Viking 7 Series
VBI7360WLAB
36 Inch Built-In Bottom Mount Refrigerator with 19.95 Cu. Ft. Total Capacity, Internal Water Dispenser, BlueZone™ Fresh Preservation Technology, Spillproof Plus™ Shelves, and ENERGY STAR® Certified: Alluvial Blue, Left Hinge

Top Quality Store on Google
quick specs
Sabbath Mode: Yes
Refrigerator Capacity: 13.6 Cu. Ft.
Freezer Capacity: 6.35 Cu. Ft.
Total Capacity: 19.95 Cu. Ft.
Width: 36 Inch
Depth: 27 3/8 Inch
Height: 84 3/4 Inch
WiFi: No
Smart Accessory Required: No
No. of Shelves: 3
Gallon Door Storage: No
ADA Compliant: No
Water Dispenser: Internal
Ice Maker: No
Warranty Terms: 2 years
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

24 Inch Fully Integrated Dishwasher
Viking
24 Inch Fully Integrated Dishwasher
24 Inch Fully Integrated Panel Ready Built In Dishwasher
Viking
24 Inch Fully Integrated Panel Ready Built In Dishwasher
Product Information
Brand: Viking
Series: 7 Series
Model: VBI7360WLAB
Warranty Terms: 2 years
?
Appearance
Type: Built In
Style: Bottom Freezer
Size: Full Size
Counter Depth: Yes
Double Freezer Drawers: Yes
Glass Door: No
Hinge Side: Left
Field Reversible Doors: No
Door Finish: Smooth
Accepts Custom Panels: No
Wine Racks (Category): No
Color: Blue
Door Color: Blue
Cabinet Color: Blue
Freezer Drawers: Double
Door Hinge Covers/Hidden Hinges: Yes
Rollers: No
Leveling Legs: No
Capacity
Refrigerator Capacity: 13.6 Cu. Ft.
Freezer Capacity: 6.35 Cu. Ft.
Total Capacity: 19.95 Cu. Ft.
Dimensions
Width: 36 Inch
Depth: 27 3/8 Inch
Depth without Door and Handles: 22 1/2 Inch
Depth without Handles: 24 3/4 Inch
Height: 84 3/4 Inch
Cutout Width: 36 Inch
Cutout Depth: 25 Inch
Cutout Height: 85 3/16 Inch
Shabbos Compliance
Sabbath Mode: Yes
Smart
WiFi: No
Smart Accessory Required: No
Refrigerator Features
Type of Shelves: Glass
No. of Shelves: 3
No. of Fixed Shelves: 1
No. of Adjustable Shelves: 3
Spill Safe Shelves: Yes
No. of Door Bins: 3
Adjustable Door Bins: Yes
Gallon Door Storage: No
Humidity Controlled Crispers: 1
Touch Screen: No
Drawer Divider: No
Odor Control: Yes
Freezer Features
Defrost: Automatic
Quick Freeze: Yes
No. of Drawers: 2
Technical Details
Energy Star Rated: Yes
ADA Compliant: No
Approved for Commercial Use: Yes
Approved for Medical Use: No
Approved for Outdoor Use: No
Amps: 15
Voltage: 115 Volts
Water
Water Dispenser: Internal
Hot Water Dispenser: No
Sparkling Water Dispenser: No
Water Filtration: Yes
Ice
Ice Dispenser: No
Ice Maker: No
GTIN
UPC: 800284038818
EAN: 0800284038818
Are you a Trade Pro? Join Now

Description

36 Inch Built-In Bottom Mount Refrigerator with 19.95 Cu. Ft. Total Capacity
Keep fruits and vegetables fresh with this 36-inch Viking Professional 7 Series bottom-freezer refrigerator. The Professional bottom-freezer refrigerator features a drawer-style freezer compartment to store frozen foods neatly and offer easier access to bulky items. With the freezer located below, the large-capacity refrigerator compartment stores fresh foods at an easy-to-reach level. The Spillproof Plus shelves contain spills for easy cleaning, while energy-efficient LEDs enhance visibility. This Viking Professional 7 Series bottom-freezer refrigerator has a separate crisper drawer that provides a dedicated compartment for meat and produces, and the dual-compressor system maintains a cool environment.

Specifications

Capacity
Refrigerator:
13.6 Cu. Ft.
Freezer:
6.35 Cu. Ft.
Total Capacity:
19.95 Cu. Ft.
Accessories
RWFDISP:
Replacement water filter
RBZB7:
BlueZone replacement bulb
PHK528SS:
Professional Stainless Steel handle (1 piece / 28")
MHK633SS:
Virtuoso Stainless Steel handle (1 piece / 33")
MHK633BG:
Virtuoso Black Glass handle (1 piece / 33")
Dimensions & Weight
Overall Width:
36"
Overall Height (from bottom):
83-15/16" min. to 84-3/4" max.
Overall Depth from Rear:
22-1/2" front edge kickplate; 24-3/4" front of door panel; 27-3/8" front of handle endcap
Cutout Width:
36"
Cutout Height:
84" min. to 85-3/16" max.
Cutout Depth:
25"
Electrical Specifications
Volts:
115 V
Amps:
15 A
Connection:
3-wire cord with a grounded 3-prong plug attached to the product
Warranty
2-Year Full:
Complete product
6-Year Full:
Sealed refrigeration system
90-Day Full:
Cosmetic parts such as glass, painted items, and decorative items
12-Year Limited:
Sealed refrigeration system (includes a compressor, condenser, dryer/strainer, evaporator, and connecting tubing)

Features

Feather Touch™ Internal Water Dispenser
  • Dispenses filtered water with a single touch.
BlueZone™ Fresh Preservation Technology
  • A unique patented air cleaning technology that strips microbes, ethylene gas, hydrocarbons, and odors from the air.
Soft Close Freezer Drawers
  • It forms a positive seal in the freezer compartment.
Spillproof Plus™ Shelves
  • Spillproof plus™ shelves with nanotechnology create an invisible barrier to contain spills.
BlueZone Blub
  • The patented BlueZone bulb will last about 12 months which is about 8,000 hours of use and an indicator light will appear when it is time to replace.
Proprietary Fully Articulating Hinge
  • It has three-dimensional adjustabilities for a perfect fit in integrated installations, and the hinge damper allows for smoothness when opening and closing the door.
Brilliant Led Lighting
  • Ensures all items are in clear view with bright, energy-efficient, ramp-on theater LED lighting from top and sidewalls.
Separate Crisper Drawer
  • Offers a dedicated area for produce/meat.
Seamless Glass Shelves
  • Make cleanup easy and maximize usable space.
3/8" Thick Tempered Glass Shelves
  • Provide industry-leading durability.
High-Efficiency Overdrive™ Compressors
  • Two independent variable-speed high-efficiency overdrive™ compressors quickly chill food and save energy.
Bottom Compressor
  • Compressor is now located on the bottom allowing for full integration of the product.
Digital Controls
  • Numerous settings provide ultimate performance: max refrigerator, max freezer, max ice, sabbath mode, vacation mode.
Pro Chill™ Temperature Management
  • One of the quietest, most technologically advanced compressors available with electronic controls.
  • Maintains temperature to within 1°F to keep food fresher longer.

Additional Features

  • Sabbath Mode
  • Energy Star® Certified
