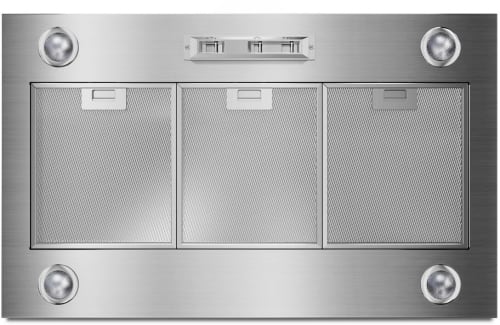

Whirlpool UVL6036JSS - Front View
Whirlpool UVL6036JSS - Front View

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Whirlpool UVL6036JSS
Authorized
Dealer

Whirlpool
UVL6036JSS
36 Inch Under Cabinet Range Hood Insert with 3 Speed Fan Control, 585 or 1170 CFM Motor, LED Lighting, Night Light Setting, Removable Filters, and Slider Controls

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Width: 36 Inch
Depth: 11 Inch
Height: 11 1/2 Inch
WiFi: No
CFM: 1,170 CFM
Duct Size: 10 Inch
Number of Fan Speeds: 3
Lights: LED
View more
$1,118.00
MSRP: $1,249.00
You save $131.00
OR
Have questions? Chat with us!
Product Information
Brand: Whirlpool
Model: UVL6036JSS
Appearance
Style: Standard Hood
Type: Insert Liner
Color: Stainless Steel
Mounting Type: Under Cabinet
Venting Type: Ducted
Blower Included: No
Blower Type: Sold Separately
Dimensions
Width: 36 Inch
Depth: 11 Inch
Height: 11 1/2 Inch
Smart
WiFi: No
Capacity
CFM: 1,170 CFM
Duct Size: 10 Inch
Features
Number of Fan Speeds: 3
Lighting Levels: 2
Lights: LED
Technical Details
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 883049569505
EAN: 0883049569505
Are you a Trade Pro? Join Now

Description


This 36-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 36-inch ranges or cooktops of comparable output.

Specifications

Configuration and Overview
Hood Type:
Under Cabinet Insert
Venting Type:
Exterior or Recirculating
Fan CFM:
Requires 585 or 1170 CFM Motor
Dimensions
Width:
36"
Depth:
11 7/8"
Height:
13 5/8"
Controls
Number of Fan Speeds:
3
Task Light:
LED (x4)

Features

1170 CFM Motor
  • Requires 585 or 1170 CFM Motor Class Blower allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
105,000 BTU Rating
  • Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
3 Speed Fan
  • Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Four LED Lights with Night Light Setting
  • Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Filters
  • Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
Additional Features
  • Slider Controls
