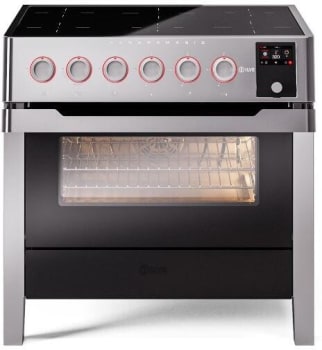

Ilve Panoramagic UPMI09S3SS - Panoramagic 36 Inch Freestanding Electric Induction Range in Front View
Ilve Panoramagic UPMI09S3SS - Panoramagic 36 Inch Freestanding Electric Induction Range in Front View
Ilve Panoramagic UPMI09S3SS - Panoramagic 36 Inch Freestanding Electric Induction Range in Front View
Ilve Panoramagic UPMI09S3SS - Panoramagic 36 Inch Freestanding Electric Induction Range in Opened View
+10

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Ilve Panoramagic UPMI09S3SS
Authorized
Dealer

Ilve Panoramagic
UPMI09S3SS
36 Inch Freestanding Electric Induction Range with 6 Elements, 3.5 cu. ft. Oven Capacity, Warming Drawer, and 4.3" Full Touch Display: Stainless Steel

Top Quality Store on Google
quick specs
Sabbath Mode: No
Fingerprint Resistant: No
Cooktop: Smoothtop
Drawer: Warming
Width: 35 7/8 Inch
Depth: 29 13/23 Inch
Height: 35 3/4 Inch
Number of Burners: 6
Primary Oven Capacity: 3.5 Cu. Ft.
Hot Surface Indicator Light: Yes
Convection: Yes
Temperature Probe: Yes
View more
Color: Stainless Steel
Stainless Steel
Stainless Steel
UPMI09S3SS
$11,690.00
Matte Black
Matte Black
UPMI09S3MK
$11,690.00
In stock
$11,690.00
MSRP: $12,705.00
You save $1,015.00
OR
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
You Will Also Need:
Electric Cord Kit - 40 Amp, 4 ft.
+ $49.99
Have questions? Chat with us!

You Might Also Like

36 Inch Wall Mount Range Hood
Ilve
36 Inch Wall Mount Range Hood
$2,810.00
Product Information
Brand: Ilve
Series: Panoramagic
Model: UPMI09S3SS
Appearance
Fuel Type: Electric
Style: Freestanding
Color: Stainless Steel
Fingerprint Resistant: No
Cooktop: Smoothtop
Cooktop Control Type: Knobs
Oven Control Type: Digital
Viewing Window: Yes
Double Oven: No
Drawer: Warming
Clock: Yes
Downdraft Venting: No
Dimensions
Width: 35 7/8 Inch
Depth: 29 13/23 Inch
Height: 35 3/4 Inch
Shabbos Compliance
Sabbath Mode: No
Smart
WiFi: No
Smart Accessory Required: No
Capacity
Number of Burners: 6
Primary Oven Capacity: 3.5 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 2500W (front left)
Burner 2 Output: 2500W (back left)
Burner 3 Output: 1800W (back right)
Burner 4 Output: 3200W (front right)
Burner 5 Output: 3200W (middle back)
Burner 6 Output: 1800W (middle front)
Electric Cooktop Features
Hot Surface Indicator Light: Yes
Pan Detection: Yes
Power Boil: Yes
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Fast Preheat: Yes
Convection: Yes
Temperature Probe: Yes
Interior Oven Light: Yes
Removable Door: Yes
Air Fry: No
Sous Vide: No
Technical Details
ADA Compliant: No
LP Conversion: No
Amps: 50
Voltage: 240 Volts
GTIN
UPC: 8051202235945
Are you a Trade Pro? Join Now

Description

Panoramagic 36 Inch Freestanding Electric Induction Range with 6 Elements
ILVE brings the ultimate cooking experience to your kitchen with Panoramagic's modern touch to your kitchen combined with traditional Italian style and technology. This 36" induction range comes featured with Total Black Brass Non-Stick Nanotechnological Treatment, Easy Clean Enamel Oven Interior, and 4.3" Touch Screen Oven Control.

Specifications

Appearance
Style:
Freestanding
Cooktop:
Smoothtop
Drawer:
Warming
Viewing Window:
Yes
Fuel Type:
Electric
Digital Clock:
Yes
Cooktop
Induction:
Yes
Burners / Elements:
6
Elements:
6
Cooktop Control Type:
Knobs
Downdraft Ventilation:
No
Hot Surface Indicator Light:
Yes
Griddle:
No
Grill:
No
Backlit Knobs:
Yes
French Top:
No
Highest Element Output:
3200 Watts
Burner Output
Front Left Output:
2500W
Back Left Output:
2500W
Back Right Output:
1800W
Front Right Output:
3200W
Middle Back Output:
3200W
Middle Front Output:
1800W
Oven
Total Capacity:
3.5 cu. ft.
Dual Door:
No
Broiler:
Yes
Convection:
Yes
Digital Temperature Display:
Yes
Oven Control Type:
Digital
Double Oven:
No
Timer:
Yes
Temperature Probe:
Yes
Interior Oven Light:
Yes
Features
Handle Shape:
Rectangular
Handle Type:
Bar
Handcrafted from Italy:
Yes
High-End Workmanship:
Yes
Induction Technology:
Yes
TFT Oven Control Display:
Yes
Cool Door with Triple Oven Glass:
Yes
Soft Close Door System:
Yes
Residual Heat Indicator:
Yes
Rotisserie:
Yes
Booster Function:
Yes
ETL:
Yes
Details
Luxury:
Yes
Electrical Specifications
Volts:
240 V
Amps:
50 A
Frequency:
60 Hz
Dimensions
Width:
35 7/8"
Depth:
29 13/23"
Height:
35 3/4"
Exterior Width:
36"

Features

Panoramagic
  • Unique design that combines the technical features of professional kitchens with the Italian culture of design.
  • Panoramagic range cookers come in three models, all with a 4.3-inch touch screen: 48 inches with double oven and precise temperature control, 36 inches with 6 burners, or with an induction hob with 6 zones.
Total Black Brass Flame Spreader
  • With non-stick nanotechnological treatment.
  • The noble technical characteristics of brass are enriched with a nanotechnological coating that assures easy cleaning, with an elegant Total Black finish.
Hob With Cast Iron Pan Supports
  • The indestructible cast iron pan supports provide a functional and safe support for the pots.
Quick Start
  • The quick oven preheating function allows it to reach the desired temperature in a short time and you can then choose the best-suited cooking mode for the dish. It also works as rapid defrosting when a low temperature is set (85°F - 105°F).
Cold Door with Triple Removable Glass
  • Safe with children, perfectly insulated thanks to the three layers, and easy to clean.
Tangential Cooling Ventilation and High-Density Insulation
  • Prevents the furniture next to the oven and the kitchen from overheating.
Precise Electronic Temperature Control
  • The electronic control ensures that the temperature of the oven remains constant throughout, without fluctuating, as is the case in conventional ovens.
  • It can be set with precision starting from 85°F, for perfect proofing, up to 575°F, for roasting.
Cooking Probe
  • An essential accessory to check the temperature at the core, for example in meat cuts.
Steam Discharge
  • Thanks to this system, the vapors are removed from inside the cavity, allowing you to choose a drier or more moist cooking. This way, you can achieve a crispy baked dish or a soft and juicy roast.
Temperature from 85° to 575° F
  • From proofing to cooking, roasting to low temperature, ILVE ovens allow you to prepare complex and sophisticated recipes very easily, with perfect results.
Folding Grill Coil for Complete Cleaning
  • Thanks to the articulated support, the electric heating element of the grill can be lowered to clean the top part of the cavity more easily.
Door with Soft Closing System
  • The door hinges are fitted with a shock absorber that makes the closure more gradual and noiseless.
Easy Clean Enamel
  • The grease does not stick to the surface and can therefore be cleaned more easily.
Warming Drawer
  • With a soft-closing system.
4.3" Full Touch Display
  • Thanks to TFT technology, the display assures superior readability, displaying every function with clear and immediate graphics.
