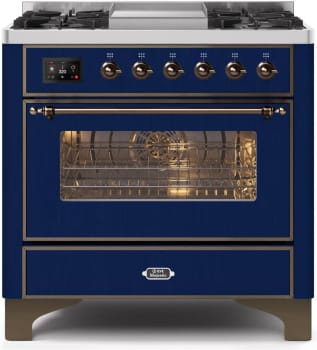

Ilve Majestic II Collection UM09FDNS3MBBLP - 36 Inch Freestanding Dual Fuel Range in Front View
Ilve Majestic II Collection UM09FDNS3MBBLP - 36 Inch Freestanding Dual Fuel Range in Front View
Ilve Majestic II Collection UM09FDNS3MBBLP - 36 Inch Freestanding Dual Fuel Range in Sealed Burner View
Ilve Majestic II Collection UM09FDNS3MBBLP - 36 Inch Freestanding Dual Fuel Range in Sealed Burner View
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Ilve Majestic II Collection UM09FDNS3MBBLP
Authorized
Dealer

Ilve Majestic II Collection
UM09FDNS3MBBLP
36 Inch Freestanding Dual Fuel Gas Range with 6 Sealed Burners, 3.5 Cu. Ft. Capacity, Storage-Warming Drawer, Continuous Grates, Self-Clean, Griddle, and Nano-Tech Non-Stick Coated Burners: Midnight Blue, Burnished Trim - LP

Top Quality Store on Google
quick specs
Sabbath Mode: No
Fingerprint Resistant: No
Cooktop: Sealed Burner
Drawer: Warming
Width: 35 7/8 Inch
Depth: 27 1/4 Inch
Height: 34 1/2 Inch
Number of Burners: 6
Primary Oven Capacity: 3.5 Cu. Ft.
Continuous Grates: Yes
Convection: Yes
Self-Cleaning: No
Steam Clean: No
Glide Rack(s): Yes
Temperature Probe: Yes
View more
Width:
36 Inch
30 Inch
36 Inch
40 Inch
48 Inch
60 Inch
Color:
Midnight Blue
Antique White
Black Gloss
Blue Grey
Burgundy
Custom Colors
Emerald Green
Graphite Matte
Midnight Blue
Stainless Steel
White
Trim Color:
Burnished
Brass
Burnished
Chrome
Copper
Fuel Type:
Dual Fuel
Induction
Not available with current selections
Dual Fuel
Fuel Subtype:
Liquid Propane
Liquid Propane
Natural Gas
Viewing Window:
Yes
Yes
No
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

36 Inch Wall Mount Range Hood
Ilve
36 Inch Wall Mount Range Hood
Product Information
Brand: Ilve
Series: Majestic II Collection
Model: UM09FDNS3MBBLP
Appearance
Fuel Type: Dual Fuel
Fuel Subtype: Liquid Propane
Style: Freestanding
Color: Midnight Blue
Trim Color: Burnished
Fingerprint Resistant: No
Stainless Steel Handle: No
Cooktop: Sealed Burner
Cooktop Control Type: Knobs
Oven Control Type: Digital
Viewing Window: Yes
Double Oven: No
Drawer: Warming
Clock: Yes
Downdraft Venting: No
Dimensions
Width: 35 7/8 Inch
Depth: 27 1/4 Inch
Height: 34 1/2 Inch
Interior Width: 26 3/8 Inch
Interior Depth: 14 3/8 Inch
Interior Height: 16 1/8 Inch
Shabbos Compliance
Sabbath Mode: No
Certification: None
Smart
WiFi: No
Smart Accessory Required: No
Capacity
Number of Burners: 6
Primary Oven Capacity: 3.5 Cu. Ft.
Burner
Simmer Burner: Yes
Power Burner: Yes
Burner 1 Output: 900 BTU/h - 20000 BTU/h (Double Ring Dual Burner)
Burner 2 Output: 2000 BTU/h - 10500 BTU/h (Large Burner)
Burner 3 Output: 2000 BTU/h - 10500 BTU/h (Griddle Large Burner)
Burner 4 Output: 2000 BTU/h - 10500 BTU/h (Large Burner)
Burner 5 Output: 1400 BTU/h - 7000 BTU/h (Griddle Small Burner)
Burner 6 Output: 1400 BTU/h - 7000 BTU/h (Small Burner)
Gas Cooktop Features
Continuous Grates: Yes
Dishwasher Safe Grates: Yes
Cooktop Accessory: Griddle
Grill: No
Griddle: Yes
French Top: No
Oven Features
Digital Temperature Display: Yes
Timer: Yes
Delay Bake: Yes
Fast Preheat: Yes
Convection: Yes
Proof Mode: No
Self-Cleaning: No
Self-Cleaning Type: High Heat
Steam Clean: No
Racks: 2
Glide Rack(s): Yes
Temperature Probe: Yes
Interior Oven Light: Yes
Removable Door: Yes
Air Fry: No
Sous Vide: No
Steam Assist: No
Technical Details
ADA Compliant: No
LP Conversion: Yes - Kit Included
Amps: 30
Voltage: 240 Volts
GTIN
UPC: 8051202188906
EAN: 7415977732589
Are you a Trade Pro? Join Now

Description

36 Inch Freestanding Dual Fuel Range with 6 Sealed Burners
The 36" Majestic freestanding range brings the ultimate cooking experience to your kitchen. The large European Convection oven gives you the power to experiment with your dishes and get even cooking, while the full-width dishwarming drawer gives the option to use the residual heat of the oven to keep cooked food warm or warm your dishes before serving. The cooktop features semi-sealed burners with various BTUs to cook whatever you want, however you want.

Specifications

Appearance
Range Type:
Freestanding
Fuel Type:
Dual Fuel, Liquid Propane
Viewing Window:
Yes
Number of Ovens:
Single
Digital Clock:
Yes
Timer:
Yes
Clean Type:
Self-Cleaning
Cooktop Features
Burner Type:
Sealed Burner
Control Type:
Knobs
Control Type Place:
Front
Burners Number:
6
Burner Type:
Brass
Cooktop Surface:
Deep Recessed
Griddle:
Included (depends on model)
Grill:
Not Included
Front Left Output:
20,000 BTU
Back Left Output:
10,500 BTU
Front Right Output:
7,000 BTU
Back Right Output:
10,500 BTU
Front Center:
7,000 BTU
Back Center:
10,500 BTU
Oven Features
Oven Type:
Convection Oven
Oven Control Type:
TFT Display
Oven Control Type Place:
Front
Number of Racks:
2
Broiler:
Yes
Interior Oven Light:
Yes
Accessories
Conversion Kit:
Included
Electrical Specifications
Voltage:
240V
Amperage:
18.1A
Frequency:
60Hz
Dimensions & Weight
Width:
35 7/8"
Depth:
27 2/8"
Height:
36"
Main Oven Interior Dimensions:
26 3/8" x 14 3/8" x 16 1/8"
Shipping Weight:
319.7 lbs.
Product Weight:
287.7 lbs.
Warranty
Parts & Labor:
2 Years Limited

Features

Majestic: Quality in the Details
  • A true kitchen centerpiece that is sure to demand attention, these exceptional bespoke ranges will complement any kitchen. The unique style of the Majestic Series stands out above the rest.
  • ILVE offers the ability to create a customized and individual look.
Brass Burner with Nanotechnological Coating
  • Brass is a noble material that guarantees excellent durability and the non-stick nanotechnological coating facilitates easy cleaning.
Dual Gas Burners
  • Efficient Gas Supply provides up to 20,000 BTU burner power.
The Majestic Oven is so Easy to Use
  • Simple 4.3" TFT full touch screen, with intuitive and straightforward graphics, provides easy commands for selecting thermostat, timer, and automatic programmer for cooking start and finish timers.
Accurate Electronic Temperature Control
  • Minimal temperature fluctuation for optimal cooking; temperature spikes, uniform cooking, energy saving. Temperature is adjustable from 85°F for perfect leavening.
Continuous Cast Iron Grates
  • Continuous cast-iron grates let you slide pots easily on and off heat, or from one burner to another.
Cool Door with Removable Triple Glass
  • Safe for children, perfectly insulated thanks to the three glass panes, easy to clean thanks to the new structure of the door.
Fast Pre-Heat
  • ILVE ovens maintain a European standard A+ energy rating, that's why ILVE ovens are equipped with a fast pre-heat mode to assist your oven to reach cooking temperature quicker and more efficiently.
Sealed Oven
  • ILVE freestanding cookers have a sealed oven cavity that traps moisture in the oven cavity ensuring that your meats remain moist and succulent! This also assists in less meat shrinkage whilst cooking.
Made in Italy
  • Italians are renowned the world over for their passion for design. Combined with exquisite craftsmanship this has produced some of the most desirable products and iconic brands.
  • That same passion and craftsmanship are what drove our founders Eugenio Illoti and Evelino Berno to create their first commercial cooker way back in 1952.
Sustainability
  • Featuring the highest green energy ratings in the industry, ILVE ranges maximize energy without compromising performance.
  • Similar to the Energy Star ratings in the United States, the European EU rating scored all ILVE ranges an A, the highest possible score for performance and energy consumption.

Oven Features

  • Total Capacity: 3.5 cu. ft.
  • Interior Width 24.8"
  • Interior Height 14.17"
  • Interior Depth 15.75"
  • 4.3 full touch display
  • Precise electronic temperature control
  • Door and drawer with soft-closing system
  • Cooking probe
  • Cold door with triple removable glass

To avoid damaging the Range we suggest the following:

  • Unpack the Range
  • Remove the pan support on the tops
  • Remove all the burners from the top
  • Remove the oven doors
  • Remove all the accessories inside the oven

So now that you have lightened the weight of the range, follow the directions below:

  • Remove the range from the pallet and place it on the floor
  • Overturn the range on the back side (please make sure that you have protection on the floor to protect the side and not damage it)
  • Install the feet
  • Set it upright
