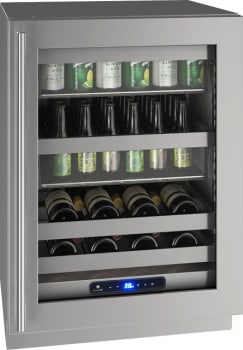

U-Line 5 Class UHBV524SG01A - Front View
U-Line 5 Class UHBV524SG01A - Front View
U-Line 5 Class UHBV524SG01A
U-Line 5 Class UHBV524SG01A
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
U-Line 5 Class UHBV524SG01A
Authorized
Dealer

U-Line 5 Class
UHBV524SG01A
24 Inch Beverage Center with LED Lighting, 19 Adjustable Positions, Holds Up to 14 Wine Bottles and 68 Bottles, Star-K Certified, and Stainless Steel Interior: Stainless Steel, Field Reversible

Top Quality Store on Google
quick specs
Sabbath Mode: Yes
Glass Door: Yes
Width: 23 5/8 Inch
Depth: 22 15/16 Inch
Height: 33 11/16 Inch
Bottle Capacity: 68 Bottles
Can Capacity: 111 Cans
Total Capacity: 5.2 Cu. Ft.
Wine Storage: Yes
Wine Racks: 2
Lock: No
LED Lighting: Yes
View more
Glass Door:
Yes
Yes
No
Not available with current selections
Color:
Stainless Steel
Panel Ready
Stainless Steel
Hinge Side:
Right
Right
Left
Not available with current selections
Field Reversible Doors:
Yes
Yes
No
Add $80.00
$4,809.00
MSRP: $5,289.00
You save $480.00
OR
FREE Delivery Available
Have questions? Chat with us!
Product Information
Brand: U-Line
Series: 5 Class
Model: UHBV524SG01A
Appearance
Type: Freestanding/Built In
Door Color: Stainless Steel
Undercounter: Yes
Hinge Side: Right
Field Reversible Doors: Yes
Glass Door: Yes
Dimensions
Width: 23 5/8 Inch
Depth: 22 15/16 Inch
Height: 33 11/16 Inch
Bottle Capacity: 68 Bottles
Can Capacity: 111 Cans
Total Capacity: 5.2 Cu. Ft.
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Features
Temperature Control Type: Touchpad
Wine Storage: Yes
Wine Racks: 2
Shelves: 2
Lock: No
Soft Close: Yes
LED Lighting: Yes
Technical Details
Energy Star Rated: No
Amps: 5
Voltage: 115 Volts
GTIN
UPC: 833790047159
EAN: 0833790047159
Are you a Trade Pro? Join Now

Description

24 Inch Full-Depth Beverage Center with 68-Bottle Capacity
Store a wide variety of drinks in a compact setting. The passive cooling system works to cool drinks with efficiency. Store up to 111 (12 oz) cans or 68 bottles, and 14 bottles of wine (750 mL). 5 Class units feature an industry leading variable speed compressor that delivers energy efficiency, rapid temperature response, and quiet operation.

Handle and panel are not included for Integrated (Panel Ready) models.

Specifications

Additional Specs
Capacity Bottle (12 oz):
68
Capacity Can (12 oz):
111
Capacity Volume (cu ft):
5.2
Capacity Wine Bottle (750 ml):
14
Control Type:
Digital Touch Pad
Refrigerant Type:
R600a
Temperature Range:
33°F - 70°F
Interior Lighting:
LED
Handle:
Not Included
Panel:
Not Included
Certifications
Sabbath Mode:
Yes
Star-K Certified:
Yes
Electrical Specifications
Amps:
15A
Volts:
115V
Frequency:
60 HZ
Warranty
Parts & Labor:
2 Years (Optional 3rd Year when unit is registered within 60 Days)
Sealed System (Parts Only):
5 Years
Registration:
http://www.u-line.com/u-lineregistration
Dimensions & Weights
Width:
17 3/4"
Depth:
22 15/16"
Height:
33 11/16"
Product Weight:
128 Lbs.
Shipping Weight:
128 Lbs.

Features

Industry Exclusive:
  • Full-depth lower interior maximizes storage options
Industry Leading:
  • Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
Stainless steel interior
  • Stainless steel cabinet, toe-kick, and accents
U-Adjust Interior: 19 adjustable positions
  • Two removable, full-extension Slide & Secure Bins
  • Two removable, full-extension wine racks
  • Volume of 5.2 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 111 cans (12 oz)
Temperature range: 33°F - 70°F
  • Convection cooling system provides a quick cool down and consistent temperature
Touch Pad Controls
  • Adjustable bright white or blue LED lighting
  • Digital touch pad control with blue LED display
Soft close door with articulating hinge
  • Stainless steel handle (7/8" diameter)
  • Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
Customization
  • Field reversible door is shipped right-hand hinged
  • Built-in or freestanding
  • Four adjustable leveling legs
