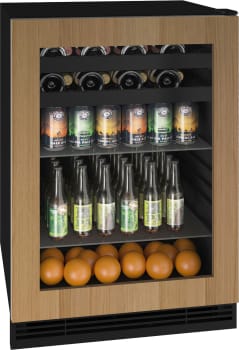

U-Line UHBV124IG01A - Front View
U-Line UHBV124IG01A - Open View
U-Line UHBV124IG01A - In-Use View
+3

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
U-Line UHBV124IG01A
Authorized
Dealer

U-Line UHBV124IG01A 24 Inch Beverage Center with 5.5 Cu. Ft. Capacity, Adjustable Glass Shelves, Wine Racks, LOW-E Argon Thermopane Glass Door, Convection Cooling, UL Certified, and Star K Certified: Integrated Frame Panel Ready

quick specs
Sabbath Mode: Yes
Width: 23 15/16 Inch
Depth: 22 1/2 Inch
Height: 34 1/8 Inch
Bottle Capacity: 85 Bottles
Can Capacity: 105 Cans
Total Capacity: 5.5 Cu. Ft.
Wine Storage: Yes
Wine Racks: 2
Lock: No
Fingerprint Resistant: No
LED Lighting: Yes
View more
Color: Integrated Frame Panel Ready
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!
Product Information
Brand: U-Line
Model: UHBV124IG01A
Appearance
Type: Freestanding/Built In
Size: Compact
Door Color: Panel Ready
Cabinet Color: Black
Undercounter: Yes
Hinge Side: Right
Field Reversible Doors: Yes
Dimensions
Width: 23 15/16 Inch
Depth: 22 1/2 Inch
Height: 34 1/8 Inch
Bottle Capacity: 85 Bottles
Can Capacity: 105 Cans
Total Capacity: 5.5 Cu. Ft.
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Features
Temperature Control Type: Touchpad
Wine Storage: Yes
Wine Racks: 2
Shelves: 2
Lock: No
Fingerprint Resistant: No
WiFi Connected: No
LED Lighting: Yes
Technical Details
ADA Compliant: No
Voltage: 115 Volts
GTIN
UPC: 833790052757
EAN: 0833790052757
Are you a Trade Pro? Join Now

Description

24 Inch Beverage Center with 5.5 Cu. Ft. Capacity
Chill and get quick access to your favorite drinks with this 5.5 cu. ft. U-Line Beverage Center. It can hold up to 16 bottles of wine, 85 bottles, or 105 cans, while the LOW-E argon dual thermopane glass door and bright white LED lighting make browsing contents simple. It has two three-quarter extension black wine racks and two adjustable tempered glass shelves for added durability and flexible storage.

Specifications

Specifications
Capacity Total Volume (cu. ft.):
5.5 cu. ft.
Capacity Bottle:
85
Capacity Can:
105
Capacity Wine Bottle:
16
Finish:
Integrated Frame
Energy Consumption Avg. Per Year:
310 kWh
Refrigerant Type:
R600a
Temperature Range:
34°F to 60°F
Field Reversible:
Yes
Weight & Dimensions
Shipping Weight:
120 lb.
Product Depth:
22 1/2"
Product Height:
34 1/8"
Product Width:
23 15/16"
Panel Height:
30 1/4"
Panel Thickness:
3/4"
Panel Type:
2 3/4"
Panel Width:
23 3/4"
Cabinet Cut-Out Width:
24 1/4"
Cabinet Cut-Out Depth:
24"
Cabinet Cut-Out Height:
34 1/8" - 35 1/8"
Electrical Specifications
Amps:
1.2 A
Voltage:
115
Hz:
60
Certifications
Energy Star (Glass):
No
Sabbath (Star K Certified):
Yes
UL Certified:
Yes
Warranty
Parts & Labor:
1 Year
Sealed System (Parts):
5 Years
Additional:
1 Year (parts & labor) warranty at no cost with product registration

Features

5.5 Cu. Ft. Capacity
  • Volume of 5.5 cu ft holds up to 16 wine bottles (750 ml), and 85 bottles (12 oz) or 105 cans (12 oz)
Adjustable Glass Shelves
  • Two adjustable tempered glass shelves
Wine Racks
  • Three-quarter extension, black wine racks are ideal for a range of bottle shapes and sizes for easy access
LOW-E Coated, Argon Gas Filled, Dual Thermopane Glass Door
  • Provides protection from harmful UV Light
Black Interior with LED Lighting
  • It illuminates stored drinks, so you can locate the ones you need quickly
Digital Touch Pad Controls
  • Set and change the internal temperature with ease
Convection Cooling System
  • Provides a quick cool down and consistent temperature
Extended Lower Interior
  • It maximizes storage options
Other Features
  • Field Reversible Door
  • Four Adjustable Leveling Legs
  • Temperature Range 34°F to 60°F
  • Black Metal Grille
Certifications
  • UL Certified
  • Sabbath (Star K Certified)
