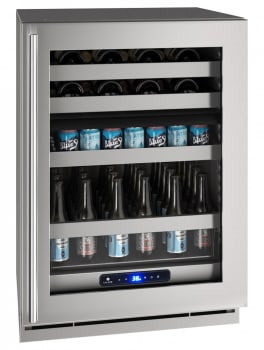

U-Line 5 Class UHBD524SG41A - 24" Beverage Center with Right Hand Hinge and Lock
U-Line 5 Class UHBD524SG41A - 24" Beverage Center with Right Hand Hinge and Lock
U-Line 5 Class UHBD524SG41A - Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)
U-Line 5 Class UHBD524SG41A - Volume of 5.1 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 72 cans (12 oz)
+2

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
U-Line 5 Class UHBD524SG41A
Authorized
Dealer

U-Line 5 Class
UHBD524SG41A
24 Inch Dual Zone Beverage Center with 5.1 Cu. Ft. Capacity, Convection Cooling, Stainless Steel Interior, Removable Full-Extension: Shelf, Slide & Secure Bin, Wine Racks, and Star-K Certified: Stainless Frame with Right Hand Hinge & Lock

Top Quality Store on Google
quick specs
Sabbath Mode: Yes
Glass Door: Yes
Width: 23 5/8 Inch
Depth: 22 15/16 Inch
Height: 33 11/16 Inch
Bottle Capacity: 68 Bottles
Can Capacity: 72 Cans
Total Capacity: 5.1 Cu. Ft.
Wine Storage: Yes
Wine Racks: 2
Lock: Yes
View more
Color: Stainless Frame with Right Hand Hinge & Lock
Integrated Solid Panel Ready
Integrated Solid Panel Ready
UHBD524IS01A
$5,359.00
Integrated Frame with Panel Ready Trim
Integrated Frame with Panel Ready Trim
UHBD524IG01A
$5,499.00
Stainless Frame with Field Reversible Hinge
Stainless Frame with Field Reversible Hinge
UHBD524SG01A
$5,599.00
Stainless Frame with Left Hand Hinge & Lock
Stainless Frame with Left Hand Hinge & Lock
UHBD524SG51A
$5,659.00
Stainless Frame with Right Hand Hinge & Lock
Stainless Frame with Right Hand Hinge & Lock
UHBD524SG41A
$5,659.00
$5,659.00
MSRP: $6,229.00
You save $570.00
OR
FREE Delivery Available
Have questions? Chat with us!

Recommended Accessories & Add-ons

Product Information
Brand: U-Line
Series: 5 Class
Model: UHBD524SG41A
Appearance
Type: Freestanding/Built In
Size: Compact
Door Color: Stainless Steel
Undercounter: Yes
Hinge Side: Right
Field Reversible Doors: No
Glass Door: Yes
Accepts Custom Panels: No
Dimensions
Width: 23 5/8 Inch
Depth: 22 15/16 Inch
Height: 33 11/16 Inch
Bottle Capacity: 68 Bottles
Can Capacity: 72 Cans
Total Capacity: 5.1 Cu. Ft.
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Features
Temperature Control Type: Touchpad
Wine Storage: Yes
Wine Racks: 2
Shelves: 1
Lock: Yes
WiFi Connected: No
Technical Details
Approved for Outdoor Use: No
Drain Required: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 833790047531
Are you a Trade Pro? Join Now

Description

24" Dual-Zone Beverage Center with 5.1 Cu. Ft. Capacity
This 24" Beverage Center is sure to be a great home bar companion with storage capacity for a combination of wine bottles, 12 oz cans, and bottles. The dual temperature zones are independently controlled so you can store wine and drinks of all kinds. The beverage center can be built-in to cabinetry or in freestanding applications. The convection cooling provides quick cool down and consistent temperatures utilizing a state of the art variable speed compressor with a temperature range of 34°F to 60°F. Quick access to the touch panel controls allow you to adjust internal temperatures at an instance. The industry exclusive full-depth lower interior allows for more storage and features full-extension bins, shelf, and wine racks. Door ships right hand hinged but is field reversible.

Peace of mind is ensured with 2-Year Parts & Labor Warranty, and a 5-Year Sealed Systems (Parts) Warranty.

Specifications

Product Specifications
Width:
23 5/8" / 600 mm
Height:
33 11/16" / 855 mm
Depth:
22 15/16" / 583 mm
Weight:
124lb
Refrigerator Specifications
Temperature Range(Upper):
38˚F - 65˚F
Temperature Range(Lower):
33˚F - 45˚F
Refrigerant:
R600a
Cooling:
Convection Cooling
Capacity:
5.1 Cu. Ft.
Capacity:
Wine Bottle
Capacity (Bottle):
68 (12 Oz)
Capacity (Can):
72 (12 Oz)
Electrical Specifications
Voltage:
115V
Frequency:
60Hz
Amps (Running):
1.2A
Energy Consumption: Avg. per Year:
220 kWh
Claims & Warranty
Sabbath Mode:
Star-K© Certified
Parts & Labor:
2-Year Warranty + Additional 1-Year Warranty with product registration
Sealed System (Parts):
5-Year Warranty
Registration:
http://www.u-line.com/u-lineregistration

Features

24 Inch Dual Zone Beverage Center
  • Two independently controlled temperature zones with a range of 38˚F - 65˚F (Upper) and 33˚F - 45˚F (Lower)
5.1 Cu. Ft. Capacity
  • Holds up to 72 (12 Oz) Cans, 14 (750ml) wine bottles, or 68 (12 Oz) Bottles
Convection Cooling
  • Uses a variable speed compressor to provide consistent temperatures and quick cooling
Stainless Steel Interior
  • Stainless steel interior is easy to clean and energy efficient
Removable Full-Extension: Shelf, Slide & Secure Bin, Wine Racks
  • (1)Slide & Secure Bin, (1) Stainless Steel Shelf, and (2) Wine Racks
Star-K Certified
  • Features Sabbath Mode that is Star-K Certified
