Whirlpool UDPS5118PP - 24 Inch Fully Integrated Dishwasher
Whirlpool UDPS5118PP - 24 Inch Fully Integrated Dishwasher
Whirlpool UDPS5118PP - 24 Inch Fully Integrated Dishwasher Nylon Coated Racks
Whirlpool UDPS5118PP - 24 Inch Fully Integrated Dishwasher 8 Place Settings
+6

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Whirlpool UDPS5118PP
Authorized
Dealer

Whirlpool
UDPS5118PP
18 Inch Fully Integrated Dishwasher with 8 Place Settings, 6 Wash Cycles, Nylon Coated Racks, Quick Wash, Heated Dry, ADA Compliant, ENERGY STAR®, and Star K

Top Quality Store on Google
quick specs
Width: 17 5/8 Inch
Depth: 22 Inch
Height: 34 1/2 Inch
Capacity: 8 Place Settings
Control Type: Digital
Adjustable Upper Rack: Yes
Stainless Steel Interior: Yes
WiFi: No
Cycles: 6
Delay Start: Yes
Dry Type: Heated
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
Warranty Terms: 1 year
?
View more
NO LONGER AVAILABLE
Try This Instead
Have questions? Chat with us!

Recommended Accessories & Add-ons

You Might Also Like

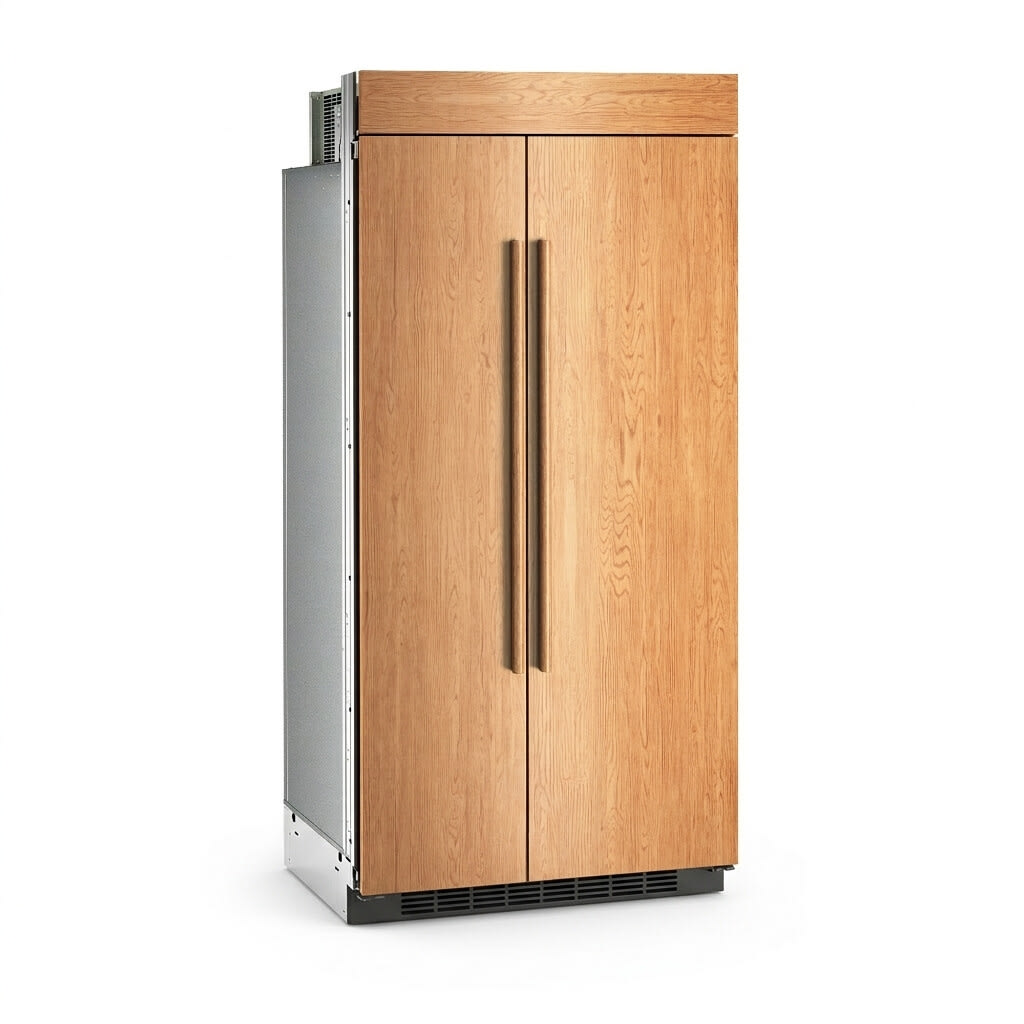

42 Inch Panel Ready Built-In Side-by-Side Refrigerator
KitchenAid
42 Inch Panel Ready Built-In Side-by-Side Refrigerator
36 Inch Counter-Depth French Door Refrigerator
KitchenAid
36 Inch Counter-Depth French Door Refrigerator
Product Information
Brand: Whirlpool
Model: UDPS5118PP
Warranty Terms: 1 year
?
Dimensions
Width: 17 5/8 Inch
Depth: 22 Inch
Height: 34 1/2 Inch
Cutout Width: 18 Inch
Cutout Depth: 22 Inch
Cutout Height: 34 1/2 Inch
Shabbos Compliance
Sabbath Mode: Yes
Certification: STAR-K
Capacity
Capacity: 8 Place Settings
Appearance
Type: Built In
Color: Panel Ready
Accepts Panels: Yes
Features
Control Type: Digital
Electronic Display: Yes
Control Style: Fully Integrated
Recessed Handles: No
Child Lock: No
Adjustable Upper Rack: Yes
Fold-Down Tines: Yes
Rack Material: Nylon
Cutlery Tray: No
Cup Shelves: Yes
Stemware Holder: No
Tall Tub: No
Stainless Steel Interior: Yes
Number of Spray Arms: 2
Rinse Aid Dispenser: Yes
Water Filtration: Yes
Water Heating: Yes
Fingerprint Resistant: No
Interior Light: No
Smart
WiFi: No
Wash Features
Cycles: 6
Options: 3
Delay Start: Yes
Dry Type: Heated
Hard Food Disposer: No
High Temperature Wash: Yes
NSF Certified Rinse: No
Quick Wash Setting: Yes
China/Crystal Setting: Yes
Sanitize Cycle: No
Heavy Duty Cycle: Yes
Rinse & Hold: No
Steam Wash: No
Half Load Option: No
Delicate Wash: Yes
Technical Details
Energy Star Rated: Yes
CEE Rating: Tier I
ADA Compliant: Yes
Approved for Outdoor Use: No
Amps: 15
Voltage: 120 Volts
GTIN
UPC: 883049682846
Are you a Trade Pro? Join Now

Description

18 Inch Fully Integrated Dishwasher with 8 Place Settings
This small dishwasher delivers mealtime cleanup fit for smaller spaces. The Glass Cycle is perfect for lightly soiled loads, such as glasses, crystal, and fine China. Add on a dishwasher panel kit to match the look of your compact dishwasher to the rest of your kitchen. This small dishwasher is ADA Compliant.

Specifications

Overview
Dishwasher Type:
Built-In
Drying System Type:
Recessed Heating Element
Number of Place Settings:
8
Number of Wash Levels:
4
Number of Washarms:
2
Number of Racks:
2
Rack Material:
Nylon
Tub Material:
Stainless Steel
True Hold Door:
Yes
Water Filtration:
Yes
Wash System:
Filter
Handle Material:
Metal
Handle Type:
Towel Bar
Dispensers:
Detergent and Rinse Aid
Built-In Water Softener:
No
Features
Dishwasher Cycle Selection:
Glass, Heavy, Light/China, Normal, Quick Wash, Rinse
Dishwasher Option Selections:
1-24 Hour Delay, Heated Dry, Hi Temp Wash
Rinse Aid Dispenser Level Indicator:
Yes
Sensor:
Yes
Sound Package:
Quiet Partner™
Interior Light:
No
Controls
Automatic Temperature Controls:
Yes
Control Location:
Top, Hidden
Control Type:
Push Button
End of Cycle Signal:
Yes
Status Light:
White
Rack Details
Lower Rack Cushion-Tip Tines:
Yes
Lower Rack Extras:
No
Lower Rack Fold-Down Tines:
No
Lower Rack Style:
Extended
Second Level Rack Extras:
1-Fold Down Wire Cup Shelf
Second Level Rack Adjustable:
Yes
Second Level Rack Cushion-Tip Tines:
Yes
Second Level Rack Fold-Down Tines:
1 Fold Down
Third Level Rack Adjustable:
N/A
Third Level Rack Removable:
No
Silverware Basket Details
Silverware Basket Location:
Bottom Rack
Silverware Basket Covers:
Yes
Dimensions
Cutout Height:
34 1/2"
Cutout Width:
18"
Depth Closed Excluding Handles:
22"
Depth With Door Open 90 Degree:
44 1/2"
Depth Closed Including Handles:
22 7/16"
Cutout Depth:
22"
Depth:
22"
Height:
34 1/2"
Width:
17 5/8"
Certifications
CEE Tier Rating:
Tier I
CUL:
Yes
ADA Compliant:
Yes
Energy Star Qualified:
ENERGY STAR® Qualified
Star K Certified:
Kosher Consumer Friendly

Features

8 Place Settings
  • Fit 8 place settings in this compact dishwasher that frees up space in the kitchen.
6 Wash Cycles
  • Takes cleaning to a new level with the six wash cycles to choose from: Glass, Heavy, Light/China, Normal, Quick Wash, and Rinse.
Adjustable Upper Rack
  • Manually raise or lower the upper rack two inches to better fit tall items.
Quick Wash
  • Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
Heated Dry Option
  • Add heat to dry dishes better.
1-24 Hour Delay Start
  • Delay the start of the cycle up to 24 hours to make sure dishes are clean and dry when you need them.
High Temperature Wash Option
  • Get a more thorough clean with a high-temperature wash.
Glass Cycle
  • Give glassware the right clean with this cycle.
Normal Cycle
  • Use this cycle for normal amounts of food soil.
Heavy Cycle
  • Take care of hard-to-clean dishes by adding extra time with the Heavy cycle.
Dual Spray Arm
  • Get a complete clean with two spray arms: one in the bottom and one in the middle of the dishwasher.
Stainless Steel Tub
  • The stainless steel tub promotes drying by retaining heat from wash and rinse cycles. Plus, it cools faster than the dishes so moisture can condense on the interior walls and not the dishes.
Additional Features
  • Nylon Coated Racks
  • Rinse Aid Dispenser Level Indicator
  • Panel Ready Design
  • Kosher Consumer Friendly
  • ADA Compliant
  • ENERGY STAR® Qualified
  • Star K Certified
