Viking Tuscany Series TVHW6630PW - Wall Hood
Viking Tuscany Series TVHW6630PW - Wall Hood

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
Viking Tuscany Series TVHW6630PW
Authorized
Dealer

Viking Tuscany Series
TVHW6630PW
66 Inch Wall Mount Hood with 3-Speeds, 1200 CFM, LED Lights, Dishwasher Safe Baffle Filters and Flexible Installation: Pure White

Top Quality Store on Google
quick specs
Style: Standard Hood
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Width: 66 Inch
Depth: 24 Inch
Height: 30 Inch
WiFi: No
CFM: 1,200 CFM
Duct Size: 10 Inch
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Lights: LED
Warranty Terms: 2 years
?
View more
Color: Pure White
Antique Bronze
Antique Bronze
TVHW6630AN
$11,799.00
Blush
Blush
TVHW6630BH
$11,799.00
Cast Black
Cast Black
TVHW6630CS
$11,799.00
Daffodil
Daffodil
TVHW6630DA
$11,799.00
Damascus Grey
Damascus Grey
TVHW6630DG
$11,799.00
Eucalyptus
Eucalyptus
TVHW6630EU
$11,799.00
Golden Hour
Golden Hour
TVHW6630GH
$11,799.00
Ivy
Ivy
TVHW6630IV
$11,799.00
Martini
Martini
TVHW6630MA
$11,799.00
Nantucket
Nantucket
TVHW6630NA
$11,799.00
November Sky
November Sky
TVHW6630NS
$11,799.00
Onyx
Onyx
TVHW6630ON
$11,799.00
Pure White
Pure White
TVHW6630PW
$11,799.00
Slate Blue
Slate Blue
TVHW6630SB
$11,799.00
Spiced Cider
Spiced Cider
TVHW6630SC
$11,799.00
Splash
Splash
TVHW6630SP
$11,799.00
Squall
Squall
TVHW6630SQ
$11,799.00
Valentine
Valentine
TVHW6630VA
$11,799.00
$11,799.00
MSRP: $12,629.00
You save $830.00
OR
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
Have questions? Chat with us!

You Might Also Like

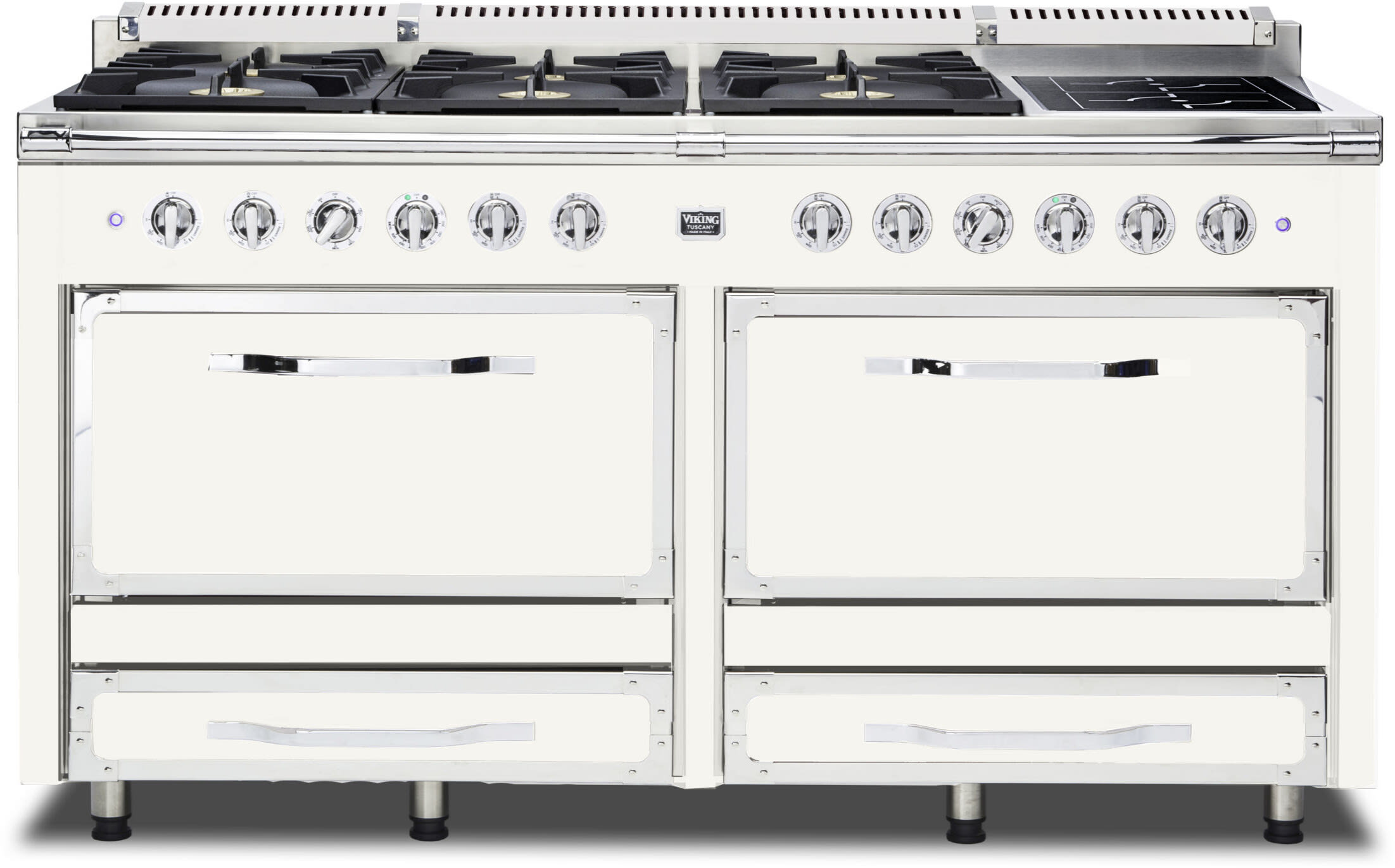

66 Inch Freestanding Dual Fuel Range
Viking
66 Inch Freestanding Dual Fuel Range
$33,199.00

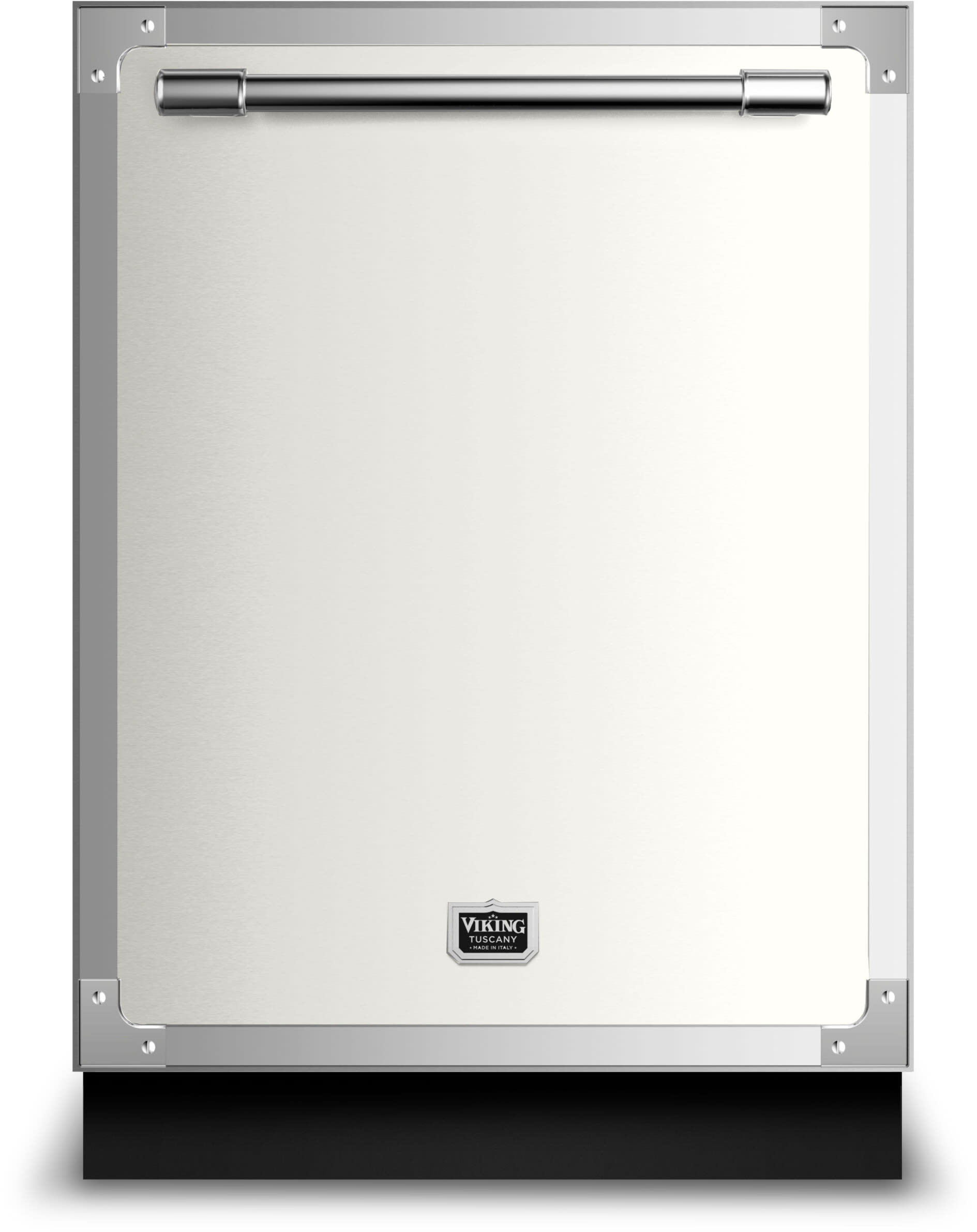

24 Inch Tuscany Dishwasher Door Panel Kit: Pure White
Viking
24 Inch Tuscany Dishwasher Door Panel Kit: Pure White
$1,159.00
Product Information
Brand: Viking
Series: Tuscany Series
Model: TVHW6630PW
Warranty Terms: 2 years
?
Appearance
Style: Standard Hood
Type: Hood
Color: Pure White
Trim Color: Polished Chrome
Glass Canopy: No
Mounting Type: Wall Mount
Venting Type: Ducted
Blower Included: Yes
Blower Type: Internal
Dimensions
Width: 66 Inch
Depth: 24 Inch
Height: 30 Inch
Smart
WiFi: No
Capacity
CFM: 1,200 CFM
Duct Size: 10 Inch
Features
Number of Fan Speeds: 3
Filter Type: Baffle
Dishwasher Safe Filters: Yes
Lights: LED
Technical Details
ADA Compliant: No
Energy Star Rated: No
Amps: 15
Voltage: 120 Volts
Approved for Outdoor Use: No
GTIN
UPC: 767459022662
Are you a Trade Pro? Join Now

Description

Tuscany Series - 66"W x 30"H Wall Mount Hood with 3-Speeds & 1200 CFM Blower
Bring Italian-inspired elegance and professional-grade performance to your kitchen with the Viking Tuscany Wall Hood. With powerful 1200 CFM ventilation and three adjustable speeds, it effortlessly clears smoke and odors while bright LED lights illuminate your cooking surface. Dishwasher-safe baffle filters ensure easy maintenance, and flexible installation options make it a seamless fit in any luxury kitchen.

Specifications

Product Specifications
Width:
66"
Height:
30"
Depth:
24"
Blower:
1200 CFM, 3-speed
Blower Collar Size:
10"
Lighting:
4 LED lights, 3000K natural spectrum
Lighting Wattage:
6 watts per bulb
Controls:
Electronic touch controls for lights and blower
Filters:
Dishwasher-safe commercial-style baffle filters
Filter Features:
Detergent inlet holes & grease exit holes for superior cleaning
Installation:
Mounting bars (top & bottom), open top/back design for centered or offset ducting
Electrical Requirements:
5.4 Amps, 120V
Energy Efficiency:
LED lights & energy-efficient motor
Shipping Weight:
240 lbs.

Features

Quiet Operation
  • Large 3-speed blower runs at lower RPMs to significantly reduce sound levels while maintaining powerful performance.
Natural LED Lighting
  • Bright LED lighting with a 3000K color spectrum delivers natural-looking illumination. The 36” hood includes 2 lights, the 48” hood includes 3, and the 66” hood includes 4.
Ease of Operation
  • Electronic touch controls allow effortless adjustment of the 3-speed blower and LED lights.
Easy Cleaning
  • Commercial-style baffle filters are dishwasher safe and feature detergent inlet and grease exit holes for superior cleaning performance.
Flexible Installation
  • Mounting bars at both the top and bottom allow secure attachment to stud supports. Open top and back design accommodates centered or offset duct and rear discharge configurations.
Energy Efficient Operation
  • LED bulbs draw only 6 watts each, while energy-efficient motors operate on just 2.5 amps for reduced power consumption.
