Description

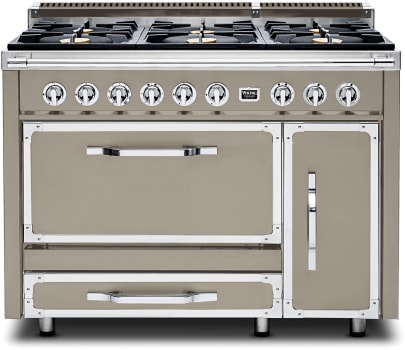

48 Inch Freestanding Dual Fuel Range with 6 Sealed Burners
The Viking TVDR4816B is a top-of-the-line dual fuel range that seamlessly blends professional-grade performance with sophisticated design. This 48-inch range features six powerful sealed gas burners, offering precise control for all your culinary needs. The spacious electric oven ensures even heat distribution, perfect for baking, roasting, and more. With its durable stainless steel construction, polished chrome knobs, and a range of advanced cooking functions, the Viking TVDR4816B is the ultimate choice for those who demand excellence in both form and function in their kitchen.
Specifications
Details
Fuel Subtype:
Natural Gas
Fingerprint Resistant:
No
Stainless Steel Handle:
Yes
Cooktop Control Type:
Knobs
Burner Output
Burner 1:
20,500 BTU (front left)
Burner 2:
8,500 BTU (rear left)
Burner 3:
20,500 BTU (center front)
Burner 4:
13,500 BTU (center rear)
Burner 5:
20,500 BTU (front right)
Burner 6:
13,500 BTU (rear right)
Oven Features
Oven Volume Left:
3.8 cu. ft.
Oven Volume Right:
2.4 cu. ft.
Digital Temperature Display:
No
Broiler Element Location:
Top
Broiler Pan Included:
Yes
Electrical Requirements
Maximum Amp Usage:
240V - 28.5 amps / 208V - 24.4 amps
Surface Ratings:
See installation guide for more information
Dimensions & Weight
Overall Depth:
26 3/4" (To end of side panel)
Overall Height:
35 7/8" min to 36 5/8" max
Left Oven Interior Width:
25 3/4"
Left Oven Interior Depth:
19 5/8"
Left Oven Interior Height:
13"
Right Oven Interior Width:
11 5/8"
Right Oven Interior Depth:
19 5/8"
Right Oven Interior Height:
18 1/4"
Approximate Shipping Weight:
470 - 510 lbs
Warranty
2-Year Full:
Complete product
90-Day Full:
Cosmetic parts such as glass, painted items, and decorative items
5-Year Limited:
Gas burners, electric elements
Features
6 Sealed Burners
- Six sealed gas burners offer powerful and precise heat, ideal for everything from simmering to high-heat cooking.
6.2 cu. ft. Total Capacity
- A spacious 6.2 cubic foot oven accommodates large dishes and multiple trays, perfect for big family meals or entertaining.
- Large Left Oven – 3.8 cu. ft. electric oven / Right Convection Bake Oven – 2.4 cu. ft. oven.
Storage Drawer
- Full-width storage drawer, with soft-close glides, provides space and convenient storage for baking pans.
8 Cooking Functions
- Eight versatile cooking functions, including Bake, Convection Bake, Tru Convection, Low Broil, High Broil, Convection Broil, Defrost, and Proof, give you the flexibility to prepare a wide range of dishes.
High-Performance Burners
- Provide fast boil times and a gentle simmer with 20,000 BTU – 8,500 BTU high burner ratings.
Electronic Single Spark Ignition
- Electronic single-point spark ignition/re-ignition on all burners ensures re-ignition should the burners extinguish any time while cooking.
Stainless Steel Interior
- A durable Stainless Steel oven interior with six rack positions and two oven racks, including one TruGlide Rack.
Stainless Steel Burner Pan
- The stainless steel burner pan resists stains and spills, making cleanup after cooking a breeze.
3 Oven Racks
- Three adjustable oven racks provide ample space and flexibility, allowing you to cook multiple dishes at once or accommodate large cookware.
Two Oven Lights
- Dual interior lights illuminate the oven, giving you a clear view of your dishes as they cook, so you can monitor progress without opening the door.
Side Swing Oven Door
- The side swing oven door offers easy access to the oven interior, making it more convenient to load and unload dishes.
Porcelain-Coated Cast Iron Burner Grates
- Durable cast iron burner grates coated in porcelain offer exceptional heat retention and are easy to clean, combining strength with effortless maintenance.
Polished Chrome Die-Cast Knobs
- Sleek, polished chrome die-cast knobs provide precise control and a sophisticated touch to your range, ensuring durability and ease of use.
