True Residential TUBADA24RSAO - 24" Overlay Panel Ready Door Beverage Center
True Residential TUBADA24RSAO - 24" Overlay Panel Ready Door Beverage Center

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
True Residential TUBADA24RSAO
Authorized
Dealer

True Residential
TUBADA24RSAO
24 Inch Panel Ready Built-In Undercounter Beverage Center with 12 Total Bottle Capacity, 5 cu. ft. Capacity, 2 Adjustable Wire Shelves, White LED Lighting, Concealed Digital Temperature Control, ADA Compliant, and NSF/ANSI Standard

Top Quality Store on Google
quick specs
Sabbath Mode: No
Glass Door: No
Width: 23 7/8 Inch
Depth: 23 5/32 Inch
Height: 31 7/8 Inch
Bottle Capacity: 12 Bottles
Total Capacity: 5 Cu. Ft.
Temperature Zones: Single
Wine Storage: Yes
Wine Racks: 2
Lock: Yes
Fingerprint Resistant: No
LED Lighting: Yes
View more
Hinge: Right Hinge
Left Hinge
Left Hinge
TUBADA24LSAO
Right Hinge
Right Hinge
TUBADA24RSAO
To order or learn more please call us at:
800-570-3355
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
Have questions? Chat with us!

You Might Also Like

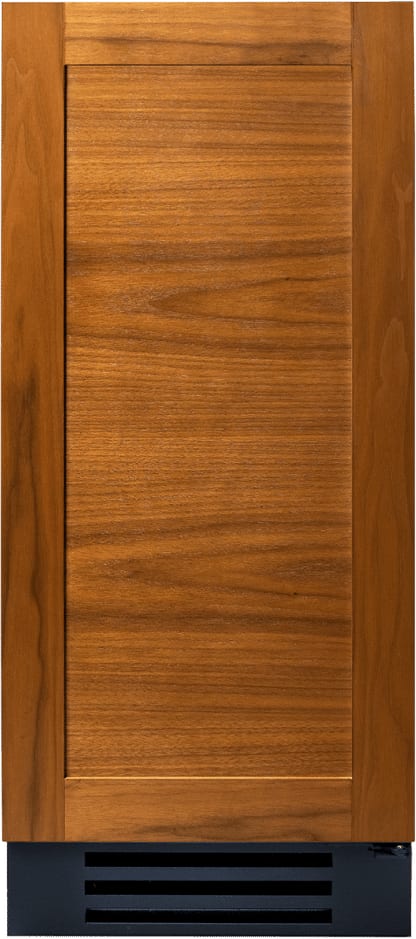

15 Inch Undercounter Single Zone Wine Cooler
True Residential
15 Inch Undercounter Single Zone Wine Cooler
24 Inch Panel Ready Counter-Depth Built-In Undercounter Refrigerator
True Residential
24 Inch Panel Ready Counter-Depth Built-In Undercounter Refrigerator
15 Inch Built-In Undercounter Clear Ice Maker
True Residential
15 Inch Built-In Undercounter Clear Ice Maker
Product Information
Brand: True Residential
Model: TUBADA24RSAO
Appearance
Type: Built In
Size: Compact
Door Color: Panel Ready
Undercounter: Yes
Hinge Side: Right
Field Reversible Doors: Yes
Glass Door: No
Accepts Custom Panels: Yes
Dimensions
Width: 23 7/8 Inch
Depth: 23 5/32 Inch
Height: 31 7/8 Inch
Bottle Capacity: 12 Bottles
Total Capacity: 5 Cu. Ft.
Shabbos Compliance
Sabbath Mode: No
Features
Temperature Zones: Single
Temperature Control Type: Digital
Wine Storage: Yes
Wine Racks: 2
Shelves: 2
Lock: Yes
Fingerprint Resistant: No
Soft Close: Yes
WiFi Connected: No
LED Lighting: Yes
Technical Details
Energy Star Rated: No
ADA Compliant: Yes
Approved For Commercial Use: Yes
Approved for Outdoor Use: Yes
Drain Required: No
Voltage: 115 Volts
Are you a Trade Pro? Join Now

Description

24 Inch Panel Ready Built-In Undercounter Beverage Center with 12 Total Bottle Capacity
The True Residential ADA Height 24" Overlay Panel Right-Hinge Undercounter Beverage Center is the perfect solution for those seeking a high-quality, customizable refrigeration option for their home or outdoor space. With its adaptable design, this beverage center seamlessly fits under ADA-compliant countertops, offering both style and functionality. Its sleek black aluminum interior and powder-coated steel exterior make it an attractive addition to any setting. Whether you're storing your favorite wines, beverages, or packaged food, this versatile unit ensures optimal temperature control and energy efficiency, making it an excellent choice for indoor and outdoor use.

Specifications

Overview
Capacity:
12 Bottles (5 cu. ft.)
Number of Wine Racks:
1 Pull-Out; 1 Floor Cradle
LED Lighting:
Yes
Outdoor Use:
Yes
Panel Ready:
Yes
Lock:
Yes (Stainless Steel Models Only)
Temperature Range:
33°-41°F (0.5°-5°C)
Exterior:
Black Powder Coated Steel
Interior:
Sleek Black Aluminum
Certification
ADA Compliant:
Yes
UL Rated for Outdoor Use:
Yes
Electrical Specifications
Amps:
0.8A
Volts:
115V
Frequency:
60Hz
Annual Energy Consumption (kWh):
275
Power Cord Length:
10Ft.
Dimensions & Weight
Width:
23 7/8"
Depth:
23 15/18"
Height:
31 7/8"
Cutout Width:
24"
Cutout Depth:
24"
Cutout Height:
32
Weight:
145 Lbs
Standard Overlay Panel
Width:
23 5/8"
Depth:
3/4"
Height:
28"

Features

12 Total Bottle Capacity
  • Holds up to 12 bottles for convenient beverage storage in compact spaces.
5 cu. ft. Capacity
  • Provides ample interior room while maintaining an ADA-height undercounter design.
2 Adjustable Wire Shelves
  • Shelves can be repositioned to accommodate different bottle and can sizes.
White LED Lighting
  • Bright, energy-efficient interior lighting makes contents easy to see.
Concealed Digital Temperature Control
  • Hidden controls maintain a clean exterior look while allowing precise temperature adjustment.
ADA Compliant
  • Designed to meet ADA height requirements for accessible installations.
NSF/ANSI Standard
  • Certified to meet sanitation and safety standards for commercial-style performance.
Articulating, Soft Close Hinge
  • Allows fully integrated, flexible installations.
Field-Reversible Hinge
  • Allows for flexibility in the field.

Additional Features

  • Sleek black aluminum interior
  • Black powder-coated steel exterior
  • Forced air refrigeration system which maintains 33°– 41°F (0.5°– 5°C)
  • Environmentally friendly R600a refrigerant
  • UL-rated for outdoor use
  • Unit comes standard with 4 adjustable leg levelers
