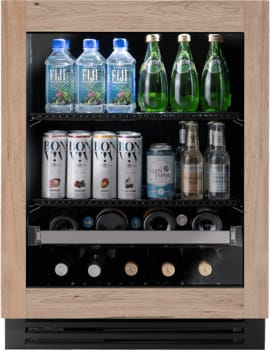

True Residential TUBADA24LGAO - ADA Height 24" Overlay Glass Door Beverage Center
True Residential TUBADA24LGAO - ADA Height 24" Overlay Glass Door Beverage Center
True Residential TUBADA24LGAO - Lifestyle View
True Residential TUBADA24LGAO - Lifestyle View
+1

Image Disclaimer

Image Disclaimer
Images shown may depict a product feature or design without fully reflecting the product overall. Please refer to product details and specifications when making a final selection for purchase.
True Residential TUBADA24LGAO
Authorized
Dealer

True Residential
TUBADA24LGAO
24 Inch Panel Ready Built-In Undercounter Beverage Center with 5.0 cu. ft. Capacity, 2 Wire Shelves, 1 Wire Rack, 1 Floor Wine Cradle, LED Lighting, Digital Control, Temperature Range 33˚- 41˚F, UL Rated, ADA Compliant, and ENERGY STAR®

Top Quality Store on Google
quick specs
Sabbath Mode: No
Glass Door: Yes
Width: 23 7/8 Inch
Depth: 23 5/32 Inch
Height: 31 7/8 Inch
Total Capacity: 5 Cu. Ft.
Wine Storage: Yes
Wine Racks: 1
Lock: Optional
Fingerprint Resistant: No
LED Lighting: Yes
View more
To order or learn more please call us at:
800-570-3355
Special Order
Special Order
Special Order items cannot be cancelled - all sales are final and non-refundable. Please note that you will be charged at the time the order is placed. For more information please contact a sales specialist at 800-570-3355.
FREE Delivery Available
Have questions? Chat with us!
Product Information
Brand: True Residential
Model: TUBADA24LGAO
Appearance
Type: Built In
Size: Compact
Door Color: Panel Ready
Undercounter: Yes
Hinge Side: Left
Field Reversible Doors: Yes
Glass Door: Yes
Accepts Custom Panels: Yes
Dimensions
Width: 23 7/8 Inch
Depth: 23 5/32 Inch
Height: 31 7/8 Inch
Total Capacity: 5 Cu. Ft.
Shabbos Compliance
Sabbath Mode: No
Features
Temperature Control Type: Digital
Wine Storage: Yes
Wine Racks: 1
Shelves: 2
Defrost: Automatic
Lock: Optional
Fingerprint Resistant: No
Soft Close: Yes
WiFi Connected: No
LED Lighting: Yes
Technical Details
Energy Star Rated: Yes
ADA Compliant: Yes
Approved For Commercial Use: No
Approved for Outdoor Use: Yes
Drain Required: No
Voltage: 115 Volts
Are you a Trade Pro? Join Now

Description

24 Inch Panel Ready Built-In Undercounter Beverage Center with 5.0 cu. ft. Capacity
The exceptional craftsmanship of True Residential is evident in the precise attention to detail and styling of the True Beverage Center. With True's exclusive balanced refrigeration system, you can set the temperature as low as 33°F, keeping your drinks icy cold. This exclusive technology also enables rapid cooldown of beverages and maintains them at the perfect temperature so they're ready when you are.

Specifications

Additional Specs
Finish:
Overlay glass door
Hinge:
Left
Capacity:
5.0 cu. ft.
Temperature Range:
33˚- 41˚F (0.5°- 5°C)
Number of Shelves:
2
Number of Racks:
1
Floor Wine Cradle:
1
Door Lock:
Optional
UL Rated:
Yes
ADA Compliant:
Yes
ENERGY STAR®:
Yes
Electrical Specifications
Voltage:
115/60/1
Amps:
0.8
Annual Energy Consumption (kWh):
275
Power Cord Length (ft.):
10
Product Dimensions
Width:
23 7/8"
Depth:
23 5/32"
Height:
31 7/8"
Cutout Width:
24"
Cutout Depth:
24"
Cutout Height:
32"
Wire Shelves Dimensions
Width:
19 5/8"
Length:
17"
Wire Rack Dimensions
Width:
17 9/16"
Length:
16 7/8"
Warranty
Parts & Labor:
2 year full
Parts & Labor:
5 year sealed system

Features

32" Height
  • Allows for installation under ADA-compliant countertop.
Articulating, Soft Close Hinge
  • Allows fully integrated, flexible installations.
Field-Reversible Hinge
  • Allows for flexibility in the field.
2 Adjustable Wire Shelves
  • Two adjustable heavy-duty PVC-coated black wire shelves allow for adjustable organization options.
1 Wire Rack
  • One pull-out PVC-coated wire wine rack for storage of 7 bottles.
1 Floor Wine Cradle
  • For storage of 5 bottles.
Temperature Range
  • Forced air refrigeration system which maintains 33°- 41°F (0.5°- 5°C)
Concealed Digital Temperature Controls
  • Allows for precise temperature management.
LED Lighting
  • White LED lighting illuminates your product.
UL-Rated
  • For outdoor use.
NSF/ANSI Standard 7 Compliant
  • For packaged food products.

Additional Features

  • 5.0 cu. ft. Capacity
  • Sleek Black Aluminum Interior
  • Black Powder Coated Steel Exterior
  • Environmentally Friendly R600a Refrigerant
  • Unit comes standard with 4 adjustable leg levelers
  • ENERGY STAR®
